NOTES:

Part #	Number on image	Usage Notes
405-200-661	6	For offset mowers.
405-200-664	6	For centre mounted mowers.
402-464-061	56	Replaced with Loctite 635 (green), refer to ECN 1665 (July 2011). Applies from serial numbers 705-135-001-0035, 705-155-001-0056, 705-155-002-0047, 705-185-001-0038 and 705-185-002-0035.
406-340-260	61	Select 20hp or 40hp driveshaft depending on tractor.

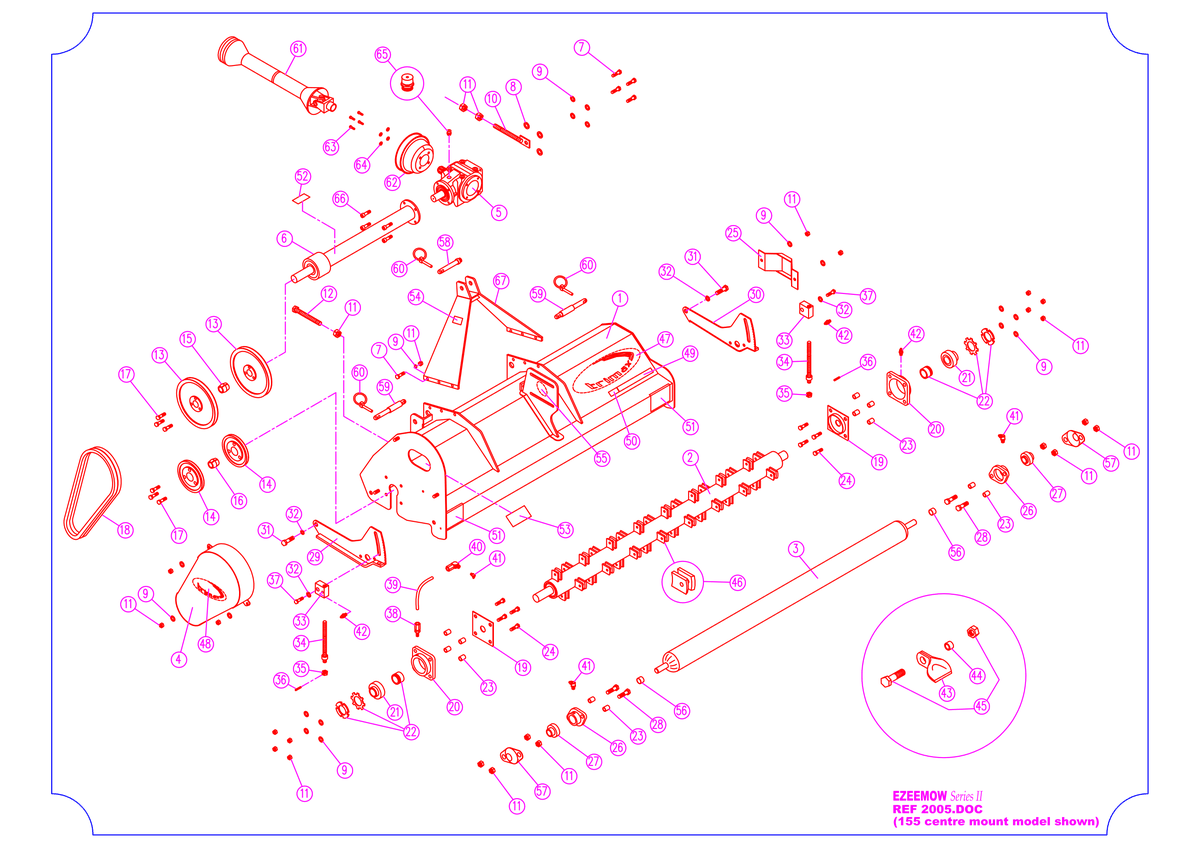

705 - Ezeemow S2 155 - Complete Assembly

Ezeemow S2 155

Grouped product items
No.	Product Name	Price
3	Roller Weldment 155 414-152-302 More Info >	$460.10
4	Guard 410-152-740 More Info >	$366.06
5	Gearbox 405-200-650 More Info >	$737.29
6	Extension Assembly i See notes section for usage notes on this part 405-200-661 More Info >	$684.10
6	Extension Assembly i See notes section for usage notes on this part 405-200-664 More Info >	$768.58
7	Bolt 301-212-353 More Info >	$2.71
8	Washer - Heavy Flat 308-120-063 More Info >	$1.84
9	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	$0.45
10	Tension Adjuster 403-154-230 More Info >	$14.56
11	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	$0.57
13	Pulley 403-360-650 More Info >	$120.63
14	Pulley 403-360-300 More Info >	$80.25
15	Bush 402-060-150 More Info >	$25.85
16	Bush 402-060-210 More Info >	$31.79
17	Bolt 301-208-403 More Info >	$1.28
18	Vee Belt 404-040-470 More Info >	$31.00
19	Rotor Shield 410-152-290 More Info >	$58.85
20	Bearing Housing 401-021-000 More Info >	$46.44
22	Tapered Locking Assembly 401-021-150 More Info >	$32.21
23	Sleeve 402-480-740 More Info >	$5.02
24	Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403 More Info >	$2.93
25	Protector 410-152-480 More Info >	$85.88
26	Roller Bearing Assembly - FL205 UK205-16 1" x 52 x 35 - 401-150-300 More Info >	$45.00
28	Bolt 301-212-453 More Info >	$3.04
29	Trailing Arm Weldment LH 412-152-461 More Info >	$179.00
30	Trailing Arm Weldment RH 412-152-462 More Info >	$179.00
31	Bolt 301-216-303 More Info >	$4.03
32	Washer - Spring 308-160-043 More Info >	$0.67
33	Height Adjuster Block 412-330-273 More Info >	$86.67
34	Height Adjuster Rod Assy - c/w Collar/Pin EM2/FD2 412-152-420 More Info >	$98.44
36	Roll Pin 202-447-980 More Info >	$5.14
37	Bolt 301-216-553 More Info >	$6.42
38	Fitting - Grease Line 450-152-892 More Info >	$28.16
39	Grease Line - 240mm 903-007-031 More Info >	$9.42
40	Fitting - Grease Line 450-152-822 More Info >	$44.27
41	Grease Nipple 208-442-620 More Info >	$4.47
42	Grease Nipple - 1/4" Short 208-442-600 More Info >	$3.61
43	Flail 411-160-100 More Info >	$21.50
44	Flail Mounting Bush - 10mm - Trimax Specification - 402-060-750 More Info >	$5.40
45	Bolt - Hex Head M10 x 40 - Trimax Specification - 305-210-403 More Info >	$2.50
46	Flail Lug 411-240-000 More Info >	$5.89
51	Decal - Safety - Blade Warning / Thrown Objects 424-100-950 More Info >	$5.63
52	Decal - Instruction - PTO Speed 540RPM 424-100-900 More Info >	$7.89
53	Decal - Instruction - Wash Warning Large 424-101-100 More Info >	$3.61
54	Decal - Branding - CE 424-101-170 More Info >	$5.56
55	Serial Plate - Three-point Linkage Mowers Small NZ 426-442-800 More Info >	$10.19
56	Sleeve i See notes section for usage notes on this part 402-464-061 More Info >	$17.73
57	Cap - Bearing Protector Cap - FL205 Housing 410-464-071 More Info >	$34.50
58	Pin - Linkage - Top Link 419-301-150 More Info >	$14.76
59	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	$29.29
60	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	$2.76
61	Driveshaft i See notes section for usage notes on this part 406-340-260 More Info >	$388.58
62	Cone - PTO Shield w/ Cut Out 410-440-401 More Info >	$44.94
63	Bolt 301-208-123 More Info >	Price on Request
64	Washer - Flat 308-080-013 More Info >	$0.05
65	Gearbox - Breather 405-207-207 More Info >	$34.36
67	Headstock Weldment - Bolt On 413-151-000 More Info >	$345.50
