NOTES:

Part #	Number on image	Usage Notes
402-061-050	7	Early type Needle roller bearings and Nylon bushes are now directly replaced with a Greasable Hardened Steel Bush.
412-320-112	11	For serial numbers PCD352 and earlier, use [412-320-110] Wing Skid 160mm.
414-320-015	18	For serial numbers PCD192 to PCD352, use [414-320-009] 5" Front Roller. For serial numbers PCD191 and earlier, use [414-320-007] 5" Front Roller.
414-320-014	19	For serial numbers PCD352 and earlier, use [414-320-008] 5" Rear Roller.
410-330-373	38	For serial numbers PCD300 to STD036, use [410-330-373] Left Body Cover. For serial numbers PCD192 to PCD299, use [410-330-373] Left Body Cover. For serial numbers PCD191 and earlier, use [410-330-363] Left Body Cover.
410-330-374	39	For serial numbers PCD300 to STD036, use [410-330-374] Right Body Cover. For serial numbers PCD192 to PCD299, use [410-330-374] Right Body Cover. For serial numbers PCD191 and earlier, use [410-330-364] Right Body Cover.
410-330-383	40	For serial numbers PCD300 to STD036, use [410-330-383] Left Wing Cover. For serial numbers PCD192 to PCD299, use [410-330-377] Left Wing Cover. For serial numbers PCD191 and earlier, use [410-330-367] Left Wing Cover.
410-330-375	42	For serial numbers PCD300 and earlier, use [410-330-365] Filler Rubber.
423-080-220	45	For serial numbers STD041 and earlier, use [423-080-200] Cover Latch.

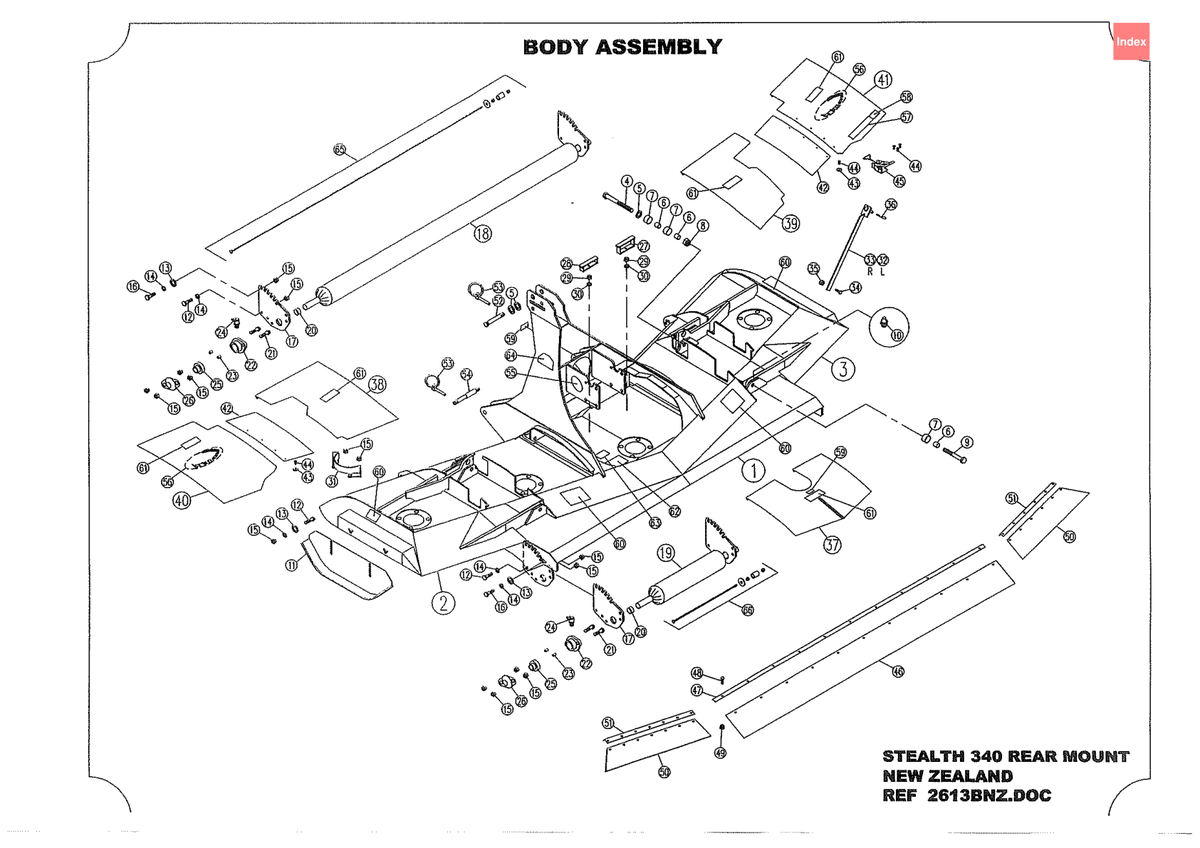

Stealth S1 - Body Assembly

Stealth S1 340

Grouped product items
No.	Product Name	Price
4	Bolt 305-620-153 More Info >	$33.67
5	Washer - Heavy Flat 308-200-064 More Info >	$1.02
6	Bush - Inner Ring 401-021-860 More Info >	$42.80
7	Bush i See notes section for usage notes on this part 402-061-050 More Info >	$40.13
9	Bolt 301-220-803 More Info >	$14.19
10	Grease Nipple 208-442-600 More Info >	$3.61
11	Skid Weldment - Rear Mount ��6" Rollers ST i See notes section for usage notes on this part 412-320-112 More Info >	$214.00
12	Bolt 301-212-353 More Info >	$2.71
13	Washer - Heavy Flat 308-120-063 More Info >	$1.84
14	Washer - Spring 308-120-043 More Info >	$0.45
15	Nut - Plain 307-212-013 More Info >	$0.57
16	Bolt 301-212-403 More Info >	$2.93
18	Roller Weldment - FrST/RrSTFM i See notes section for usage notes on this part 414-320-015 More Info >	$889.79
19	Roller Weldment - Rear i See notes section for usage notes on this part 414-320-014 More Info >	$444.90
20	Sleeve 402-464-062 More Info >	$17.73
21	Bolt 301-212-503 More Info >	$3.16
22	Bearing Housing 401-020-800 More Info >	$17.12
23	Sleeve 402-480-740 More Info >	$5.02
24	Grease Nipple 208-442-620 More Info >	$4.47
25	Bearing 401-020-700 More Info >	$56.92
26	Cap 410-464-072 More Info >	$36.38
29	Nut - Nyloc 307-208-053 More Info >	$0.17
30	Washer - Spring 308-080-043 More Info >	$0.12
31	Belt Retainer Guide 417-330-460 More Info >	$36.42
34	Bolt 301-212-453 More Info >	$3.04
35	Nut - Nyloc 307-212-053 More Info >	$0.67
36	R-Clip 206-443-400 More Info >	$1.12
38	Cover i See notes section for usage notes on this part 410-330-373 More Info >	$343.52
39	Cover i See notes section for usage notes on this part 410-330-374 More Info >	$343.52
40	Cover i See notes section for usage notes on this part 410-330-383 More Info >	$275.94
42	Filler Rubber i See notes section for usage notes on this part 410-330-375 More Info >	$43.59
43	Washer - Fender 108-031-413 More Info >	$1.10
44	Blind Rivet 213-443-250 More Info >	$0.57
45	Adjustable Catch - Covers i See notes section for usage notes on this part 423-080-220 More Info >	$30.00
48	Bolt 301-206-203 More Info >	$0.12
49	Nut - Nyloc 307-206-053 More Info >	$0.54
52	Pin - Linkage - Top Link 419-301-150 More Info >	$14.76
53	Linch Pin 203-300-700 More Info >	$2.76
54	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	$29.29
55	Serial Plate - Three-point Linkage Mowers Small NZ 426-442-800 More Info >	$10.19
59	Decal - Instruction - PTO Speed 540RPM 424-100-900 More Info >	$7.89
60	Decal - Safety - Blade Warning / Thrown Objects 424-100-950 More Info >	$5.63
62	Decal - Instruction - Wash Warning Large 424-101-100 More Info >	$3.61
63	Decal - Instruction - Grease Points - Spindles 424-101-120 More Info >	$2.93
65	Roller Scraper 404-320-127 More Info >	$69.55
