NOTES:

Part #	Number on image	Usage Notes
412-000-148	19	Antibounce Skid available as an option
404-320-122	20	Roller Scraper available as an option

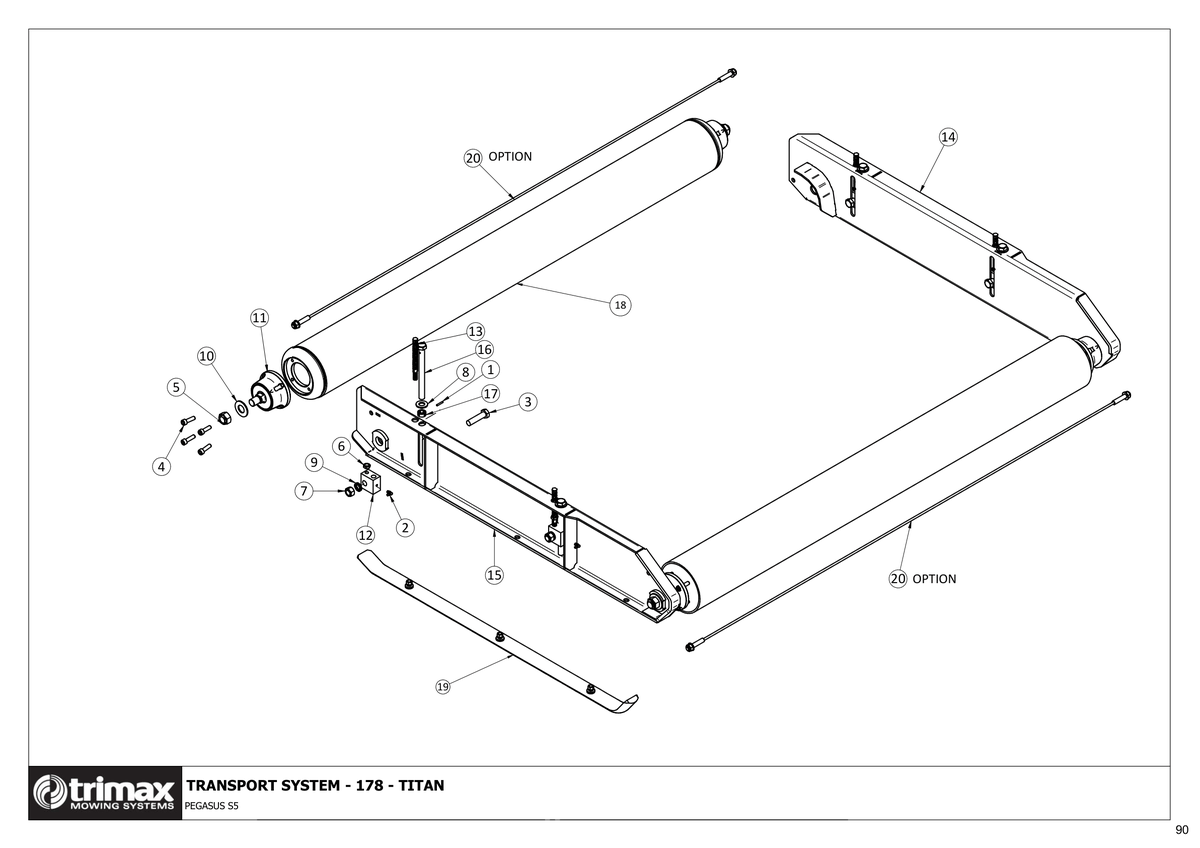

781 - Pegasus S5 - Transport System 178

Pegasus S5 493, Pegasus S5 610, Pegasus S5 722

Grouped product items
No.	Product Name	Price
1	Roll Pin 202-447-980 More Info >	$5.14
2	Grease Nipple 208-442-650 More Info >	$5.89
3	Bolt 301-216-653 More Info >	$6.76
4	Cap Screw 303-210-353 More Info >	$3.09
5	Nut Nyloc 307-122-053 More Info >	$7.60
6	Nut - Half 307-212-023 More Info >	$1.13
7	Nut - Plain 307-216-013 More Info >	$1.61
8	Washer - Heavy Flat 308-160-063 More Info >	$1.65
9	Washer - Nordloc 308-160-083 More Info >	$5.63
10	Washer - Heavy Flat M24 ZP (Ø25mm ID) 308-240-063 More Info >	$1.98
11	Bearing Assembly - Titan 401-000-035 More Info >	$284.00
12	Height Adjuster Block 412-000-255 More Info >	$86.67
13	Height Indicator Rod - 6 Sided 412-000-580 More Info >	$46.29
14	Side Channel Weldment - Titan Bearing - LH 412-000-594 More Info >	$626.82
15	Side Channel Weldment - Titan Bearing - RH 412-000-595 More Info >	$626.82
16	Set Screw 412-000-609 More Info >	$56.00
17	Collar - Height Adjuster 412-850-260 More Info >	$36.93
18	Roller Weldment 414-000-157 More Info >	$930.00
19	Skid Assembly - Anti-Bounce i See notes section for usage notes on this part 412-000-148 More Info >	$176.55
20	Scraper - Roller 178 i See notes section for usage notes on this part 404-320-122 More Info >	$80.25
