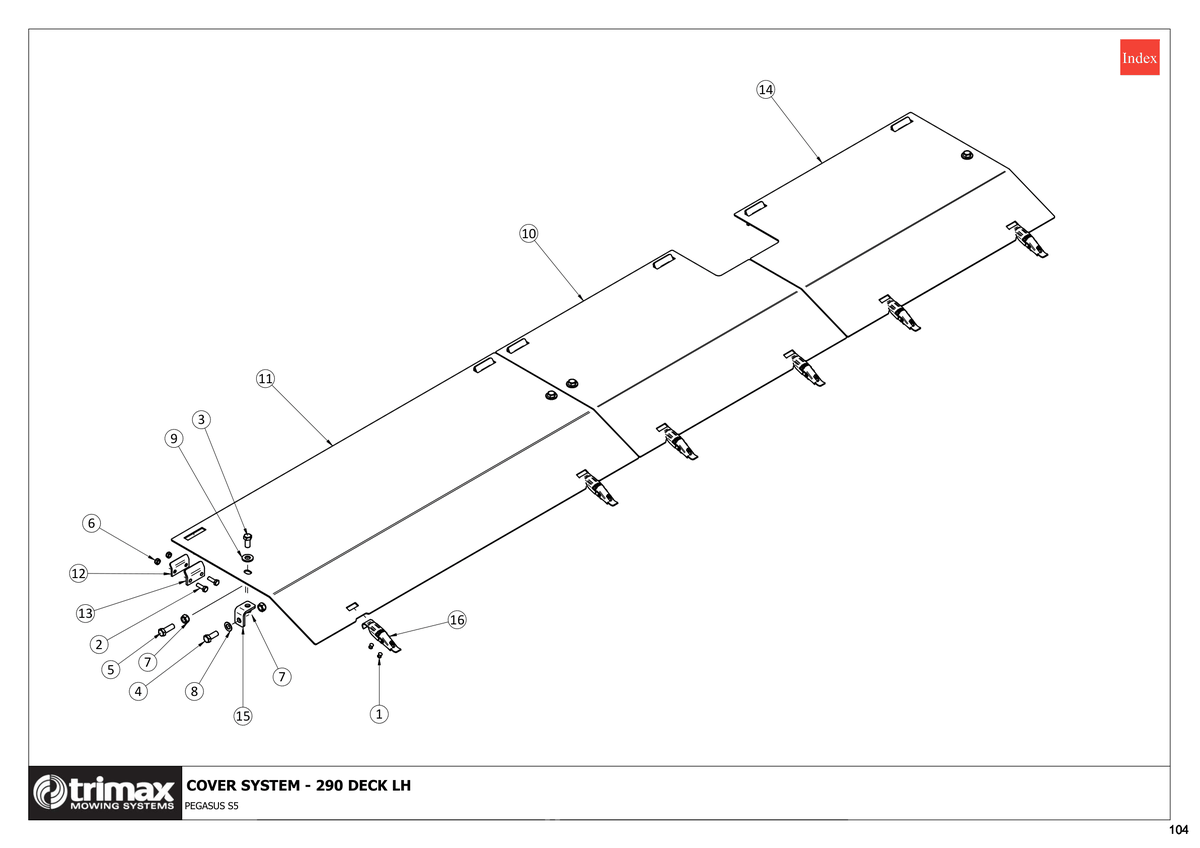

781 - Pegasus S5 - Covers 290 LH

Pegasus S5 493, Pegasus S5 610, Pegasus S5 722

Grouped product items
No. Image Product Name Price Quantity
1 Blind Rivet [213-443-250] Blind Rivet 213-443-250
$0.57
2 Bolt [301-208-253] Bolt 301-208-253
$0.54
3 Bolt [301-212-253] Bolt 301-212-253
$2.93
4 Bolt [301-212-303] Bolt 301-212-303
$2.36
5 Bolt [301-212-353] Bolt 301-212-353
$2.71
6 Nut - Nyloc [307-208-053] Nut - Nyloc 307-208-053
$0.17
7 Nut - Nyloc [307-212-053] Nut - Nyloc 307-212-053
$0.67
8 Washer - Flat [308-120-013] Washer - Flat 308-120-013
$0.45
9 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
$1.84
10 Cover - Left Of Gearbox [410-000-419] Cover - Left Of Gearbox 410-000-419
$295.84
11 Cover - Outer - 290 [410-000-420] Cover - Outer - 290 410-000-420
$427.31
12 Cover - Retaining Post Rubber Insert [410-000-422] Cover - Retaining Post Rubber Insert 410-000-422
$8.45
13 Cover - Retaining Post [410-000-423] Cover - Retaining Post 410-000-423
$11.31
14 Cover - Right Of Gearbox [410-000-425] Cover - Right Of Gearbox 410-000-425
$308.19
15 Retaining Lug Weldment [417-001-665] Retaining Lug Weldment 417-001-665
$93.77
16 Latch - Cover Non Adjustable [423-000-002] Latch - Cover Non Adjustable 423-000-002
$24.00
