Parts Shop

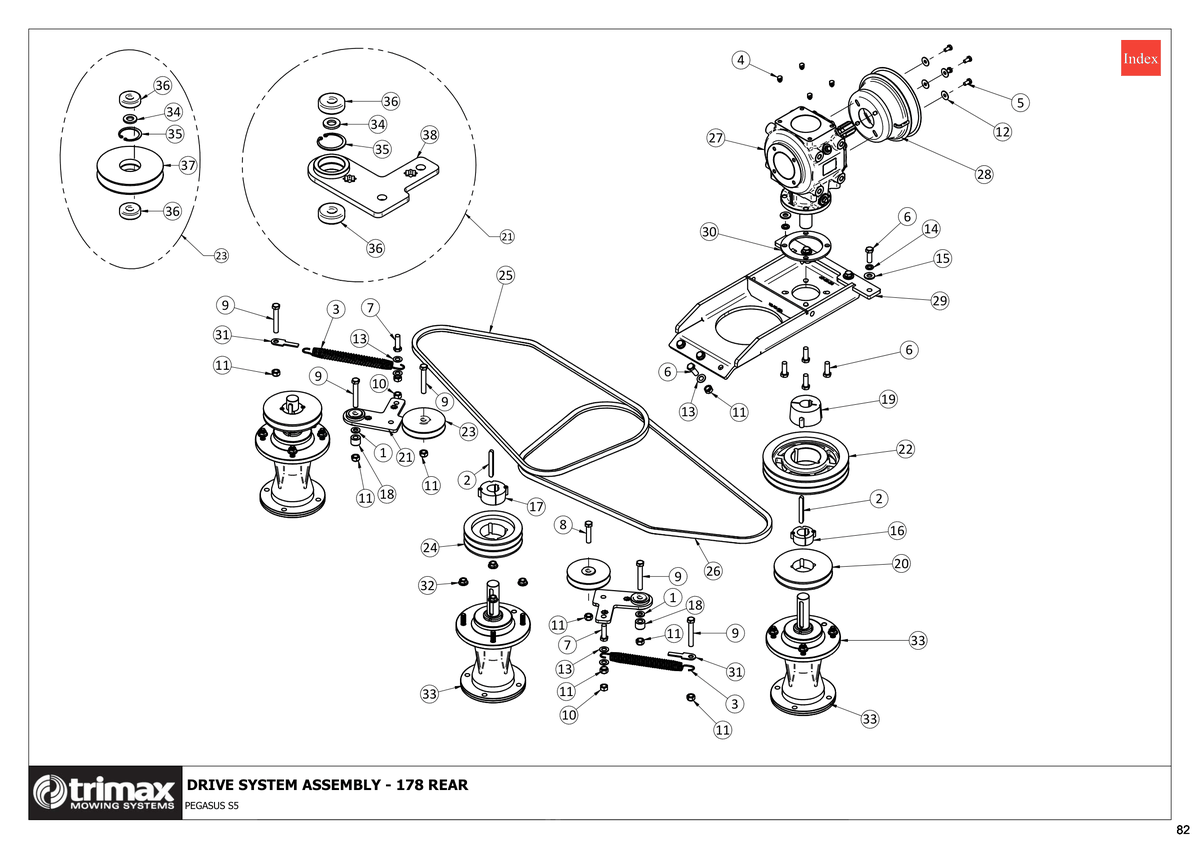

781 - Pegasus S5 610 - Drive System 178 Rear

Pegasus S5 610

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Hardened [108-071-513] Washer - Hardened 108-071-513
$4.58
2 Key - 10 x 8 x 85 - Trimax Specification [205-000-003] Key - 10 x 8 x 85 - Trimax Specification 205-000-003
$6.85
3 Spring - Deck Belt Tensioner - Trimax Specification - [207-000-009] Spring - Deck Belt Tensioner - Trimax Specification - 207-000-009
$12.09
4 Blanking Plug - M12 [209-900-012] Blanking Plug - M12 209-900-012
Price on Request
5 Bolt - Hex Head - M8 x 16 - Trimax Specification [301-208-163] Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163
$0.61
6 Bolt - Hex Head - M12 x 35 - Trimax Specification [301-212-353] Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353
$2.71
7 Bolt - Hex Head - M12 x 40 - Trimax Specification [301-212-403] Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403
$2.93
8 Bolt - Hex Head - M12 x 55 - Trimax Specification [301-212-553] Bolt - Hex Head - M12 x 55 - Trimax Specification 301-212-553
$2.78
9 Bolt - Hex Head - M12 x 80 - Trimax Specification [301-212-803] Bolt - Hex Head - M12 x 80 - Trimax Specification 301-212-803
$3.34
10 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
$0.57
11 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
$0.67
12 Washer - Fender - M8 [308-080-073] Washer - Fender - M8 308-080-073
Price on Request
13 Washer - Flat M12 - Trimax Specification - [308-120-013] Washer - Flat M12 - Trimax Specification - 308-120-013
$0.45
14 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
$0.45
15 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
$1.84
16 Bush - Taper Lock [402-000-078] Bush - Taper Lock 402-000-078
$22.23
17 Bush - Taper Lock [402-000-090] Bush - Taper Lock 402-000-090
$31.92
18 Idler Arm Spacer Bush - 19mm [402-000-134] Idler Arm Spacer Bush - 19mm 402-000-134
$23.92
19 Bush - Taper Lock [402-060-820] Bush - Taper Lock 402-060-820
$39.57
20 Pulley - Taper Lock [403-000-083] Pulley - Taper Lock 403-000-083
$75.45
21 Idler Arm - Assembly [403-000-123] Idler Arm - Assembly 403-000-123
$133.56
22 Pulley - Taper Lock Ø224 SPB x 2 [403-000-130] Pulley - Taper Lock Ø224 SPB x 2 403-000-130
$78.07
23 Pulley Assembly - Idler [403-360-111] Pulley Assembly - Idler 403-360-111
$112.00
24 Pulley - Taper Lock [403-361-140] Pulley - Taper Lock 403-361-140
$62.66
25 Vee Belt - Trimax Specification [404-040-750] Vee Belt - Trimax Specification 404-040-750
$48.00
27 Gearbox - Standard Rotation - 540rpm [405-200-720] Gearbox - Standard Rotation - 540rpm 405-200-720
$1,712.00
28 Cone - PTO Holes Punched [410-440-402] Cone - PTO Holes Punched 410-440-402
$44.94
29 Gearbox Mount Weldment [417-001-297] Gearbox Mount Weldment 417-001-297
$570.05
30 Gearbox Spacer Disc [417-001-300] Gearbox Spacer Disc 417-001-300
$37.20
32 Nut - Flange [450-000-078] Nut - Flange 450-000-078
$3.85
33 Spindle Assembly - Steadfast - With Keyway [504-000-133] Spindle Assembly - Steadfast - With Keyway 504-000-133
$1,179.00
35 Circlip/Snap Ring - Internal [204-820-371] Circlip/Snap Ring - Internal 204-820-371
$6.21
36 Bearing - Trimax Specification - [401-021-900] Bearing - Trimax Specification - 401-021-900
$18.60
37 Pulley - Idler [403-360-110] Pulley - Idler 403-360-110
$63.89
