NOTES:

Part #	Number on image	Usage Notes
404-000-131	15	OPTION – Roller Scraper optional add-on
412-000-804	21	OPTION – Anti-Bounce Skid optional add-on

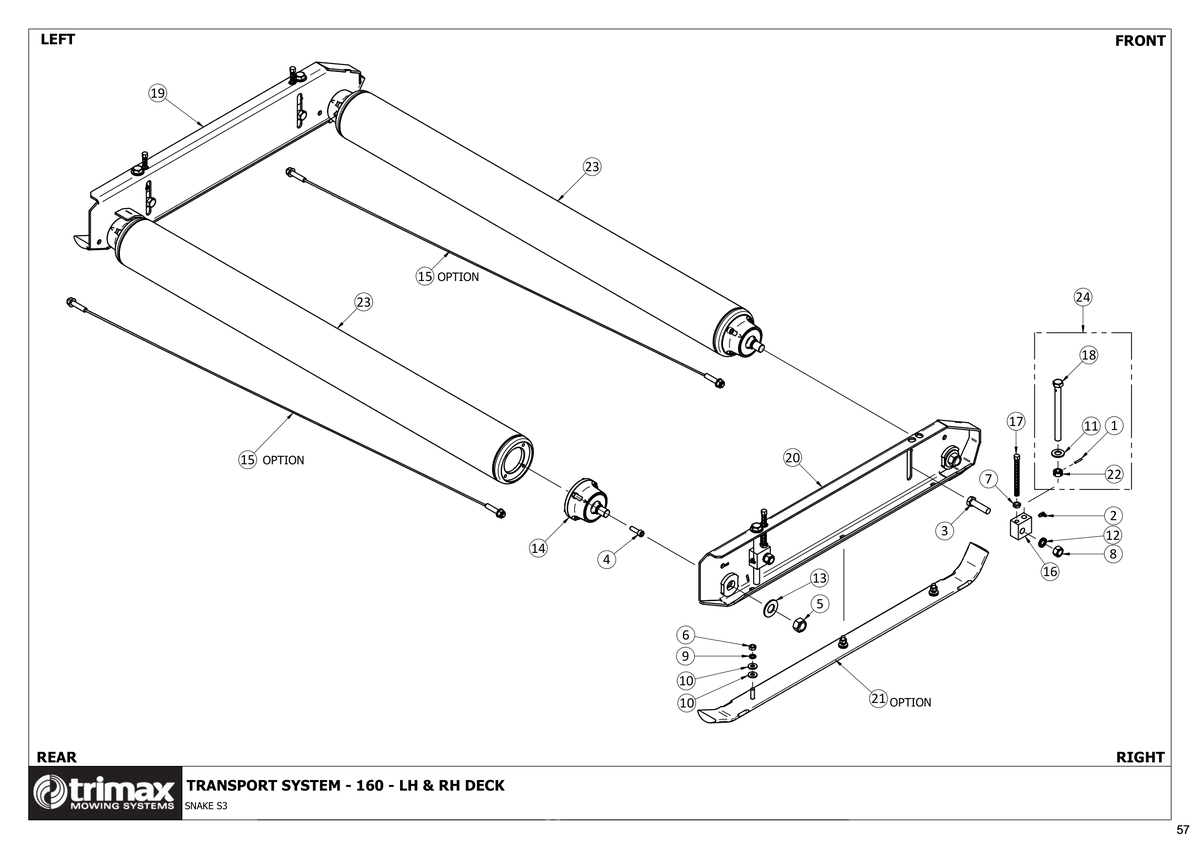

780 - Snake S3 - Transport System 160

Grouped product items
No.	Product Name	Price
1	Roll Pin 202-447-980 More Info >	$5.14
2	Grease Nipple 208-442-650 More Info >	$5.89
3	Bolt 301-216-603 More Info >	$3.85
4	Cap Screw 303-210-353 More Info >	$3.09
5	Nut Nyloc 307-122-053 More Info >	$7.60
6	Nut - Plain 307-210-013 More Info >	$0.48
7	Nut - Half 307-212-023 More Info >	$1.13
8	Nut - Plain 307-216-013 More Info >	$1.61
9	Washer - Spring 308-100-043 More Info >	$0.18
10	Washer - Heavy Flat 308-100-063 More Info >	$0.85
11	Washer - Heavy Flat 308-160-063 More Info >	$1.65
12	Washer - Nordloc 308-160-083 More Info >	$5.63
13	Washer - Heavy Flat M24 ZP (Ø25mm ID) 308-240-063 More Info >	$1.98
14	Bearing Assembly - Titan 401-000-035 More Info >	$284.00
15	Scraper - Roller 160 i See notes section for usage notes on this part 404-000-131 More Info >	$96.30
16	Height Adjuster Block 412-000-255 More Info >	$86.67
17	Height Indicator - Metric 412-000-256 More Info >	$37.45
18	Set Screw 412-000-609 More Info >	$56.00
19	Side Channel Weldment - Titan LH Powder Coated 412-000-790	$0.00
20	Side Channel Weldment - Titan RH Powder Coated 412-000-791	$0.00
21	Skid - Anti-Bounce Inc. Hardware - Snake S3 i See notes section for usage notes on this part 412-000-804 More Info >	$250.00
22	Collar - Height Adjuster 412-850-260 More Info >	$36.93
23	Roller Weldment - Snake S3 160 Titan Powder Coated 414-000-192 More Info >	$0.00
