NOTES:

Part # Number on image Usage Notes
301-210-303 1
  • Use this listing only for mowers manufactured with doubler plate from S/N 758-340-321-1060703 onwards. For all mowers manufactured prior to S/N 758-340-321-1060703 use the other wing hinge system listing on page 12.
301-220-753 4
  • Use this listing only for mowers manufactured with doubler plate from S/N 758-340-321-1060703 onwards. For all mowers manufactured prior to S/N 758-340-321-1060703 use the other wing hinge system listing on page 12.
401-000-013 10
  • Use this listing only for mowers manufactured with doubler plate from S/N 758-340-321-1060703 onwards. For all mowers manufactured prior to S/N 758-340-321-1060703 use the other wing hinge system listing on page 12.
401-021-860 12
  • Use this listing only for mowers manufactured with doubler plate from S/N 758-340-321-1060703 onwards. For all mowers manufactured prior to S/N 758-340-321-1060703 use the other wing hinge system listing on page 12.

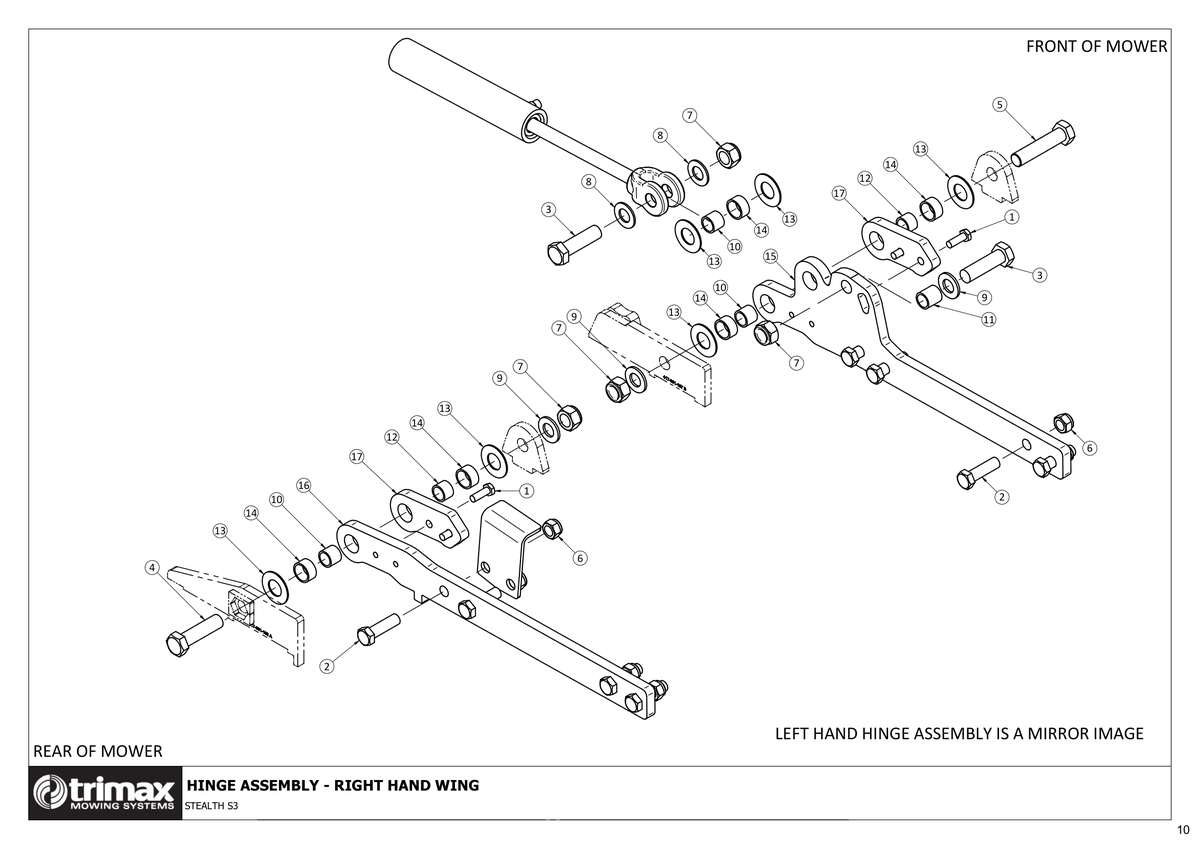

758 - Stealth S3 SR 340 - Wing Hinge System - RH

Stealth S3 SR 340

Grouped product items
No. Image Product Name Price Quantity
1 Bolt - Hex Head - M10 x 30 - Trimax Specification [301-210-303] Bolt - Hex Head - M10 x 30 - Trimax Specification i See notes section for usage notes on this part 301-210-303
$0.86
2 Bolt - Hex Head - M16 x 55 - Trimax Specification [301-216-553] Bolt - Hex Head - M16 x 55 - Trimax Specification 301-216-553
$6.42
3 Bolt - Hex Head - M20 x 70 - Trimax Specification [301-220-703] Bolt - Hex Head - M20 x 70 - Trimax Specification 301-220-703
$9.76
4 Bolt - Hex Head - M20 x 75 - Trimax Specification [301-220-753] Bolt - Hex Head - M20 x 75 - Trimax Specification i See notes section for usage notes on this part 301-220-753
$4.82
6 Nut - Nyloc M16 - Trimax Specification - [307-216-053] Nut - Nyloc M16 - Trimax Specification - 307-216-053
$1.02
7 Nut - Hex Nyloc M20 - Trimax Specification - [307-220-053] Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053
$1.57
8 Washer - Flat [308-200-013] Washer - Flat 308-200-013
$1.16
9 Washer - Heavy Flat M20 - Trimax Specification - [308-200-064] Washer - Heavy Flat M20 - Trimax Specification - 308-200-064
$1.02
10 Inner Ring [401-000-013] Inner Ring i See notes section for usage notes on this part 401-000-013
$16.05
11 Inner Ring - Lock Bush [401-000-018] Inner Ring - Lock Bush 401-000-018
$20.70
12 Bush - Inner Ring [401-021-860] Bush - Inner Ring i See notes section for usage notes on this part 401-021-860
$42.80
13 Washer - Nylon Thrust Washer - Trimax Specification [402-000-088] Washer - Nylon Thrust Washer - Trimax Specification 402-000-088
$14.68
14 Bush - Composite Pivot Bush [402-000-093] Bush - Composite Pivot Bush 402-000-093
$44.94
15 Plate [417-001-163] Plate 417-001-163
$269.21
16 Plate [417-001-164] Plate 417-001-164
$250.74
