NOTES:

Part # Number on image Usage Notes
417-001-155 19
  • Transport Lock Arm Spares Kit for Stealth S3 also available: 417-001-155 (AUS), Lock Arm Kit 460-000-208 and Lock Arm 417-001-419 (Global), Lock Arm Kit 460-000-231.
417-001-366 21
  • New brackets/actuator used on these mower serial numbers onwards, Painted 719-340-002-0241/Galv 719-340-012-0025.
418-840-641 22
  • Replaces Tie Rod Long 418-840-640.

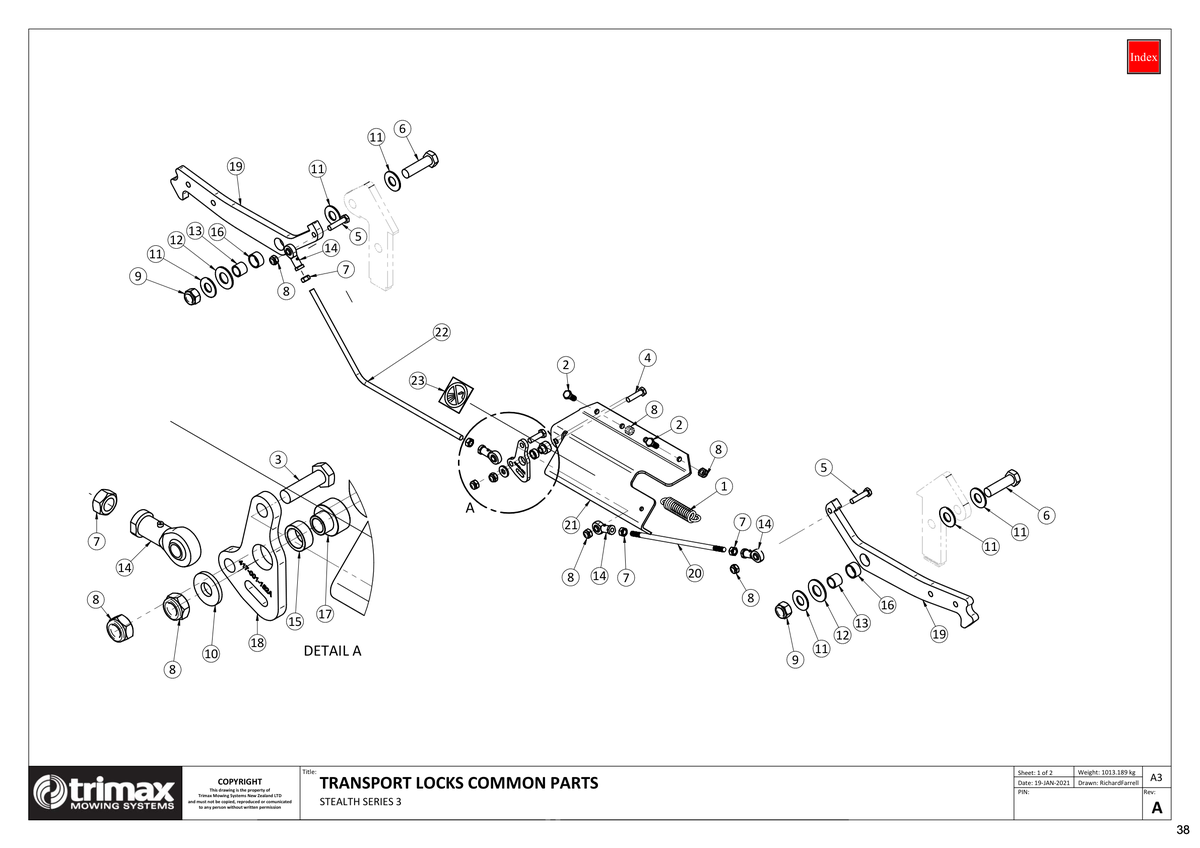

758 - Stealth S3 SR 340 - Transport Locks - Common Parts

Stealth S3 SR 340

Grouped product items
No. Image Product Name Price Quantity
1 Spring - Tension [207-000-008] Spring - Tension 207-000-008
$84.06
2 Bolt - Hex Head - M10 x 25 - Trimax Specification [301-210-253] Bolt - Hex Head - M10 x 25 - Trimax Specification 301-210-253
$0.57
3 Bolt - Hex Head - M10 x 35 - Trimax Specification [301-210-353] Bolt - Hex Head - M10 x 35 - Trimax Specification 301-210-353
$1.67
4 Bolt - Hex Head - M10 x 40 - Trimax Specification [301-210-403] Bolt - Hex Head - M10 x 40 - Trimax Specification 301-210-403
$1.94
5 Bolt - Hex Head - M10 x 45 - Trimax Specification [301-210-453] Bolt - Hex Head - M10 x 45 - Trimax Specification 301-210-453
$1.80
6 Bolt - Hex Head - M20 x 70 - Trimax Specification [301-220-703] Bolt - Hex Head - M20 x 70 - Trimax Specification 301-220-703
$9.76
7 Nut - Plain M10 - Trimax Specification - [307-210-013] Nut - Plain M10 - Trimax Specification - 307-210-013
$0.48
8 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
$0.57
9 Nut - Hex Nyloc M20 - Trimax Specification - [307-220-053] Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053
$1.57
10 Washer - Heavy Flat [308-100-063] Washer - Heavy Flat 308-100-063
$0.85
11 Washer - Fender [308-200-073] Washer - Fender 308-200-073
$0.94
12 Washer - Heavy Flat [308-270-063] Washer - Heavy Flat 308-270-063
$6.36
13 Inner Ring [401-000-013] Inner Ring 401-000-013
$16.05
14 Bearing [401-840-800] Bearing 401-840-800
$22.26
15 Bush [402-000-092] Bush 402-000-092
$26.23
16 Bush - Composite Pivot Bush [402-000-093] Bush - Composite Pivot Bush 402-000-093
$44.94
17 Bush [402-000-097] Bush 402-000-097
$9.89
18 Pivot Plate [417-001-152] Pivot Plate 417-001-152
$14.94
19 Plate - Transport Lock Arm (AUS) - Stealth S3 [417-001-155] Plate - Transport Lock Arm (AUS) - Stealth S3 i See notes section for usage notes on this part 417-001-155
$223.30
20 Tie Rod [417-001-179] Tie Rod 417-001-179
$13.57
21 Folding [417-001-366] Folding i See notes section for usage notes on this part 417-001-366
$98.33
22 Tie Rod - Bent - Transport Lock M10 x 513 [418-840-641] Tie Rod - Bent - Transport Lock M10 x 513 i See notes section for usage notes on this part 418-840-641
Price on Request
23 Decal - Instruction - No Water Blasting [424-000-163] Decal - Instruction - No Water Blasting 424-000-163
Price on Request
