NOTES:

Part #	Number on image	Usage Notes
409-448-760	16	Use Part Number 409-000-071 for complete Hose Kit - individual Stealth S3.
409-448-770	17	Use Part Number 409-000-071 for complete Hose Kit - individual Stealth S3.

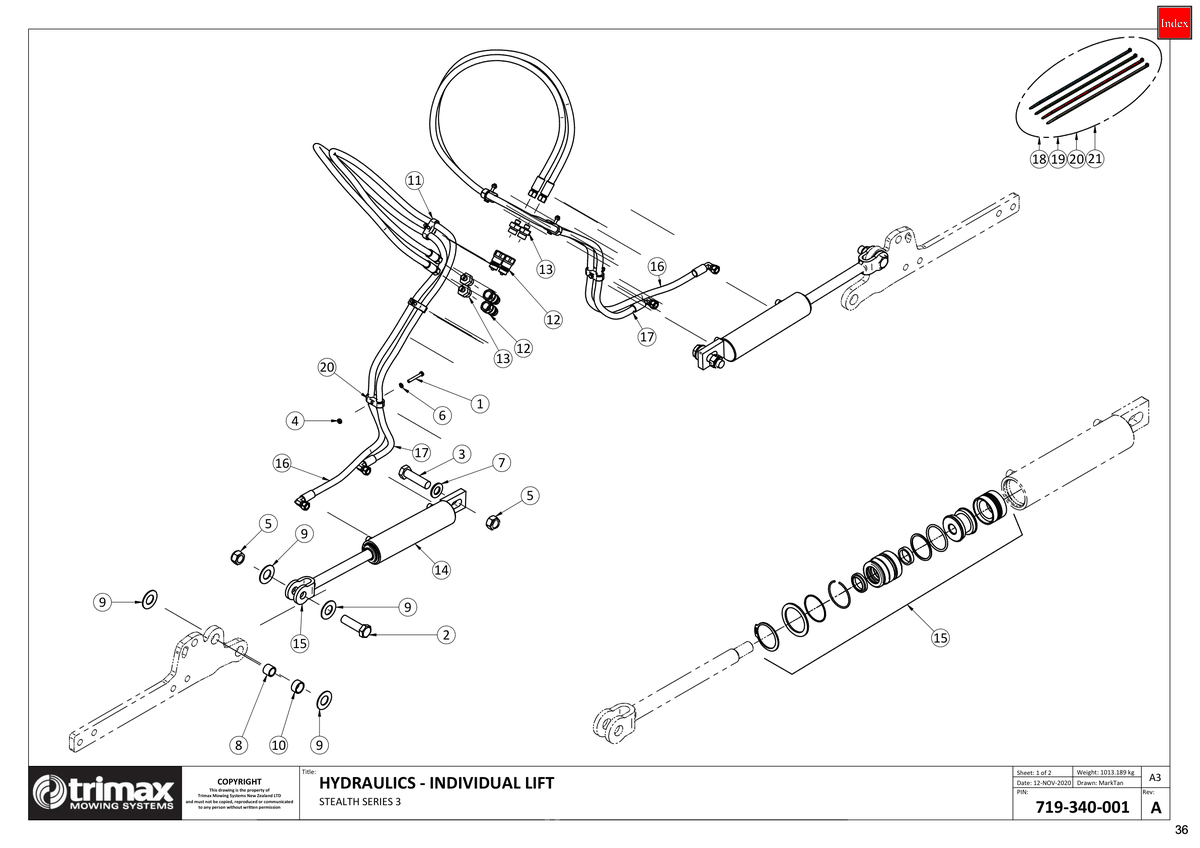

758 - Stealth S3 SR 340 - Hydraulics - Individual Lift

Stealth S3 SR 340

Grouped product items
No.	Product Name	Price
1	Bolt - Hex Head - M6 x 45 - Trimax Specification 301-206-453 More Info >	$0.32
2	Bolt - Hex Head - M20 x 70 - Trimax Specification 301-220-703 More Info >	$9.76
3	Bolt - Hex Head - M20 x 75 - Trimax Specification 301-220-753 More Info >	$4.82
4	Nut - Nyloc 307-206-053 More Info >	$0.54
5	Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053 More Info >	$1.57
6	Washer - Flat 308-060-013 More Info >	$0.04
7	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	$1.02
8	Inner Ring 401-000-013 More Info >	$16.05
9	Washer - Nylon Thrust Washer - Trimax Specification 402-000-088 More Info >	$14.68
10	Bush - Composite Pivot Bush 402-000-093 More Info >	$44.94
11	Clamp - Hydraulic Hose - 13.5mm (1/4" NB) 408-000-055 More Info >	$8.56
12	Coupling 408-447-580 More Info >	$43.96
13	Nipple 408-448-280 More Info >	$9.33
14	Lift Ram 409-000-073 More Info >	$808.92
15	Seal Kit - Hydraulic Cylinder 408-000-060 More Info >	$125.60
16	Hose Assembly i See notes section for usage notes on this part 409-448-760 More Info >	Price on Request
17	Hose Assembly i See notes section for usage notes on this part 409-448-770 More Info >	Price on Request
18	Cable Tie - Blue 210-900-015 More Info >	Price on Request
19	Cable Tie - Green 210-900-016 More Info >	Price on Request
20	Cable tie 210-900-017 More Info >	Price on Request
21	Cable tie 210-900-018 More Info >	Price on Request
