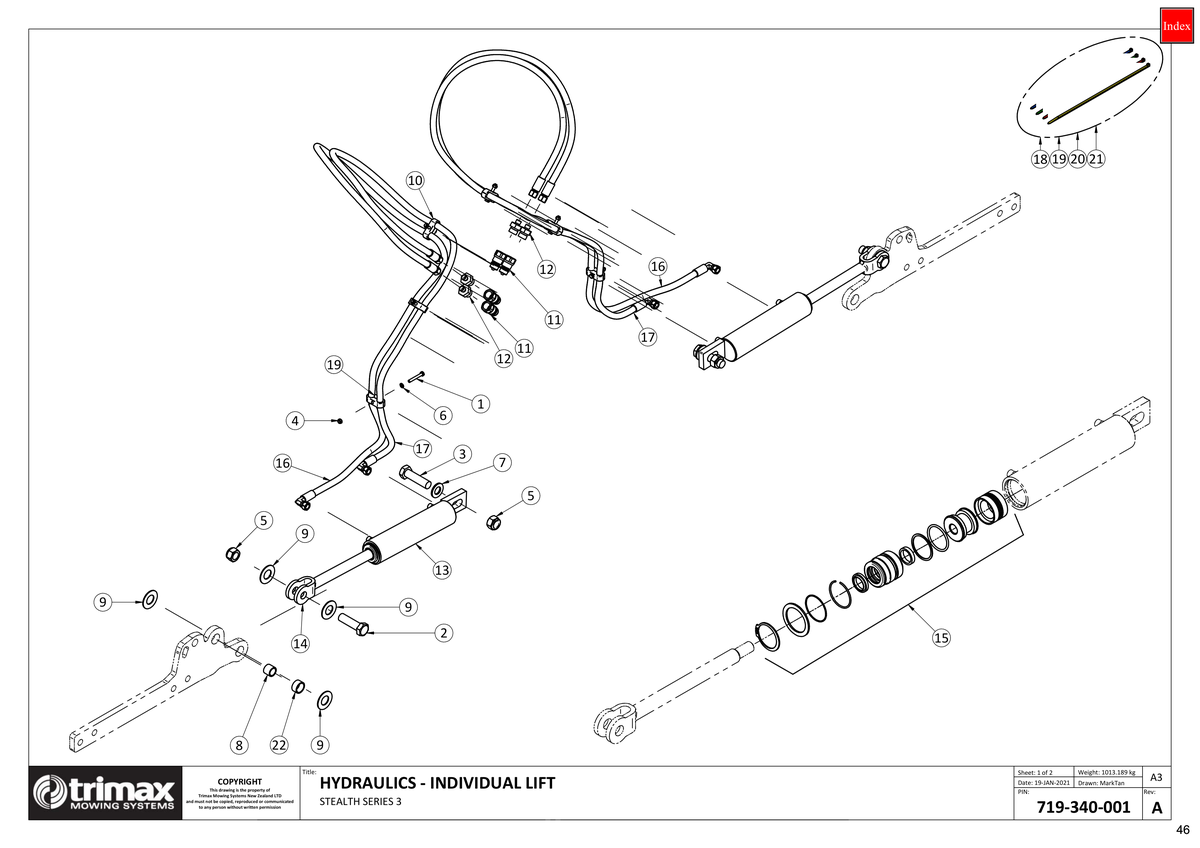

758 - Stealth S3 340 - Hydraulics - Individual Lift

Stealth S3 340

Grouped product items
No. Image Product Name Price Quantity
1 Bolt [301-206-453] Bolt 301-206-453
$0.32
2 Bolt [301-220-703] Bolt 301-220-703
$9.76
3 Bolt [301-220-753] Bolt 301-220-753
$4.82
4 Nut - Nyloc [307-206-053] Nut - Nyloc 307-206-053
$0.54
5 Nut - Nyloc [307-220-053] Nut - Nyloc 307-220-053
$1.57
6 Washer - Flat [308-060-013] Washer - Flat 308-060-013
$0.04
7 Washer - Heavy Flat [308-200-064] Washer - Heavy Flat 308-200-064
$1.02
8 Inner Ring [401-000-013] Inner Ring 401-000-013
$16.05
9 Washer [402-000-088] Washer 402-000-088
$14.68
10 Double Hose Clamp [408-000-055] Double Hose Clamp 408-000-055
$8.56
11 Coupling [408-447-580] Coupling 408-447-580
$43.96
12 Nipple [408-448-280] Nipple 408-448-280
$9.33
13 Lift Ram [409-000-073] Lift Ram 409-000-073
$808.92
22 Bush - Composite [402-000-093] Bush - Composite 402-000-093
$44.94
15 Seal Kit - Hydraulic Cylinder [408-000-060] Seal Kit - Hydraulic Cylinder 408-000-060
$125.60
18 Cable Tie - 200x4.8mm - Blue [210-900-015] Cable Tie - 200x4.8mm - Blue 210-900-015
Price on Request
19 Cable Tie - 200x4.8mm - Green [210-900-016] Cable Tie - 200x4.8mm - Green 210-900-016
Price on Request
