NOTES:

Part #	Number on image	Usage Notes
402-000-134	22	Quantity varies per Idler Arm
403-000-123	25	For Idler Arm/Pulley bearing kit use part number 406-000-167 (Item 40)
403-000-166	26	For Idler Arm/Pulley bearing kit use part number 406-000-167 (Item 40)
403-360-111	27	For Idler Arm/Pulley bearing kit use part number 406-000-167 (Item 40)
405-200-720	33	Locate and supply serial number when ordering new gearbox to order the correct gearbox. All gearboxes are backward compatible, 405-200-720 & 405-000-148 gearboxes should be used with 417-001-300 mount.
504-000-133	38	Use Part number 407-000-028 - for Spindle repair kit
403-000-167	40	403-000-167 - Idler repair kit contains 2 x Bearings,1 x circlip, 1 x Washer
405-000-015	41	Locate and supply serial number when ordering new gearbox to order the correct gearbox. All gearboxes are backward compatible, 405-200-720 & 405-000-148 gearboxes should be used with 417-001-300 mount.
405-000-164	42	Locate and supply serial number when ordering new gearbox to order the correct gearbox. All gearboxes are backward compatible, 405-200-720 & 405-000-148 gearboxes should be used with 417-001-300 mount.

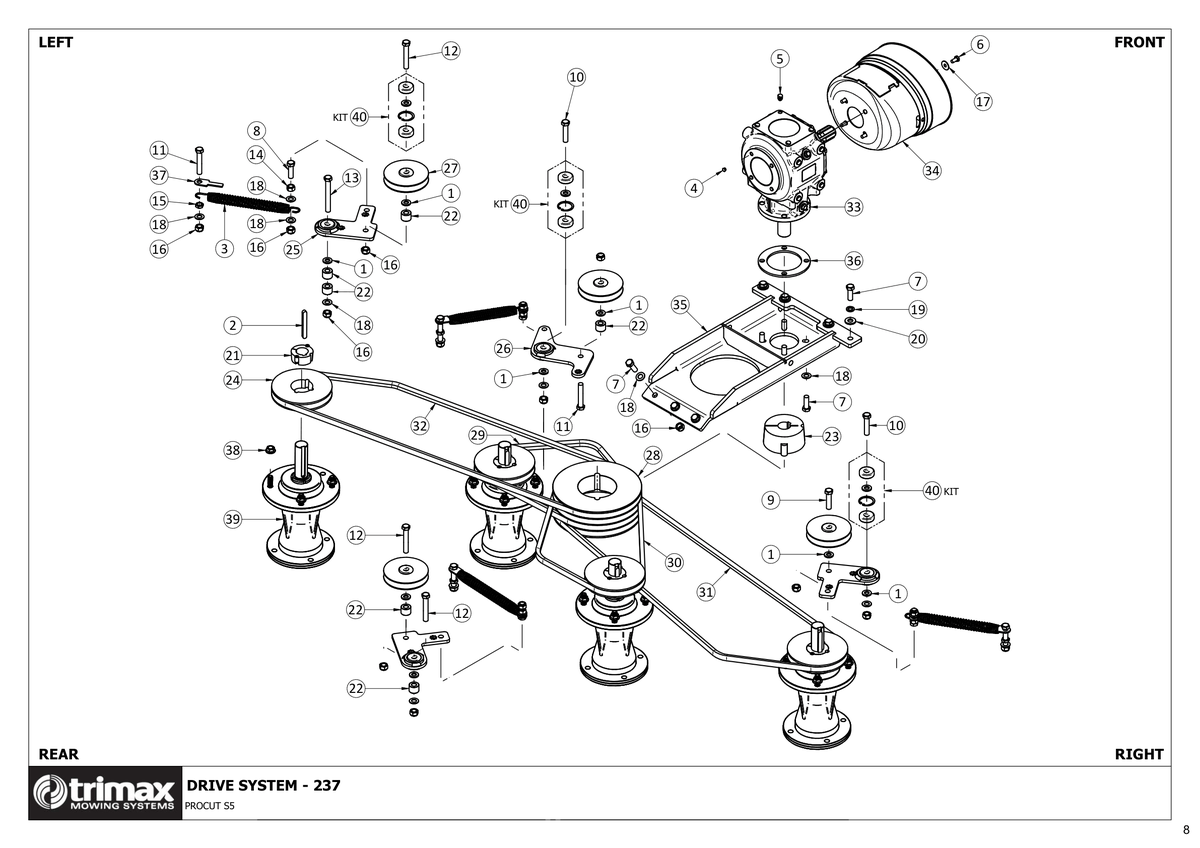

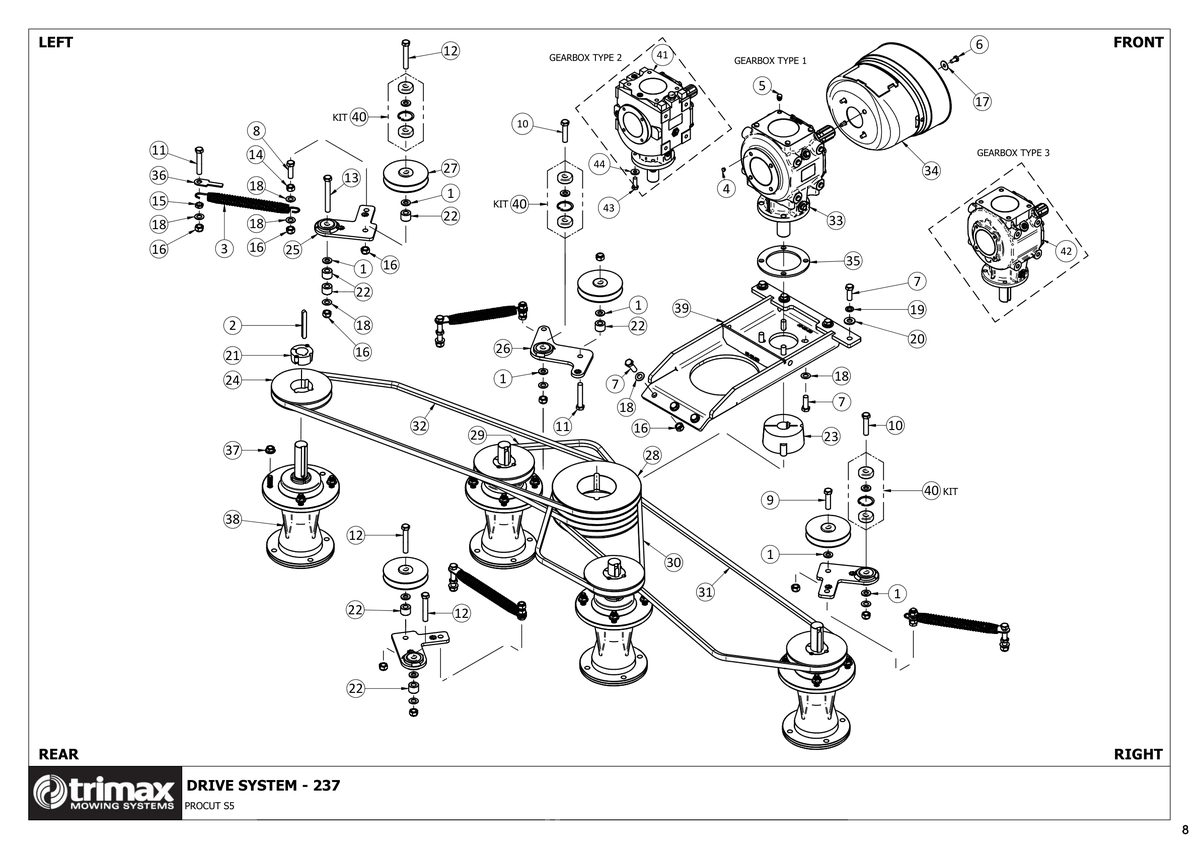

756 - Procut S5 237 - Drive System

ProCut S5 237

Grouped product items
No.	Product Name	Price
1	Washer - Hardened 108-071-513 More Info >	$4.58
2	Key - 10 x 8 x 85 - Trimax Specification 205-000-003 More Info >	$8.60
3	Spring - Deck Belt Tensioner - Trimax Specification - 207-000-009 More Info >	$12.09
4	Blanking Plug - M8 209-000-029 More Info >	Price on Request
5	Blanking Plug - M12 209-900-012 More Info >	Price on Request
6	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	$0.61
7	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	$2.71
8	Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403 More Info >	$2.93
9	Bolt - Hex Head M12 x 50 - Trimax Specification - 301-212-503 More Info >	$3.16
10	Bolt - Hex Head - M12 x 55 - Trimax Specification 301-212-553 More Info >	$2.78
11	Bolt - Hex Head - M12 x 70 - Trimax Specification 301-212-703 More Info >	$3.87
12	Bolt - Hex Head - M12 x 75 - Trimax Specification 301-212-753 More Info >	Price on Request
13	Bolt - Hex Head - M12 x 100 - Trimax Specification 301-612-103 More Info >	Price on Request
14	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	$0.57
15	Nut - Half 307-212-023 More Info >	$1.13
16	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	$0.67
17	Washer - Fender - M8 308-080-073 More Info >	Price on Request
18	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	$0.45
19	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	$0.45
20	Washer - Heavy Flat 308-120-063 More Info >	$1.84
21	Bush - Taper Lock 402-000-078 More Info >	$22.23
22	Idler Arm Spacer Bush - 19mm i See notes section for usage notes on this part 402-000-134 More Info >	$23.92
23	Bush - Taper Lock 402-060-680 More Info >	$83.73
24	Pulley - Taper Lock 403-000-083 More Info >	$75.45
25	Idler Arm - Assembly i See notes section for usage notes on this part 403-000-123 More Info >	$159.00
26	Idler Arm - 237 B Spindle Assembly i See notes section for usage notes on this part 403-000-166 More Info >	Price on Request
27	Pulley Assembly - Idler i See notes section for usage notes on this part 403-360-111 More Info >	$112.00
28	Pulley - Taper Lock 403-361-290 More Info >	$267.41
29	Vee Belt - Trimax Specification 404-040-460 More Info >	$46.00
30	Vee Belt - Trimax Specification 404-040-520 More Info >	$50.00
31	Vee Belt - Trimax Specification 404-040-900 More Info >	$59.00
32	Vee Belt - Trimax Specification 404-040-920 More Info >	$59.00
33	Gearbox - Standard Rotation - 540rpm i See notes section for usage notes on this part 405-200-720 More Info >	$1,712.00
34	PTO Cone - Wide angle - 52mm PCD 410-000-608	Price on Request
35	Gearbox Spacer Disc 417-001-300 More Info >	$37.20
37	Nut - Flange 450-000-078 More Info >	$3.85
38	Spindle Assembly - Steadfast - With Keyway i See notes section for usage notes on this part 504-000-133 More Info >	$1,179.00
39	Gearbox Mount Weldment 417-001-297 More Info >	$713.00
40	Kit - Idler Repair i See notes section for usage notes on this part 403-000-167 More Info >	Price on Request
41	Gearbox i See notes section for usage notes on this part 405-000-015 More Info >	$1,712.00
42	Gearbox - 540rpm - Trimax Specification i See notes section for usage notes on this part 405-000-164 More Info >	Price on Request
43	Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303 More Info >	$0.86
44	Washer - Heavy Flat 308-100-063 More Info >	$0.85
