NOTES:

Part # Number on image Usage Notes
402-000-134 21
  • Quantity varies per Idler Arm
403-000-123 24
  • For Idler Arm/Pulley bearing kit use part number 406-000-167 (Item 38)
403-360-111 25
  • For Idler Arm/Pulley bearing kit use part number 406-000-167 (Item 38)
405-200-720 29
  • Locate and supply serial number when ordering new gearbox to order the correct gearbox. All gearboxes are backward compatible, 405-200-720 & 405-000-148 gearboxes should be used with 417-001-300 mount.
405-000-015 30
  • Locate and supply serial number when ordering new gearbox to order the correct gearbox. All gearboxes are backward compatible, 405-200-720 & 405-000-148 gearboxes should be used with 417-001-300 mount.
405-000-164 31
  • Locate and supply serial number when ordering new gearbox to order the correct gearbox. All gearboxes are backward compatible, 405-200-720 & 405-000-148 gearboxes should be used with 417-001-300 mount.
504-000-133 34
  • Use Part number 407-000-028 - for Spindle repair kit
403-000-167 38
  • 403-000-167 – Idler repair kit contains 2 x Bearings,1 x circlip, 1 x Washer

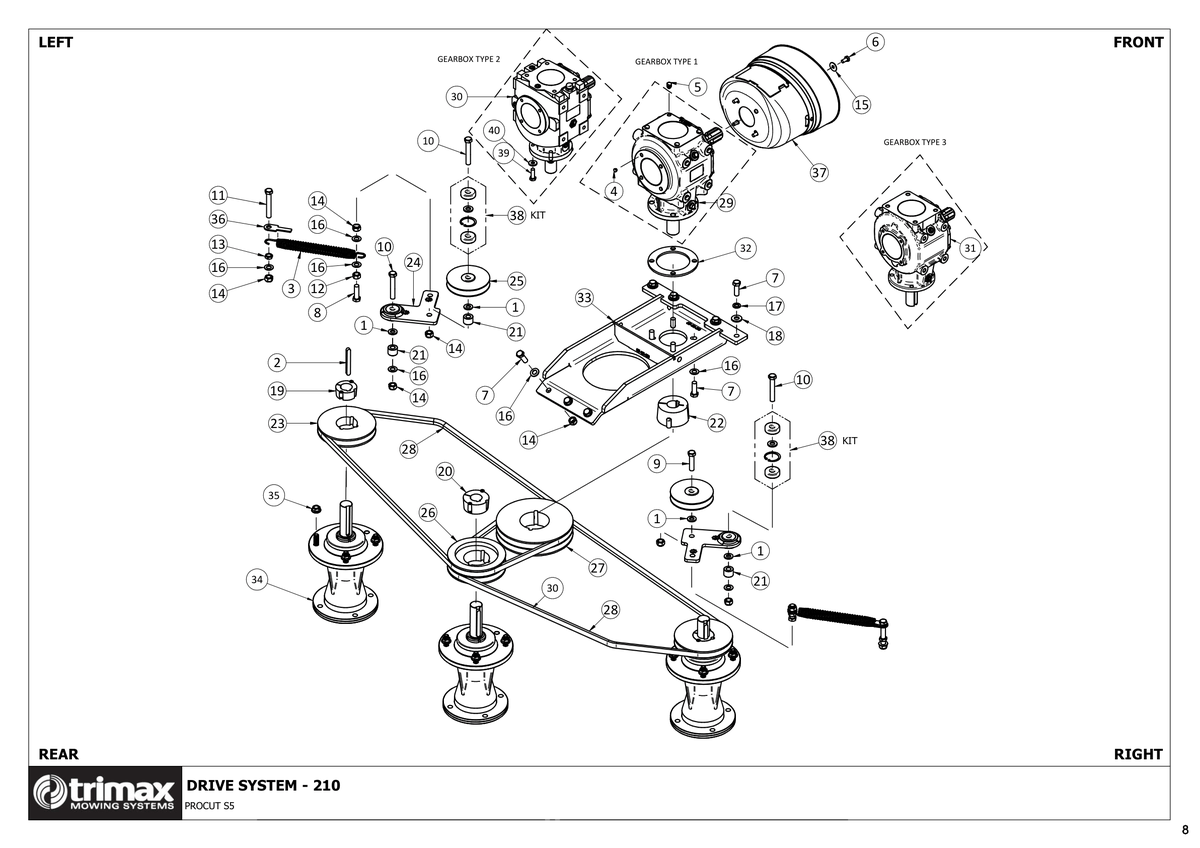

756 - Procut S5 210 - Drive System

ProCut S5 210

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Hardened [108-071-513] Washer - Hardened 108-071-513
$4.58
2 Key - 10 x 8 x 85 - Trimax Specification [205-000-003] Key - 10 x 8 x 85 - Trimax Specification 205-000-003
$8.60
3 Spring - Deck Belt Tensioner - Trimax Specification - [207-000-009] Spring - Deck Belt Tensioner - Trimax Specification - 207-000-009
$12.09
4 Blanking Plug - M8 [209-000-029] Blanking Plug - M8 209-000-029
Price on Request
5 Blanking Plug - M12 [209-900-012] Blanking Plug - M12 209-900-012
Price on Request
6 Bolt - Hex Head - M8 x 16 - Trimax Specification [301-208-163] Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163
$0.61
7 Bolt - Hex Head - M12 x 35 - Trimax Specification [301-212-353] Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353
$2.71
8 Bolt - Hex Head M12 x 40 - Trimax Specification - [301-212-403] Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403
$2.93
9 Bolt - Hex Head M12 x 50 - Trimax Specification - [301-212-503] Bolt - Hex Head M12 x 50 - Trimax Specification - 301-212-503
$3.16
10 Bolt - Hex Head - M12 x 75 - Trimax Specification [301-212-753] Bolt - Hex Head - M12 x 75 - Trimax Specification 301-212-753
Price on Request
11 Bolt - Hex Head - M12 x 80 - Trimax Specification [301-212-803] Bolt - Hex Head - M12 x 80 - Trimax Specification 301-212-803
$3.34
12 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
$0.57
13 Nut - Half [307-212-023] Nut - Half 307-212-023
$1.13
14 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
$0.67
15 Washer - Fender - M8 [308-080-073] Washer - Fender - M8 308-080-073
Price on Request
16 Washer - Flat M12 - Trimax Specification - [308-120-013] Washer - Flat M12 - Trimax Specification - 308-120-013
$0.45
17 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
$0.45
18 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
$1.84
19 Bush - Taper Lock [402-000-078] Bush - Taper Lock 402-000-078
$22.23
20 Bush - Taper Lock [402-000-090] Bush - Taper Lock 402-000-090
$31.92
21 Idler Arm Spacer Bush - 19mm [402-000-134] Idler Arm Spacer Bush - 19mm i See notes section for usage notes on this part 402-000-134
$23.92
22 Bush - Taper Lock [402-060-820] Bush - Taper Lock 402-060-820
$39.57
23 Pulley - Taper Lock [403-000-083] Pulley - Taper Lock 403-000-083
$75.45
24 Idler Arm - Assembly [403-000-123] Idler Arm - Assembly i See notes section for usage notes on this part 403-000-123
$159.00
25 Pulley Assembly - Idler [403-360-111] Pulley Assembly - Idler i See notes section for usage notes on this part 403-360-111
$112.00
26 Pulley - Taper Lock [403-361-140] Pulley - Taper Lock 403-361-140
$62.66
27 Pulley -Taper Lock - Trimax Specification [403-361-261] Pulley -Taper Lock - Trimax Specification 403-361-261
Price on Request
28 Vee Belt - Trimax Specification [404-040-830] Vee Belt - Trimax Specification 404-040-830
$50.00
29 Gearbox - Standard Rotation - 540rpm [405-200-720] Gearbox - Standard Rotation - 540rpm i See notes section for usage notes on this part 405-200-720
$1,712.00
30 Gearbox [405-000-015] Gearbox i See notes section for usage notes on this part 405-000-015
$1,712.00
31 Gearbox - 540rpm - Trimax Specification [405-000-164] Gearbox - 540rpm - Trimax Specification i See notes section for usage notes on this part 405-000-164
Price on Request
32 Gearbox Spacer Disc [417-001-300] Gearbox Spacer Disc 417-001-300
$37.20
33 Gearbox Mount Weldment [417-001-297] Gearbox Mount Weldment 417-001-297
$713.00
34 Spindle Assembly - Steadfast - With Keyway [504-000-133] Spindle Assembly - Steadfast - With Keyway i See notes section for usage notes on this part 504-000-133
$1,179.00
35 Nut - Flange [450-000-078] Nut - Flange 450-000-078
$3.85
37 PTO Cone - Wide angle - 52mm PCD [410-000-608] PTO Cone - Wide angle - 52mm PCD 410-000-608
Price on Request
38 Kit - Idler Repair [403-000-167] Kit - Idler Repair i See notes section for usage notes on this part 403-000-167
Price on Request
39 Bolt - Hex Head - M10 x 30 - Trimax Specification [301-210-303] Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303
$0.86
40 Washer - Heavy Flat [308-100-063] Washer - Heavy Flat 308-100-063
$0.85
