NOTES:

Part # Number on image Usage Notes
202-447-980 1
  • 412-000-649 – Kit Height Adjuster Rod & Collar contains: 1 x 202-447-980 – Roll Pin 1 x 308-160-063 – Washer - Nordloc 1 x 412-000-609 – Set Screw 1 x 412-850-260 – Collar - Height Adjuster Current
208-442-650 2
  • 412-000-648 Kit Height Adjuster block contains: 1x 208-442-650 – Grease Nipple - 90° 1 x 301-216-653 – Bolt - Hex Head 1 x 307-216-013 – Nut - Plain 1 x 308-160-083 – Washer - Nordloc 1 x 412-000-255 – Height Adjuster Block
301-216-653 3
  • 412-000-648 Kit Height Adjuster block contains: 1x 208-442-650 – Grease Nipple - 90° 1 x 301-216-653 – Bolt - Hex Head 1 x 307-216-013 – Nut - Plain 1 x 308-160-083 – Washer - Nordloc 1 x 412-000-255 – Height Adjuster Block
307-216-013 8
  • 412-000-648 Kit Height Adjuster block contains: 1x 208-442-650 – Grease Nipple - 90° 1 x 301-216-653 – Bolt - Hex Head 1 x 307-216-013 – Nut - Plain 1 x 308-160-083 – Washer - Nordloc 1 x 412-000-255 – Height Adjuster Block
308-160-063 11
  • 412-000-649 – Kit Height Adjuster Rod & Collar contains: 1 x 202-447-980 – Roll Pin 1 x 308-160-063 – Washer - Nordloc 1 x 412-000-609 – Set Screw 1 x 412-850-260 – Collar - Height Adjuster Current
308-160-083 12
  • 412-000-648 Kit Height Adjuster block contains: 1x 208-442-650 – Grease Nipple - 90° 1 x 301-216-653 – Bolt - Hex Head 1 x 307-216-013 – Nut - Plain 1 x 308-160-083 – Washer - Nordloc 1 x 412-000-255 – Height Adjuster Block
404-320-122 15
  • Roller Scraper available as an option
412-000-148 16
  • Antibounce Skid available as an option
412-000-255 17
  • 412-000-648 Kit Height Adjuster block contains: 1x 208-442-650 – Grease Nipple - 90° 1 x 301-216-653 – Bolt - Hex Head 1 x 307-216-013 – Nut - Plain 1 x 308-160-083 – Washer - Nordloc 1 x 412-000-255 – Height Adjuster Block
412-000-609 19
  • 412-000-649 – Kit Height Adjuster Rod & Collar contains: 1 x 202-447-980 – Roll Pin 1 x 308-160-063 – Washer - Nordloc 1 x 412-000-609 – Set Screw 1 x 412-850-260 – Collar - Height Adjuster Current
412-850-260 20
  • 412-000-649 – Kit Height Adjuster Rod & Collar contains: 1 x 202-447-980 – Roll Pin 1 x 308-160-063 – Washer - Nordloc 1 x 412-000-609 – Set Screw 1 x 412-850-260 – Collar - Height Adjuster Current
412-000-649 25
  • 412-000-649 – Kit Height Adjuster Rod & Collar contains: 1 x 202-447-980 – Roll Pin 1 x 308-160-063 – Washer - Nordloc 1 x 412-000-609 – Set Screw 1 x 412-850-260 – Collar - Height Adjuster Current

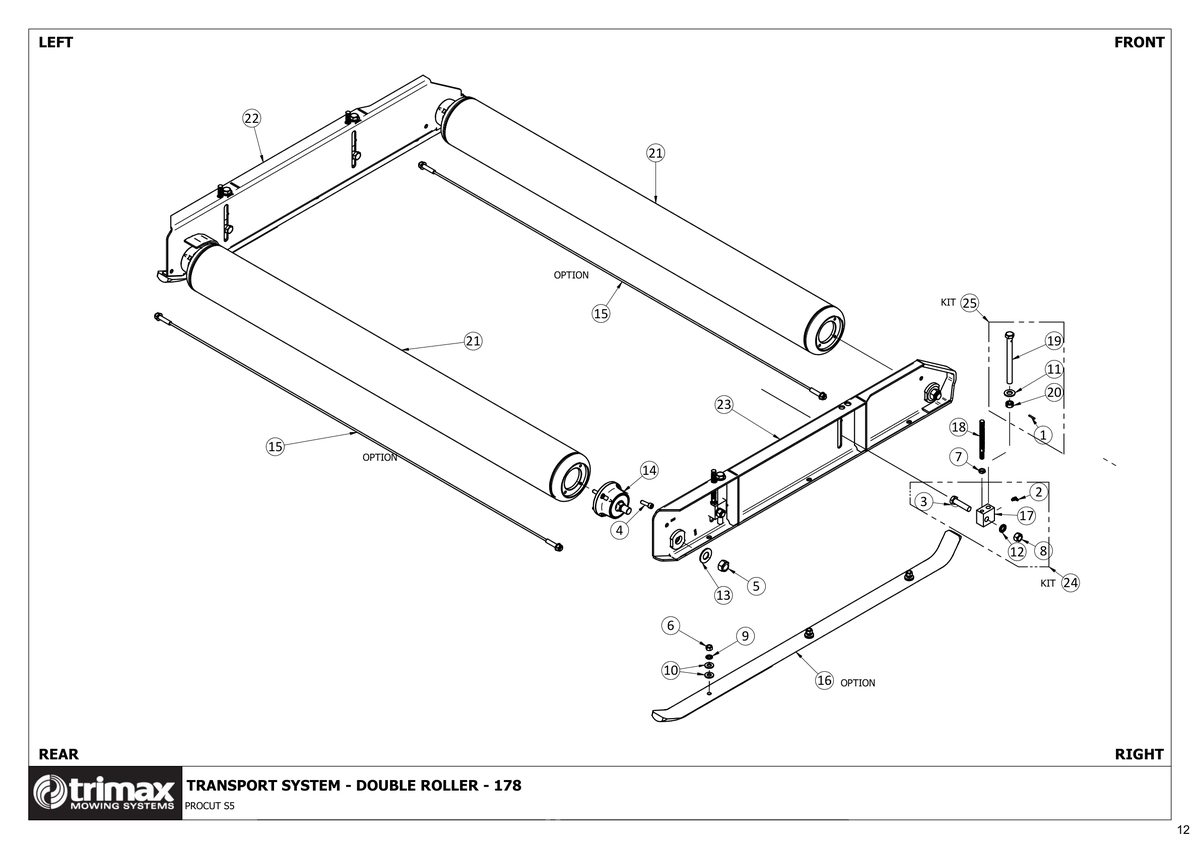

756 - Procut S5 178 - Transport System Double Roller

ProCut S5 178

Grouped product items
No. Image Product Name Price Quantity
1 Roll Pin [202-447-980] Roll Pin i See notes section for usage notes on this part 202-447-980
$5.14
2 Grease Nipple [208-442-650] Grease Nipple i See notes section for usage notes on this part 208-442-650
$5.89
3 Bolt [301-216-653] Bolt i See notes section for usage notes on this part 301-216-653
$6.76
4 Cap Screw [303-210-353] Cap Screw 303-210-353
$3.09
5 Nut - Hex Nyloc - M22 x 1.5 [307-122-053] Nut - Hex Nyloc - M22 x 1.5 307-122-053
$7.60
6 Nut - Plain [307-212-013] Nut - Plain 307-212-013
$0.57
7 Nut - Half [307-212-023] Nut - Half 307-212-023
$1.13
8 Nut - Plain [307-216-013] Nut - Plain i See notes section for usage notes on this part 307-216-013
$1.61
9 Washer - Spring [308-120-043] Washer - Spring 308-120-043
$0.45
10 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
$1.84
11 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat i See notes section for usage notes on this part 308-160-063
$1.65
12 Washer - Nordloc [308-160-083] Washer - Nordloc i See notes section for usage notes on this part 308-160-083
$5.63
13 Washer - Heavy Flat M24 ZP (Ø25mm ID) [308-240-063] Washer - Heavy Flat M24 ZP (Ø25mm ID) 308-240-063
$1.98
14 Roller Bearing Assembly - Titan [401-000-035] Roller Bearing Assembly - Titan 401-000-035
$284.00
15 Scraper - Roller 178 [404-320-122] Scraper - Roller 178 i See notes section for usage notes on this part 404-320-122
$80.25
16 Skid Assembly - Anti-Bounce [412-000-148] Skid Assembly - Anti-Bounce i See notes section for usage notes on this part 412-000-148
$176.55
17 Height Adjuster Block [412-000-255] Height Adjuster Block i See notes section for usage notes on this part 412-000-255
$86.67
18 Height Indicator Rod - 6 Sided [412-000-580] Height Indicator Rod - 6 Sided 412-000-580
$46.29
19 Set Screw [412-000-609] Set Screw i See notes section for usage notes on this part 412-000-609
$56.00
20 Collar - Height Adjuster [412-850-260] Collar - Height Adjuster i See notes section for usage notes on this part 412-850-260
$36.93
21 Roller Weldment [414-000-157] Roller Weldment 414-000-157
$930.00
22 Side Channel Weldment - Titan Bearing - LH [412-000-594] Side Channel Weldment - Titan Bearing - LH 412-000-594
$626.82
23 Side Channel Weldment - Titan Bearing - RH [412-000-595] Side Channel Weldment - Titan Bearing - RH 412-000-595
$626.82
25 Kit - Height Adjuster Rod and Collar [412-000-649] Kit - Height Adjuster Rod and Collar i See notes section for usage notes on this part 412-000-649
$89.75
