NOTES:

Part #	Number on image	Usage Notes
412-000-128	10	Heavy duty trailing arm with wear skid available as option P/N 412-000-260
412-000-129	11	Heavy duty trailing arm with wear skid available as option P/N 412-000-261

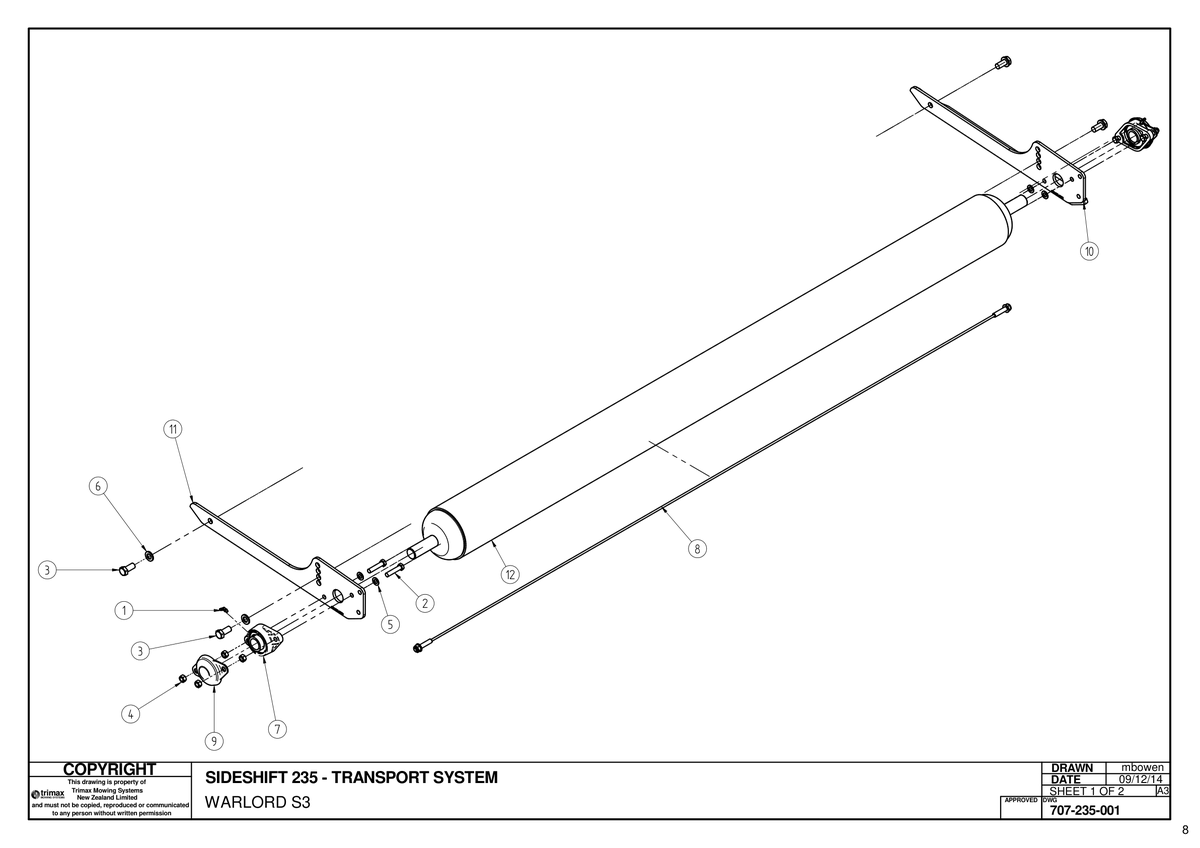

753 - Warlord S3 235 - Transport System 235

Warlord S3 235

Grouped product items
No.	Product Name	Price
1	Grease Nipple 208-442-620 More Info >	$4.47
2	Bolt 301-212-553 More Info >	$2.78
3	Bolt 301-216-353 More Info >	$3.64
4	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	$0.57
5	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	$0.45
6	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	$5.63
7	Roller Bearing Assembly - 1-3/8" x UCFL207 - 401-020-701 More Info >	$86.00
8	Roller Scraper 404-480-483 More Info >	$75.00
9	Cap 410-464-072 More Info >	$36.38
10	Trailing Arm Weldment - RH i See notes section for usage notes on this part 412-000-128 More Info >	$238.21
11	Trailing Arm Weldment - LH i See notes section for usage notes on this part 412-000-129 More Info >	$238.21
12	Roller Weldment 235 414-480-480 More Info >	$1,064.65
