NOTES:

Part #	Number on image	Usage Notes
417-001-670	21	Bolted on rear hinge pin used form serial number 753-175-301-1054531 onwards,Use part number 417-000-186 - Hinge Pin - Flap 175 for welded on pin

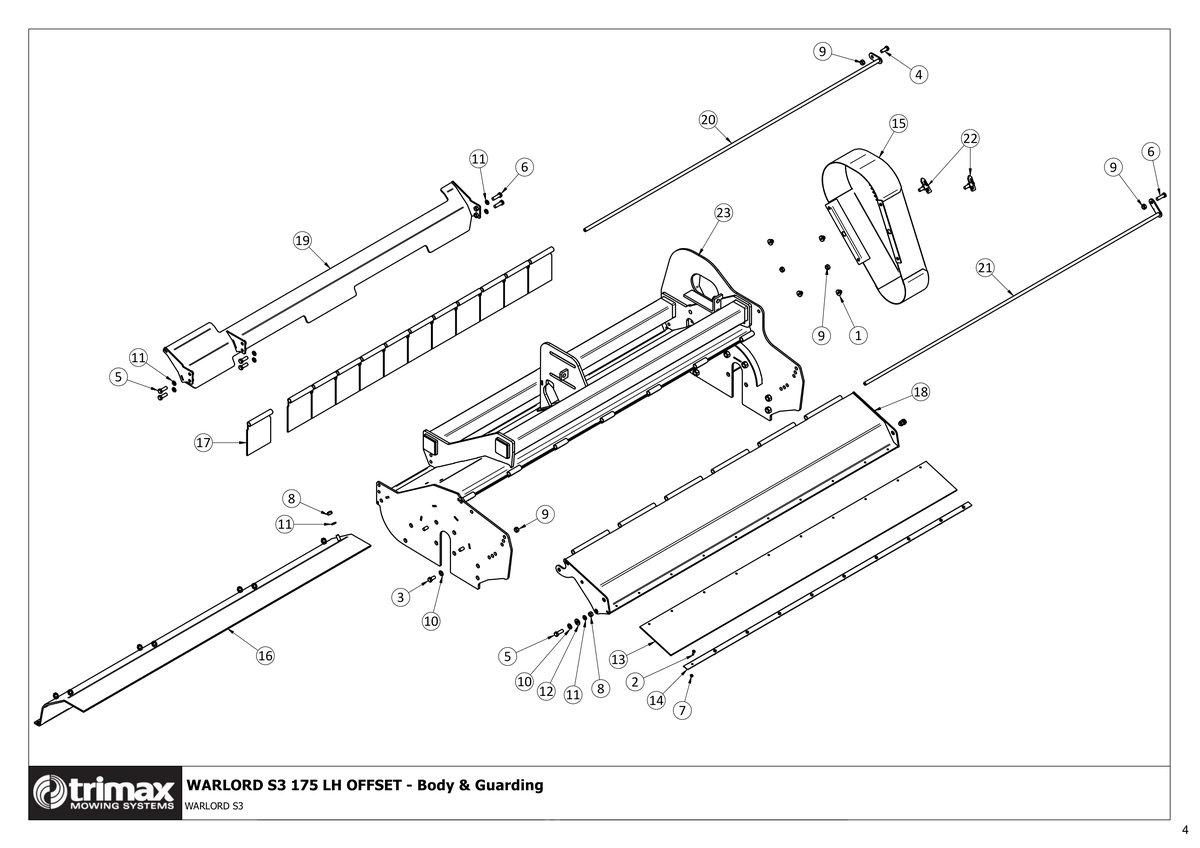

753 - Warlord S3 175 - Body & Guarding - LH Offset

Warlord S3 175

Grouped product items
No.	Product Name	Price
1	Button - Anti Rattle 209-000-006 More Info >	$11.60
2	Bolt - Hex Head - M6 x 20 - Trimax Specification 301-206-203 More Info >	$0.12
3	Bolt - Hex Head - M12 x 25 - Trimax Specification 301-212-253 More Info >	$2.93
4	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	$2.36
5	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	$2.71
6	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	$2.93
7	Nut - Nyloc 307-206-053 More Info >	$0.54
8	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	$0.57
9	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	$0.67
10	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	$0.45
11	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	$0.45
12	Washer - Heavy Flat 308-120-063 More Info >	$1.84
13	Flap 410-480-202 More Info >	$113.14
14	Clamp Strip 410-480-212 More Info >	$71.04
15	Belt Guard Weldment - wDecal/AntiRatl Bungs 410-480-443 More Info >	Price on Request
16	Body 417-000-496 More Info >	Price on Request
17	Flap Weldment - Front WL3 417-001-050 More Info >	$57.00
18	Rear Flap Assembly - 175 Warlord 417-001-076	Price on Request
19	Pruning Guide Weldment - LH Offset 175 417-001-080 More Info >	Price on Request
20	Hinge Rod Weldment - Front Flap 175 Warlord S3 417-001-094 More Info >	$40.87
21	Hinge Rod Weldment - Rear Flap 175 Warlord S3 i See notes section for usage notes on this part 417-001-670	Price on Request
22	Drop Latch - Anti-loose 423-080-400 More Info >	$24.60
23	Body Weldment - Warlord S3 LH Offset 175 502-000-094 More Info >	Price on Request
