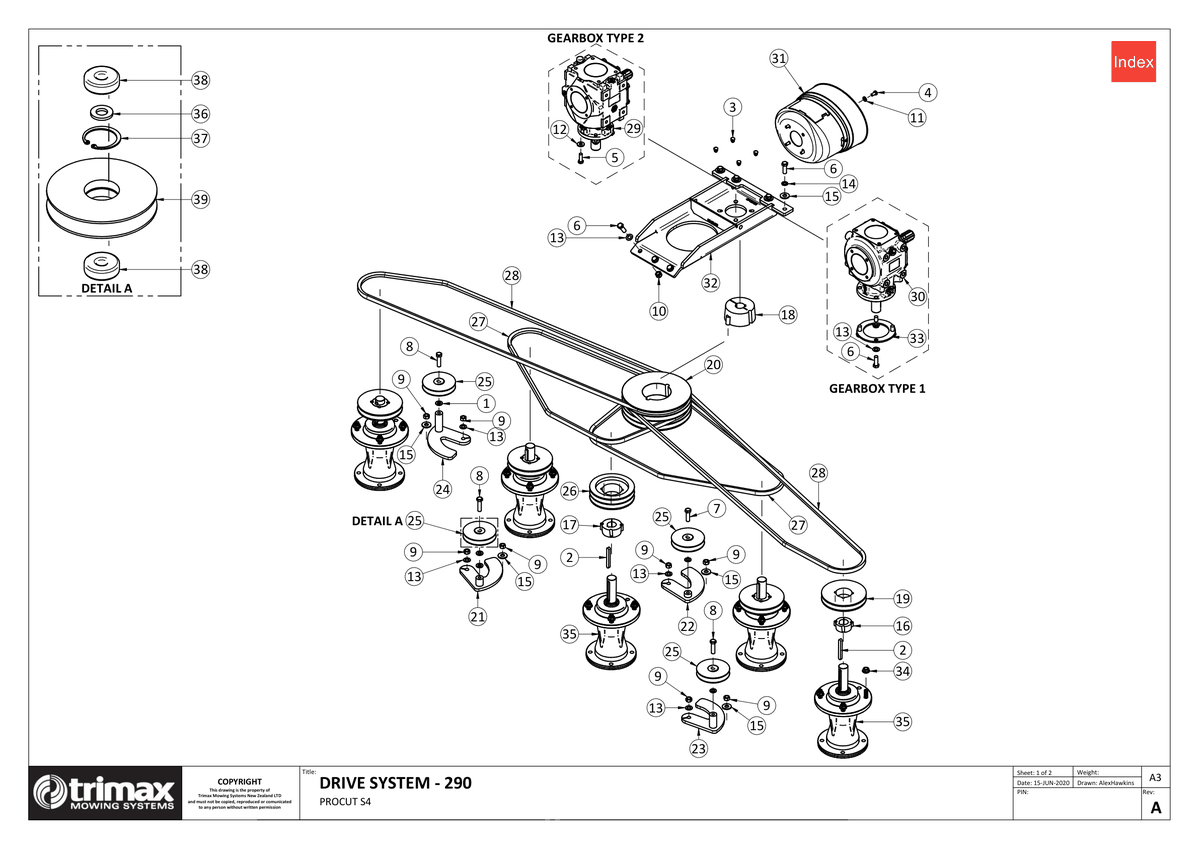

736 - Procut S4 290 - Drive System (Taper Lock)

ProCut S4 290

Grouped product items
No.	Product Name	Price
1	Washer - Hardened 108-071-513 More Info >	$4.58
2	Key - 10 x 8 x 85 - Trimax Specification 205-000-003 More Info >	$6.85
3	Blanking Plug - M12 209-900-012 More Info >	$0.45
4	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	$0.61
5	Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303 More Info >	$0.86
6	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	$2.71
7	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	$2.93
8	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	$3.04
9	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	$0.57
10	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	$0.67
11	Washer - Flat 308-080-016 More Info >	$0.12
12	Washer - Heavy Flat 308-100-063 More Info >	$0.85
13	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	$0.45
14	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	$0.45
15	Washer - Heavy Flat 308-120-063 More Info >	$1.84
16	Bush - Taper Lock 402-000-078 More Info >	$22.23
17	Bush - Taper Lock 402-000-090 More Info >	$31.92
18	Bush - Taper Lock 402-060-680 More Info >	$83.73
19	Pulley - Taper Lock 403-000-083 More Info >	$75.45
20	Pulley - Taper Lock - Trimax Specification 403-000-129 More Info >	$201.92
21	Idler Tower Incl Base 403-330-423 More Info >	$53.03
22	Idler Tower Incl Base 403-330-424 More Info >	$89.27
23	Idler Tower Incl Base 403-330-432 More Info >	$71.54
24	Idler Tower Incl Base 403-330-442 More Info >	$88.29
25	Pulley Assembly - Idler 403-360-111 More Info >	$112.40
26	Pulley - Taper Lock 403-361-140 More Info >	$62.66
27	Vee Belt - Trimax Specification 404-040-750 More Info >	$48.00
28	Vee Belt - Trimax Specification 404-041-140 More Info >	$54.00
29	Gearbox 405-000-015 More Info >	$1,712.00
30	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	$1,712.00
31	PTO Cone - Wide angle 410-000-257 More Info >	$110.86
32	Gearbox Mount Weldment 417-001-297 More Info >	$570.05
33	Gearbox Spacer Disc 417-001-300 More Info >	$37.20
34	Nut - Flange 450-000-078 More Info >	$3.85
35	Spindle Assembly - Steadfast - With Keyway 504-000-133 More Info >	$1,114.73
37	Circlip/Snap Ring - Internal 204-820-371 More Info >	$6.21
38	Bearing - Trimax Specification - 401-021-900 More Info >	$18.65
39	Pulley - Idler 403-360-110 More Info >	$63.89
