NOTES:

Part #	Number on image	Usage Notes
108-071-513	1	Quantity varies, use as required
405-000-015	32	Both gear boxes are backward compatible, 405-200-720 Gearbox should be used with 417-001-300 mount
405-200-720	33	Both gear boxes are backward compatible, 405-200-720 Gearbox should be used with 417-001-300 mount

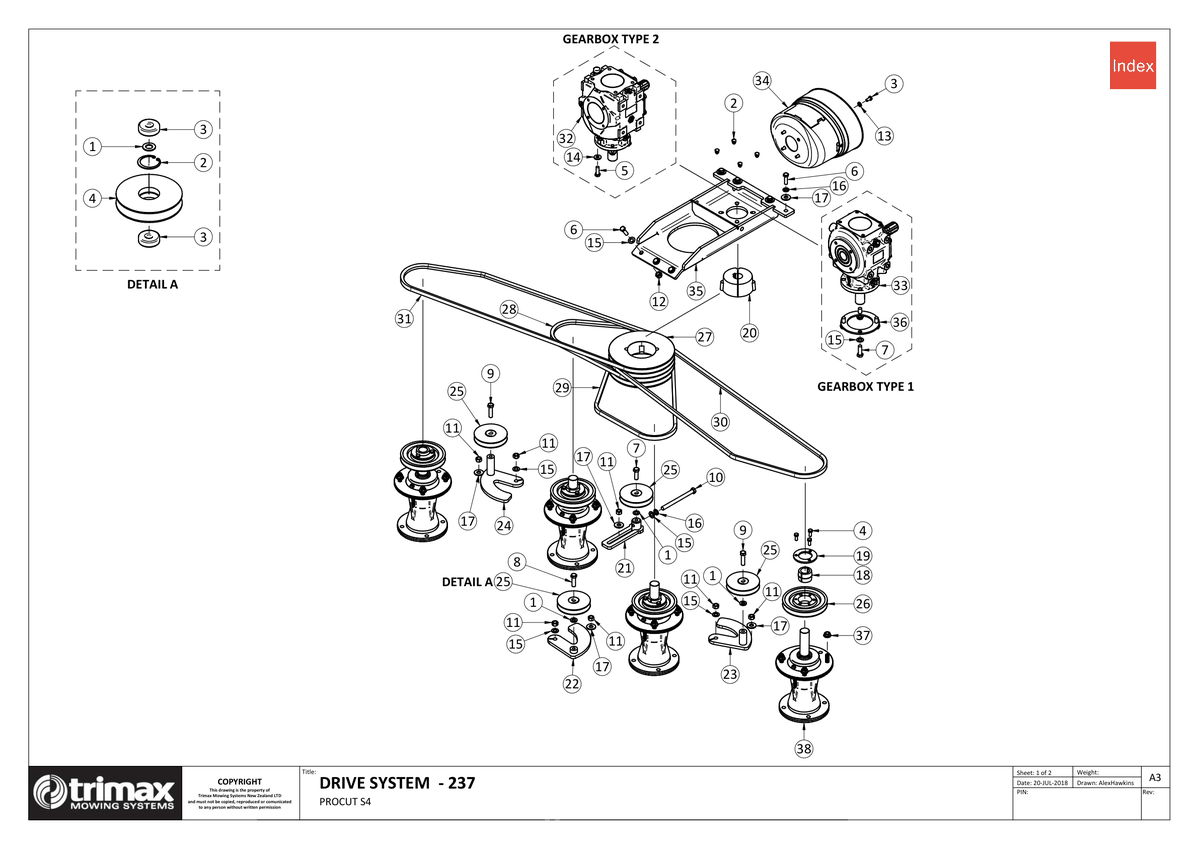

736 - Procut S4 237 - Drive System

ProCut S4 237

Grouped product items
No.	Product Name	Price
1	Washer - Hardened i See notes section for usage notes on this part 108-071-513 More Info >	$4.58
2	Blanking Plug - M12 209-900-012 More Info >	$0.45
3	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	$0.61
4	Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203 More Info >	$0.90
5	Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303 More Info >	$0.86
6	Bolt - Hex Head - M10 x 35 - Trimax Specification 301-210-353 More Info >	$1.67
7	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	$2.71
8	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	$2.93
9	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	$3.04
10	Set Screw 313-612-153 More Info >	$19.47
11	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	$0.57
12	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	$0.67
13	Washer - Flat 308-080-016 More Info >	$0.12
14	Washer - Heavy Flat 308-100-063 More Info >	$0.85
15	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	$0.45
16	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	$0.45
17	Washer - Heavy Flat 308-120-063 More Info >	$1.84
18	Bush 402-060-320 More Info >	$30.58
19	Retainer Ring 402-060-450 More Info >	$17.30
20	Bush - Taper Lock 402-060-680 More Info >	$83.73
21	Idler Weldment - Slotted 403-000-105 More Info >	$148.30
22	Idler Tower Incl Base 403-330-424 More Info >	$89.27
23	Idler Tower Incl Base 403-330-432 More Info >	$71.54
24	Idler Tower Incl Base 403-330-442 More Info >	$88.29
25	Pulley Assembly - Idler 403-360-111 More Info >	$112.40
26	Pulley 403-360-300 More Info >	$80.25
27	Pulley - Taper Lock 403-361-290 More Info >	$267.41
28	Vee Belt - Trimax Specification 404-040-460 More Info >	$45.50
29	Vee Belt - Trimax Specification 404-040-520 More Info >	$50.50
30	Vee Belt - Trimax Specification 404-040-900 More Info >	$59.00
31	Vee Belt - Trimax Specification 404-040-920 More Info >	$59.00
32	Gearbox i See notes section for usage notes on this part 405-000-015 More Info >	$1,712.00
33	Gearbox - Standard Rotation - 540rpm i See notes section for usage notes on this part 405-200-720 More Info >	$1,712.00
34	PTO Cone - Wide angle 410-000-257 More Info >	$110.86
35	Gearbox Mount Weldment 417-001-297 More Info >	$570.05
36	Gearbox Spacer Disc 417-001-300 More Info >	$37.20
37	Nut - Flange 450-000-078 More Info >	$3.85
38	Spindle Assembly - Steadfast 504-000-106 More Info >	$1,114.73
1	Washer - Flat 108-071-413 More Info >	$2.88
2	Circlip/Snap Ring - Internal 204-820-371 More Info >	$6.21
3	Bearing - Trimax Specification - 401-021-900 More Info >	$18.65
4	Pulley - Idler 403-360-110 More Info >	$63.89
