NOTES:

Part #	Number on image	Usage Notes
108-071-513	1	The quantity on this can vary, also the thin washer can be used here (108-071-413)
405-000-015	25	Locate and supply serial number when ordering new gearbox to order the correct gearbox. Both gear boxes are backward compatible, 405-200-720 Gearbox should be used with 417-001-300 mount.
405-200-720	26	Locate and supply serial number when ordering new gearbox to order the correct gearbox. Both gear boxes are backward compatible, 405-200-720 Gearbox should be used with 417-001-300 mount.
504-000-133	31	The new spindle with keyway is backwards compatible with prior machines

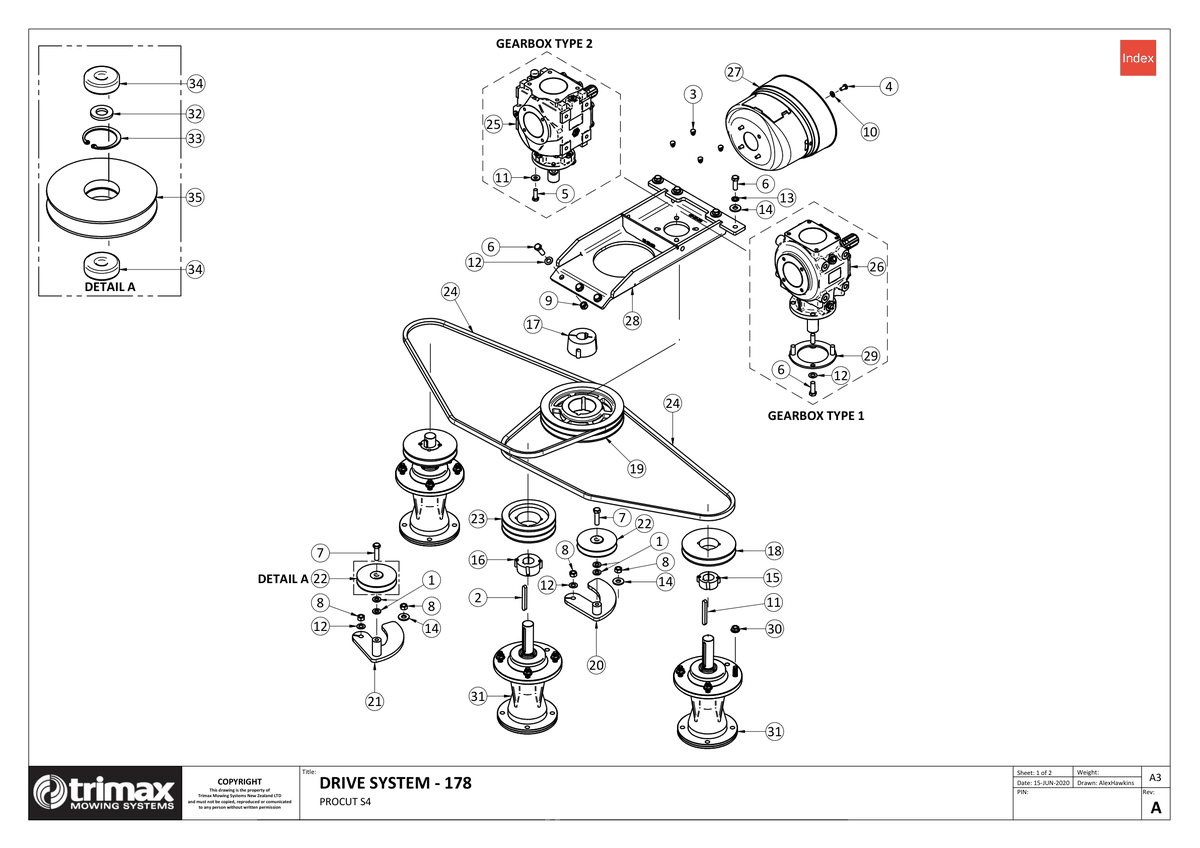

736 - Procut S4 178 - Drive System - Taper Lock Pulley

ProCut S4 178

Grouped product items
No.	Product Name	Price
1	Washer - Hardened i See notes section for usage notes on this part 108-071-513 More Info >	$4.58
2	Key - 10 x 8 x 85 - Trimax Specification 205-000-003 More Info >	$6.85
3	Blanking Plug - M12 209-900-012 More Info >	$0.45
4	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	$0.61
5	Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303 More Info >	$0.86
6	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	$2.71
7	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	$3.04
8	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	$0.57
9	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	$0.67
10	Washer - Flat 308-080-016 More Info >	$0.12
11	Washer - Heavy Flat 308-100-063 More Info >	$0.85
12	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	$0.45
13	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	$0.45
14	Washer - Heavy Flat 308-120-063 More Info >	$1.84
15	Bush - Taper Lock 402-000-078 More Info >	$22.23
16	Bush - Taper Lock 402-000-090 More Info >	$31.92
17	Bush - Taper Lock 402-060-820 More Info >	$39.57
18	Pulley - Taper Lock 403-000-083 More Info >	$75.45
19	Pulley - Taper Lock - Trimax Specification 403-000-128 More Info >	$171.51
20	Idler Tower Incl Base 403-330-423 More Info >	$53.03
21	Idler Tower Incl Base 403-330-432 More Info >	$71.54
22	Pulley Assembly - Idler 403-360-111 More Info >	$112.40
23	Pulley - Taper Lock 403-361-140 More Info >	$62.66
24	Vee Belt - Trimax Specification 404-040-750 More Info >	$48.00
25	Gearbox i See notes section for usage notes on this part 405-000-015 More Info >	$1,712.00
26	Gearbox - Standard Rotation - 540rpm i See notes section for usage notes on this part 405-200-720 More Info >	$1,712.00
27	PTO Cone - Wide angle 410-000-257 More Info >	$110.86
28	Gearbox Mount Weldment 417-001-297 More Info >	$570.05
29	Gearbox Spacer Disc 417-001-300 More Info >	$37.20
30	Nut - Flange 450-000-078 More Info >	$3.85
31	Spindle Assembly - Steadfast - With Keyway i See notes section for usage notes on this part 504-000-133 More Info >	$1,114.73
33	Circlip/Snap Ring - Internal 204-820-371 More Info >	$6.21
34	Bearing - Trimax Specification - 401-021-900 More Info >	$18.65
35	Pulley - Idler 403-360-110 More Info >	$63.89
