NOTES:

Part #	Number on image	Usage Notes
403-360-110	13	P/N 403-360-111 Pulley assembly c/w bearings

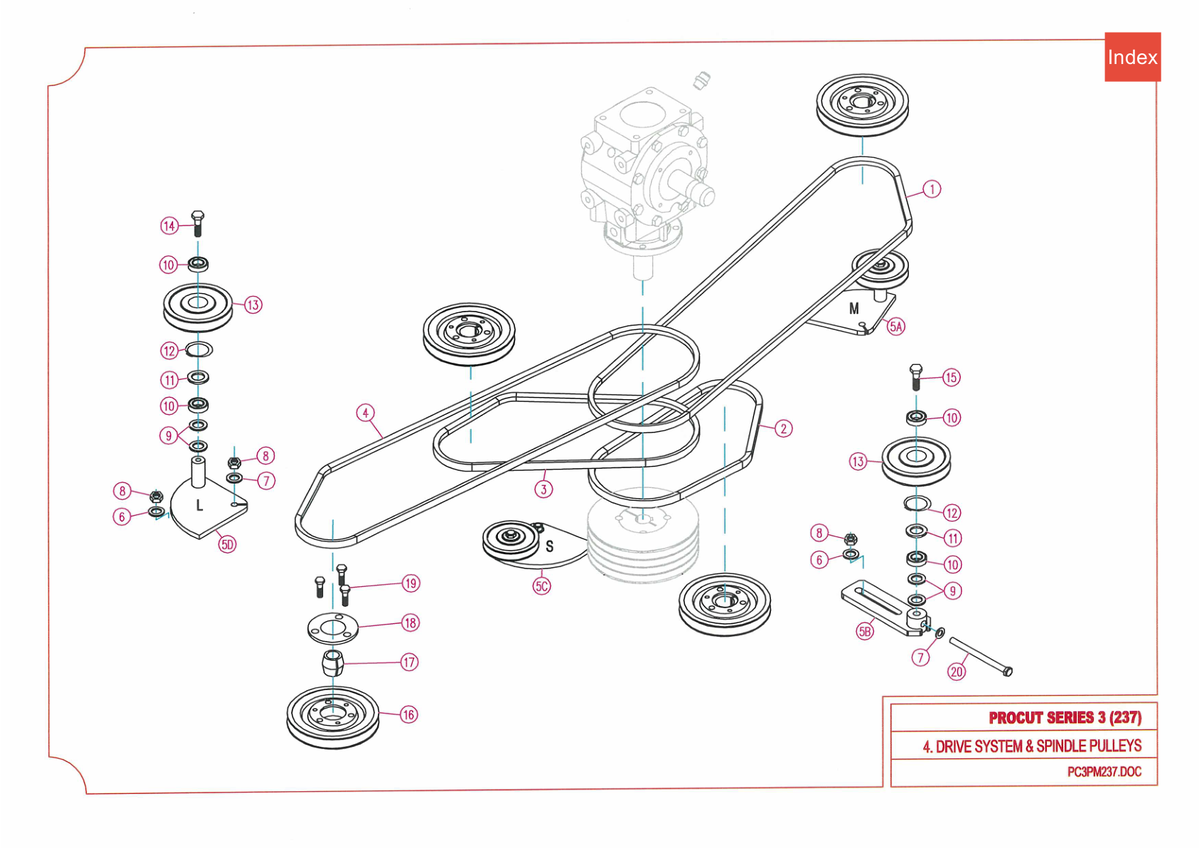

736-237 - Procut S3 - Drive System & Spindle Pulleys

ProCut S3 237

Grouped product items
No.	Product Name	Price
1	Vee Belt - Trimax Specification 404-040-920 More Info >	$59.00
2	Vee Belt - Trimax Specification 404-040-460 More Info >	$45.50
3	Vee Belt - Trimax Specification 404-040-520 More Info >	$50.50
4	Vee Belt - Trimax Specification 404-040-900 More Info >	$59.00
6	Washer - Heavy Flat 308-120-063 More Info >	$1.84
7	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	$0.45
8	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	$0.57
10	Bearing - Trimax Specification - 401-021-900 More Info >	$18.65
11	Washer - Flat 108-071-413 More Info >	$2.88
12	Circlip/Snap Ring - Internal 204-820-371 More Info >	$6.21
13	Pulley - Idler i See notes section for usage notes on this part 403-360-110 More Info >	$63.89
14	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	$3.04
15	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	$2.93
16	Pulley 403-360-300 More Info >	$80.25
17	Bush 402-060-320 More Info >	$30.58
18	Retainer Ring 402-060-450 More Info >	$17.30
19	Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203 More Info >	$0.90
20	Set Screw 313-612-163	Price on Request
