NOTES:

Part #	Number on image	Usage Notes
404-000-125	24	All Machines after serial number 727-493-400-033 / 727-610-410-044 use this part for unlock Rope All Machines after serial number 727-493-400-033 / 727-610-410-044 use this part for unlock Rope
406-000-084	27	PTO Shaft 406-000-084 includes PTO Shaft 406-340-890 and PTO Decal PTO Shaft 406-000-084 includes PTO Shaft 406-340-890 and PTO Decal

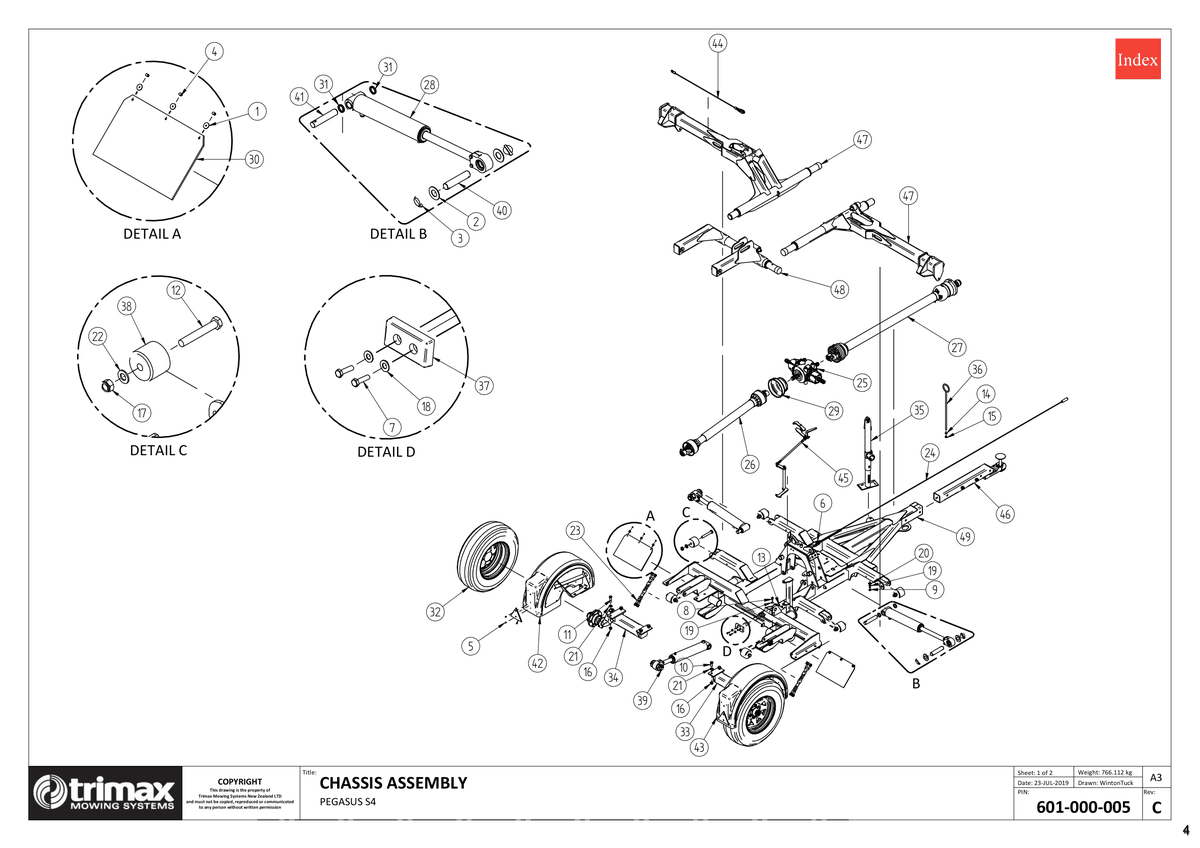

727 - Pegasus S4 - Chassis Assembly

Pegasus S4 493, Pegasus S4 610

Grouped product items
No.	Product Name	Price
1	Washer - Fender 108-031-413 More Info >	$1.10
2	Washer - Flat 108-224-014 More Info >	$9.21
3	Linch Pin 203-300-700 More Info >	$2.76
4	Blind Rivet 213-000-004 More Info >	$1.02
6	Bow Shackle - Stainless - Ø6mm 214-446-250 More Info >	$9.42
7	Bolt 301-208-303 More Info >	$0.62
8	Bolt 301-212-253 More Info >	$2.93
9	Bolt 301-212-303 More Info >	$2.36
10	Bolt 301-216-403 More Info >	$3.85
11	Bolt 301-216-603 More Info >	$3.85
12	Bolt 301-620-133 More Info >	$16.02
13	Nut - Nyloc 307-208-053 More Info >	$0.17
14	Nut - Plain 307-210-013 More Info >	$0.48
15	Nut - Nyloc 307-210-053 More Info >	$0.57
16	Nut - Nyloc 307-216-053 More Info >	$1.02
17	Nut - Nyloc 307-220-053 More Info >	$1.57
18	Washer - Flat 308-100-013 More Info >	$0.54
19	Washer - Spring 308-120-043 More Info >	$0.45
20	Washer - Heavy Flat 308-120-063 More Info >	$1.84
21	Washer - Heavy Flat 308-160-063 More Info >	$1.65
22	Washer - Heavy Flat 308-200-064 More Info >	$1.02
24	Release Rope Assembly 4.5m i See notes section for usage notes on this part 404-000-125 More Info >	$86.04
26	PTO Shaft 406-340-570 More Info >	$433.17
27	PTO Shaft Wide Angle-T60 i See notes section for usage notes on this part 406-000-084	Price on Request
28	Lift Ram Assembly 409-845-200 More Info >	$2,122.13
29	Cone - PTO Shield 410-440-403 More Info >	$39.57
31	Spacer Ring - Cut Height 412-000-474 More Info >	$17.25
32	Wheel Assembly - Road 416-842-620 More Info >	$726.75
33	Axle Assembly - Braked/Splined - RH 416-842-740 More Info >	$1,895.00
34	Axle Assembly - Braked/Splined - LH 416-842-750 More Info >	$1,895.00
35	Parking Jack Assembly 418-000-217 More Info >	$353.92
36	Guide 418-000-466 More Info >	$50.05
37	Buffer Pad 418-840-300 More Info >	$44.82
38	Guide Roller 418-844-364 More Info >	$98.01
39	Pin - Hydraulic Cylinder 419-845-550 More Info >	$82.44
40	Pin - Hydraulic Cylinder 419-845-560 More Info >	$82.49
41	Pin - Hydraulic Cylinder 419-845-561 More Info >	$21.88
43	Mudguard Assembly - Pegasus S4 RH 506-000-014 More Info >	$554.67
44	Safety Rope Assembly - Transport 506-000-025 More Info >	$116.01
