NOTES:

Part #	Number on image	Usage Notes
108-071-413	1	The quantiy on this can vary, also the thick washer can be used here (108-071-513)
504-000-133	33	The new spindle with keyway is backwards compatible with prior machines

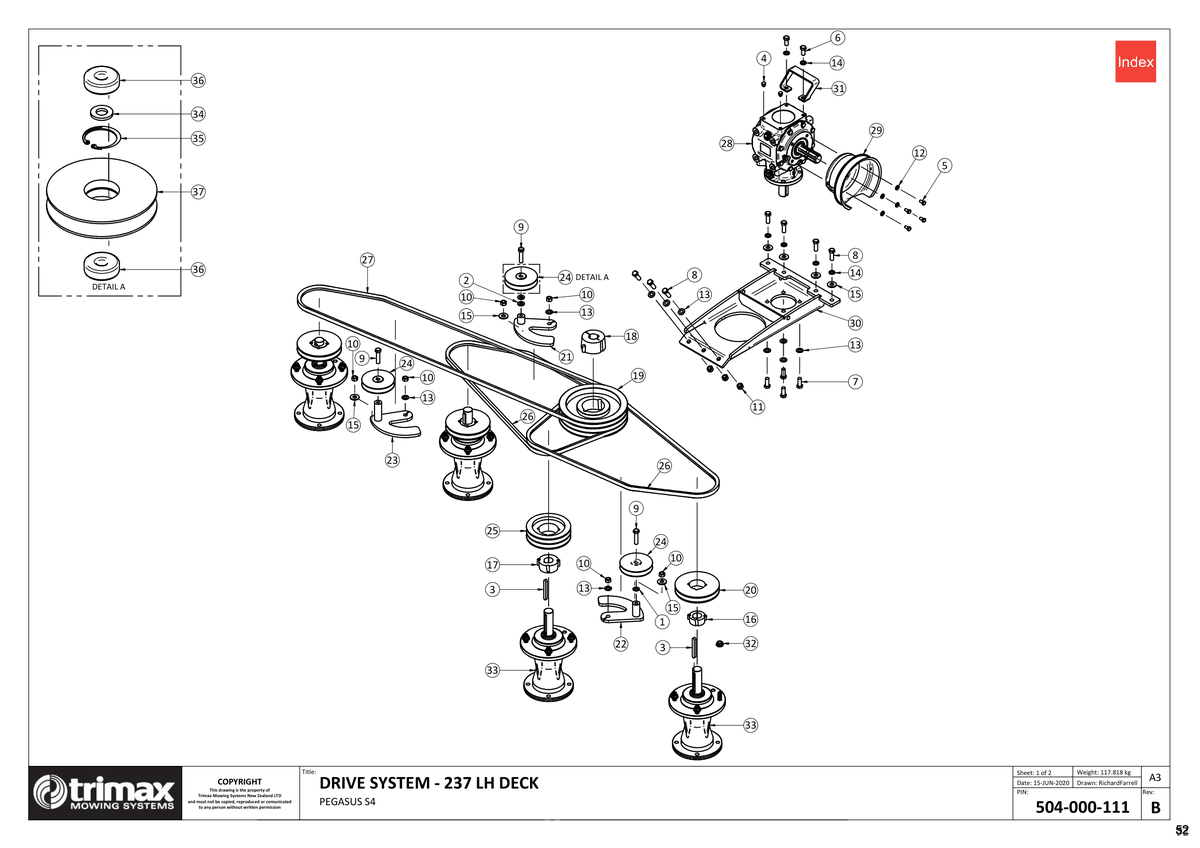

727 - Pegasus S4 610 - Drive System 237 LH - Taper Pulley

Pegasus S4 610

Grouped product items
No.	Product Name	Price
1	Washer - Flat i See notes section for usage notes on this part 108-071-413 More Info >	$2.88
2	Washer - Hardened 108-071-513 More Info >	$4.58
3	Key - 10 x 8 x 85 - Trimax Specification 205-000-003 More Info >	$6.85
4	Blanking Plug - M12 209-900-012 More Info >	Price on Request
5	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	$0.61
6	Bolt - Hex Head - M12 x 25 - Trimax Specification 301-212-253 More Info >	$2.93
7	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	$2.36
8	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	$2.71
9	Bolt - Hex Head - M12 x 50 - Trimax Specification 301-212-503 More Info >	$3.16
10	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	$0.57
11	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	$0.67
12	Washer - Flat 308-080-013 More Info >	$0.05
13	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	$0.45
14	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	$0.45
15	Washer - Heavy Flat 308-120-063 More Info >	$1.84
16	Bush - Taper Lock 402-000-078 More Info >	$22.23
17	Bush - Taper Lock 402-000-090 More Info >	$31.92
18	Bush - Taper Lock 402-060-820 More Info >	$39.57
19	Pulley 403-000-038 More Info >	$230.05
20	Pulley - Taper Lock 403-000-083 More Info >	$75.45
21	Idler Tower Incl Base 403-330-423 More Info >	$53.03
22	Idler Tower Incl Base 403-330-432 More Info >	$71.54
23	Idler Tower Incl Base 403-330-442 More Info >	$88.29
24	Pulley Assembly - Idler 403-360-111 More Info >	$112.00
25	Pulley - Taper Lock 403-361-140 More Info >	$62.66
26	Vee Belt - Trimax Specification 404-040-750 More Info >	$48.00
27	Vee Belt - Trimax Specification 404-041-150 More Info >	$70.00
28	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	$1,712.00
29	Cone - PTO Shield w/ Cut Out 410-440-401 More Info >	$44.94
30	Gearbox Mount Weldment 417-001-197 More Info >	Price on Request
31	Folding 418-000-633 More Info >	Price on Request
32	Nut - Flange 450-000-078 More Info >	$3.85
33	Spindle Assembly - Steadfast - With Keyway i See notes section for usage notes on this part 504-000-133 More Info >	$1,179.00
35	Circlip/Snap Ring - Internal 204-820-371 More Info >	$6.21
36	Bearing - Trimax Specification - 401-021-900 More Info >	$18.60
37	Pulley - Idler 403-360-110 More Info >	$63.89
