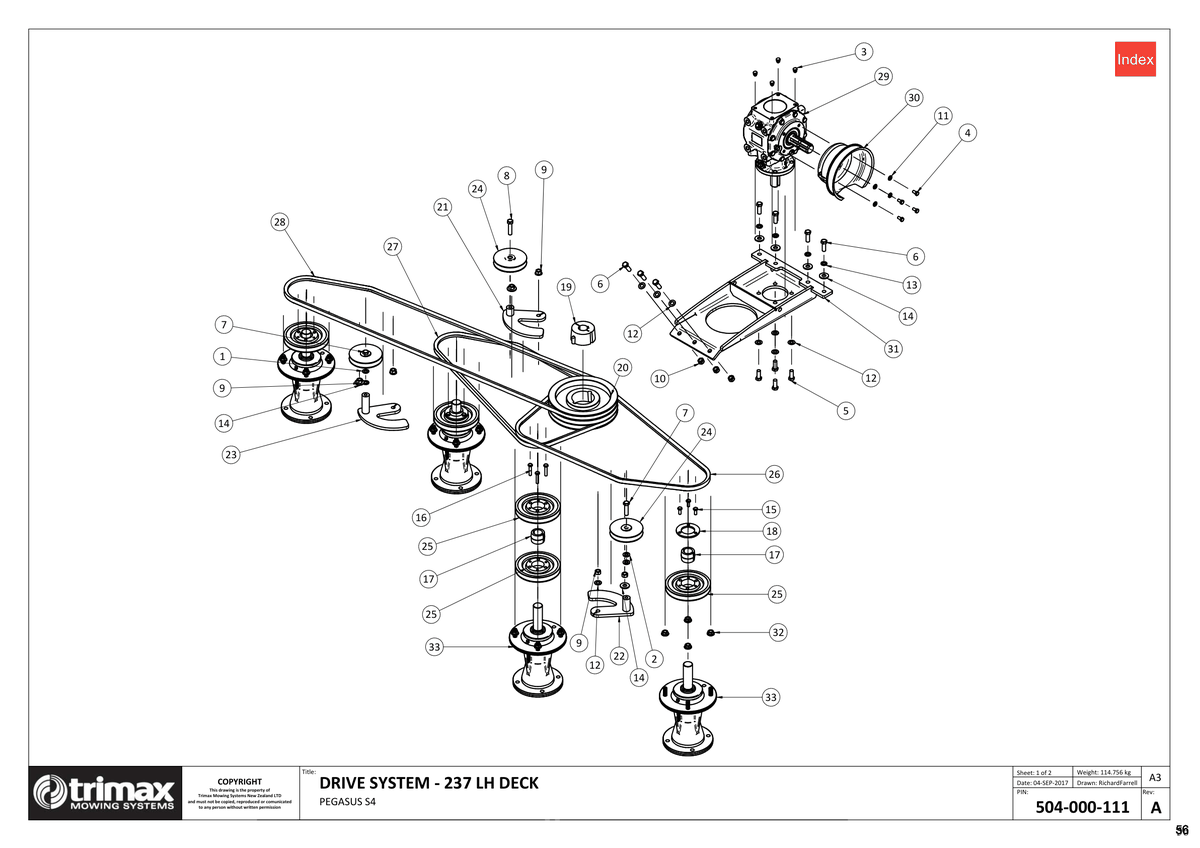

727 - Pegasus S4 610 - Drive System 237 LH - Biloc

Pegasus S4 610

Grouped product items
No.	Product Name	Price
1	Washer - Flat 108-071-413 More Info >	$2.88
2	Washer - Hardened 108-071-513 More Info >	$4.58
3	Blanking Plug - M12 209-900-012 More Info >	Price on Request
4	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	$0.61
5	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	$2.36
6	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	$2.71
7	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	$3.04
8	Bolt - Hex Head - M12 x 50 - Trimax Specification 301-212-503 More Info >	$3.16
9	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	$0.57
10	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	$0.67
11	Washer - Flat 308-080-013 More Info >	$0.05
12	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	$0.45
13	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	$0.45
14	Washer - Heavy Flat 308-120-063 More Info >	$1.84
15	Set Screw 313-208-203 More Info >	Price on Request
16	Set Screw 313-208-403 More Info >	Price on Request
17	Bush 402-060-320 More Info >	$30.58
18	Retainer Ring 402-060-450 More Info >	$17.30
19	Bush - Taper Lock 402-060-820 More Info >	$39.57
20	Pulley 403-000-038 More Info >	$230.05
21	Idler Tower Incl Base 403-330-423 More Info >	$53.03
22	Idler Tower Incl Base 403-330-432 More Info >	$71.54
23	Idler Tower Incl Base 403-330-442 More Info >	$88.29
24	Pulley Assembly - Idler 403-360-111 More Info >	$112.00
25	Pulley 403-360-300 More Info >	$80.00
26	Vee Belt - Trimax Specification 404-040-750 More Info >	$48.00
28	Vee Belt - Trimax Specification 404-041-150 More Info >	$70.00
29	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	$1,712.00
30	Cone - PTO Shield w/ Cut Out 410-440-401 More Info >	$44.94
31	Gearbox Mount Weldment 417-001-197 More Info >	Price on Request
32	Nut - Flange 450-000-078 More Info >	$3.85
33	Spindle Assembly - Steadfast 504-000-106 More Info >	Price on Request
