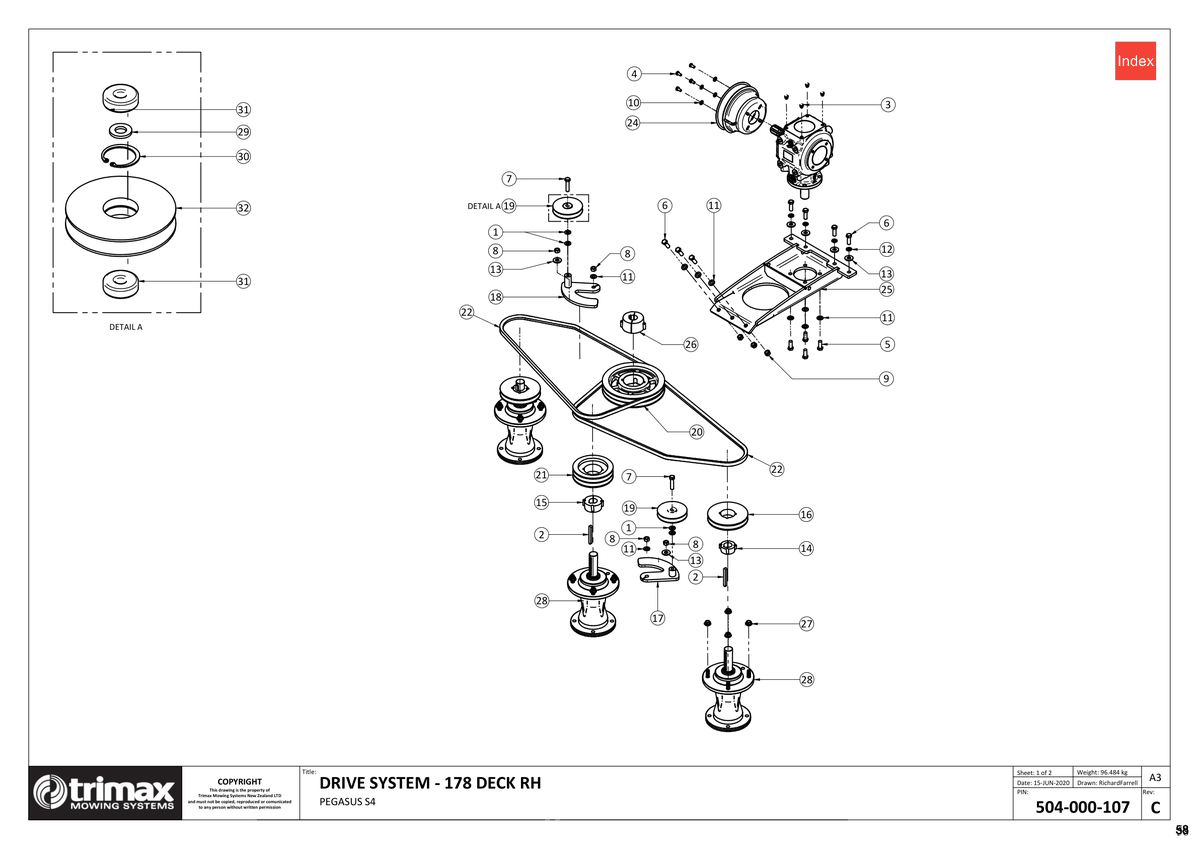

727 - Pegasus S4 493 - Drive System 178 RH - Taper Pulley

Pegasus S4 493

Grouped product items
No.	Product Name	Price
1	Washer - Hardened 108-071-513 More Info >	$4.58
2	Key - 10 x 8 x 85 - Trimax Specification 205-000-003 More Info >	$6.85
3	Blanking Plug - M12 209-900-012 More Info >	Price on Request
4	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	$0.61
5	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	$2.36
6	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	$2.71
7	Bolt - Hex Head - M12 x 50 - Trimax Specification 301-212-503 More Info >	$3.16
8	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	$0.57
9	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	$0.67
10	Washer - Flat 308-080-013 More Info >	$0.05
11	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	$0.45
12	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	$0.45
13	Washer - Heavy Flat 308-120-063 More Info >	$1.84
14	Bush - Taper Lock 402-000-078 More Info >	$22.23
15	Bush - Taper Lock 402-000-090 More Info >	$31.92
16	Pulley - Taper Lock 403-000-083 More Info >	$75.45
17	Idler Tower Incl Base 403-330-423 More Info >	$53.03
18	Idler Tower Incl Base 403-330-432 More Info >	$71.54
19	Pulley Assembly - Idler 403-360-111 More Info >	$112.00
20	Pulley - Taper Lock - Trimax Specification 403-000-128 More Info >	$171.51
21	Pulley - Taper Lock 403-361-140 More Info >	$62.66
22	Vee Belt - Trimax Specification 404-040-750 More Info >	$48.00
23	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	$1,712.00
24	Cone - PTO Shield w/ Cut Out 410-440-401 More Info >	$44.94
25	Gearbox Mount Weldment 417-001-197 More Info >	Price on Request
26	Bush - Taper Lock 402-060-820 More Info >	$39.57
27	Nut - Flange 450-000-078 More Info >	$3.85
28	Spindle Assembly - Steadfast - With Keyway 504-000-133 More Info >	$1,179.00
30	Circlip/Snap Ring - Internal 204-820-371 More Info >	$6.21
31	Bearing - Trimax Specification - 401-021-900 More Info >	$18.60
32	Pulley - Idler 403-360-110 More Info >	$63.89
