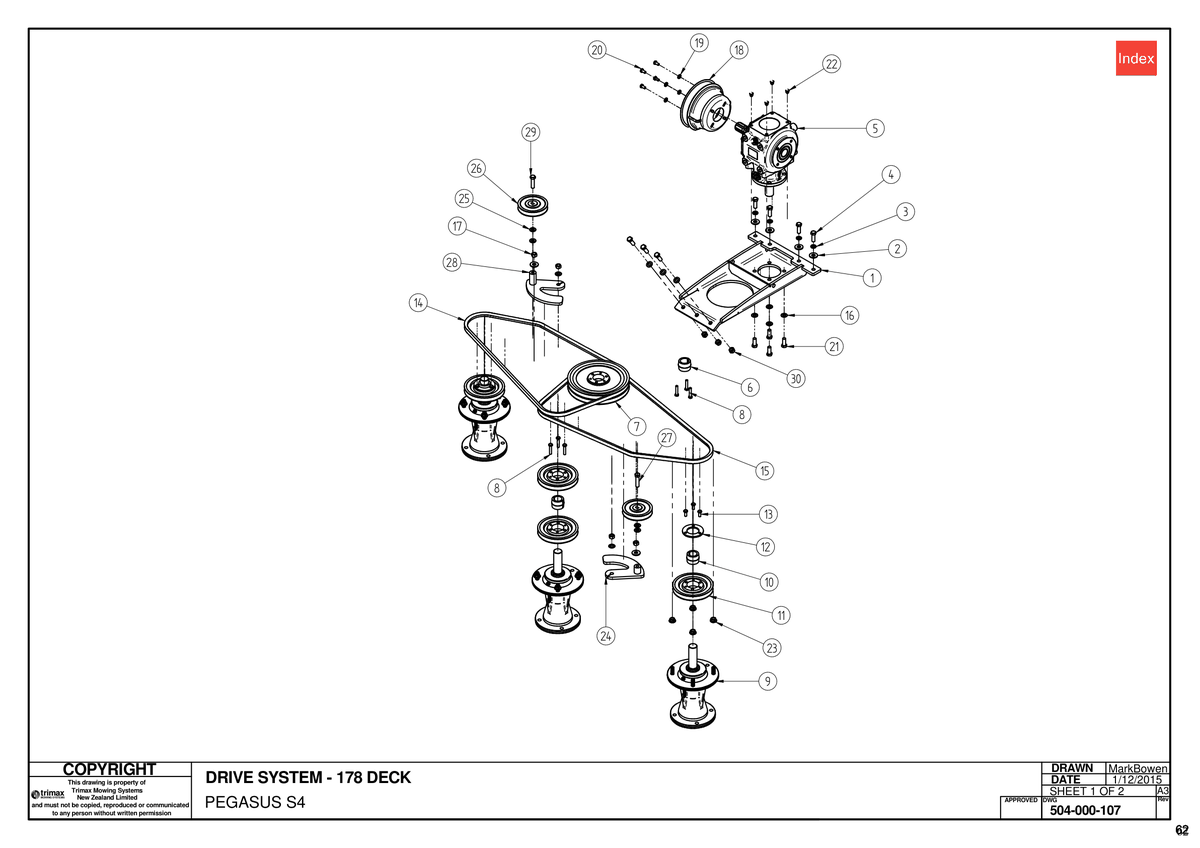

727 - Pegasus S4 493 - Drive System 178 RH - Biloc

Pegasus S4 493

Grouped product items
No.	Product Name	Price
1	Gearbox Mount Weldment 417-001-197 More Info >	Price on Request
2	Washer - Heavy Flat 308-120-063 More Info >	$1.84
3	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	$0.45
4	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	$2.71
5	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	$1,712.00
6	Bush 402-060-330 More Info >	$27.32
7	Pulley 403-360-650 More Info >	$120.63
8	Set Screw 305-208-403 More Info >	Price on Request
9	Spindle Assembly - Steadfast 504-000-106 More Info >	Price on Request
10	Bush 402-060-320 More Info >	$30.58
11	Pulley 403-360-300 More Info >	$80.00
12	Retainer Ring 402-060-450 More Info >	$17.30
13	Set Screw 305-208-203 More Info >	Price on Request
14	Vee Belt - Trimax Specification 404-040-750 More Info >	$48.00
16	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	$0.45
17	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	$0.57
18	Cone - PTO Shield w/ Cut Out 410-440-401 More Info >	$44.94
19	Washer - Flat 308-080-013 More Info >	$0.05
20	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	$0.61
21	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	$2.36
22	Blanking Plug - M12 209-900-012 More Info >	Price on Request
23	Nut - Flange 450-000-078 More Info >	$3.85
24	Idler Tower Incl Base 403-330-423 More Info >	$53.03
25	Washer - Hardened 108-071-513 More Info >	$4.58
26	Pulley Assembly - Idler 403-360-111 More Info >	$112.00
27	Bolt - Hex Head - M12 x 50 - Trimax Specification 301-212-503 More Info >	$3.16
28	Idler Tower Incl Base 403-330-432 More Info >	$71.54
29	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	$3.04
30	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	$0.67
