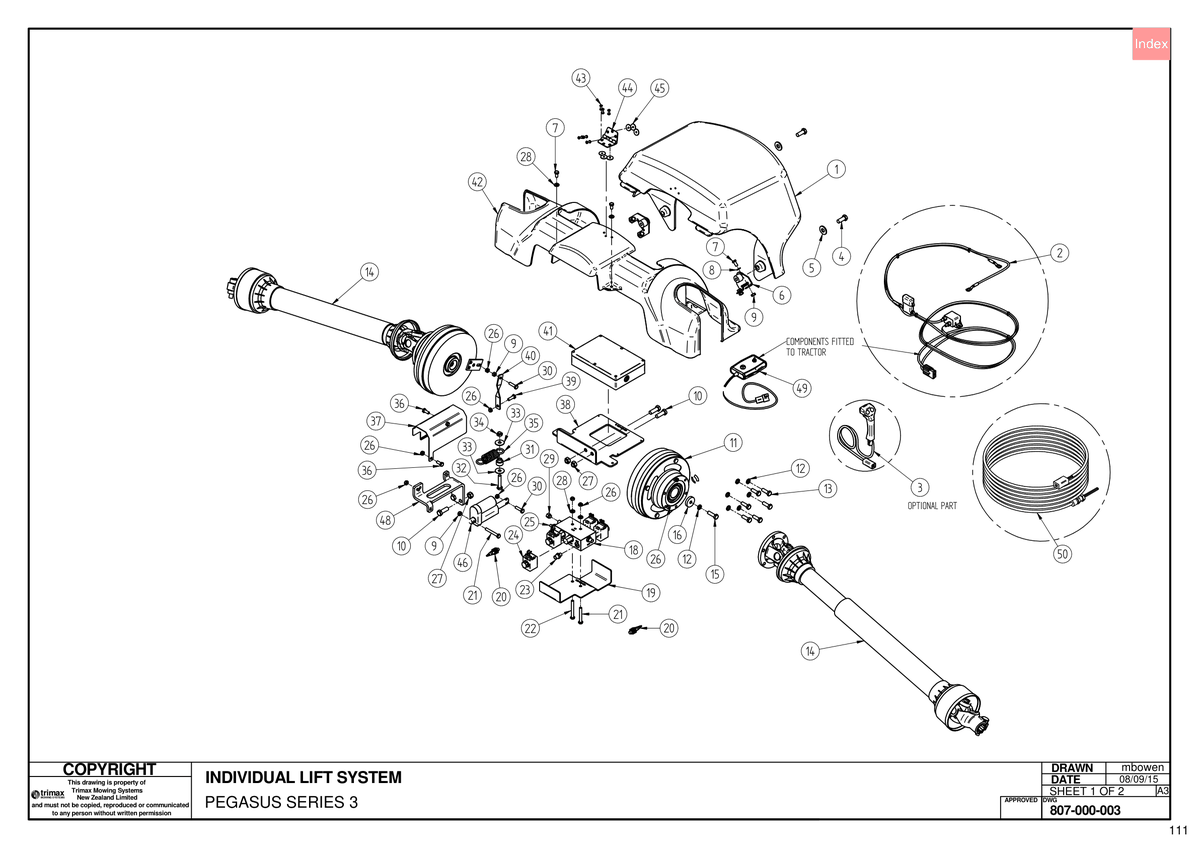

727 - Pegasus S3 - INDIVIDUAL LIFT SYSTEM 807-000-003

Pegasus S3 493, Pegasus S3 610

Grouped product items
No.	Product Name	Price
4	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	$2.36
5	Washer - Heavy Flat 308-120-063 More Info >	$1.84
7	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	$0.61
8	Washer - Spring 308-080-043 More Info >	Price on Request
9	Nut - Plain 307-208-013 More Info >	Price on Request
10	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	$2.71
11	Magnetic Clutch 421-441-250 More Info >	Price on Request
12	Washer - Spring 308-100-043 More Info >	$0.18
13	Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303 More Info >	$0.86
14	PTO Shaft - 6 Bolt Flange 406-340-592 More Info >	$529.00
15	Bolt 301-110-353 More Info >	Price on Request
16	Retaining Washer - Electric Clutch 450-844-160 More Info >	Price on Request
18	Hydraulic Cartridge Valve Bank 409-000-043 More Info >	Price on Request
19	Mount Bracket Folding 418-000-398 More Info >	Price on Request
20	Proximity Sensor Kit - Unshielded incl. Connector 421-000-042 More Info >	$377.31
21	Bolt - Hex Head - M8 x 60 - Trimax Specification 301-208-603 More Info >	Price on Request
22	Bolt - Hex Head - M8 x 70 - Trimax Specification 301-208-703 More Info >	Price on Request
23	Adaptor 408-000-030 More Info >	Price on Request
24	Coil 409-000-044 More Info >	$182.00
25	Needle Valve 408-000-054 More Info >	Price on Request
26	Nut - Nyloc 307-208-056 More Info >	$0.90
27	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	$0.67
28	Washer - Flat 308-080-016 More Info >	$0.12
29	Plug 408-000-031 More Info >	Price on Request
30	Bolt - Hex Head - M8 x 30 - Trimax Specification 301-208-303 More Info >	$0.62
31	Bush 402-000-097 More Info >	Price on Request
32	Bolt - Hex Head - M10 x 50 - Trimax Specification 301-210-503 More Info >	$1.22
33	Washer - Fender 308-100-073 More Info >	$0.52
34	Nut - Nyloc 307-210-053 More Info >	$0.57
35	Spring - Tension 207-000-008 More Info >	$84.06
36	Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203 More Info >	$0.90
37	Sheild - Electric Unlock Actuator 410-000-287 More Info >	Price on Request
38	Mount Bracket Folding 418-000-396 More Info >	Price on Request
39	Bolt - Hex Head - M8 x 25 - Trimax Specification 301-208-253 More Info >	$0.54
40	Clutch Mount Bracket 418-844-170 More Info >	Price on Request
43	Blind Rivet 213-000-001 More Info >	Price on Request
44	Hinge - Covers 423-851-050 More Info >	$76.65
45	Washer - Fender 108-031-413 More Info >	$1.10
46	Unlock Actuator w Wiring/Plug - ILS 421-000-003 More Info >	Price on Request
48	Mount Bracket Folding 418-000-397 More Info >	Price on Request
49	Switch Box 421-000-065 More Info >	$347.75
