NOTES:

Part #	Number on image	Usage Notes
504-328-042	17	504-328-042 greaseable spindle is obsolete and is replaced by 504-000-133 non-greaseable Spindle. Individual replaceable parts are still available for greaseable spindles from Trimax.

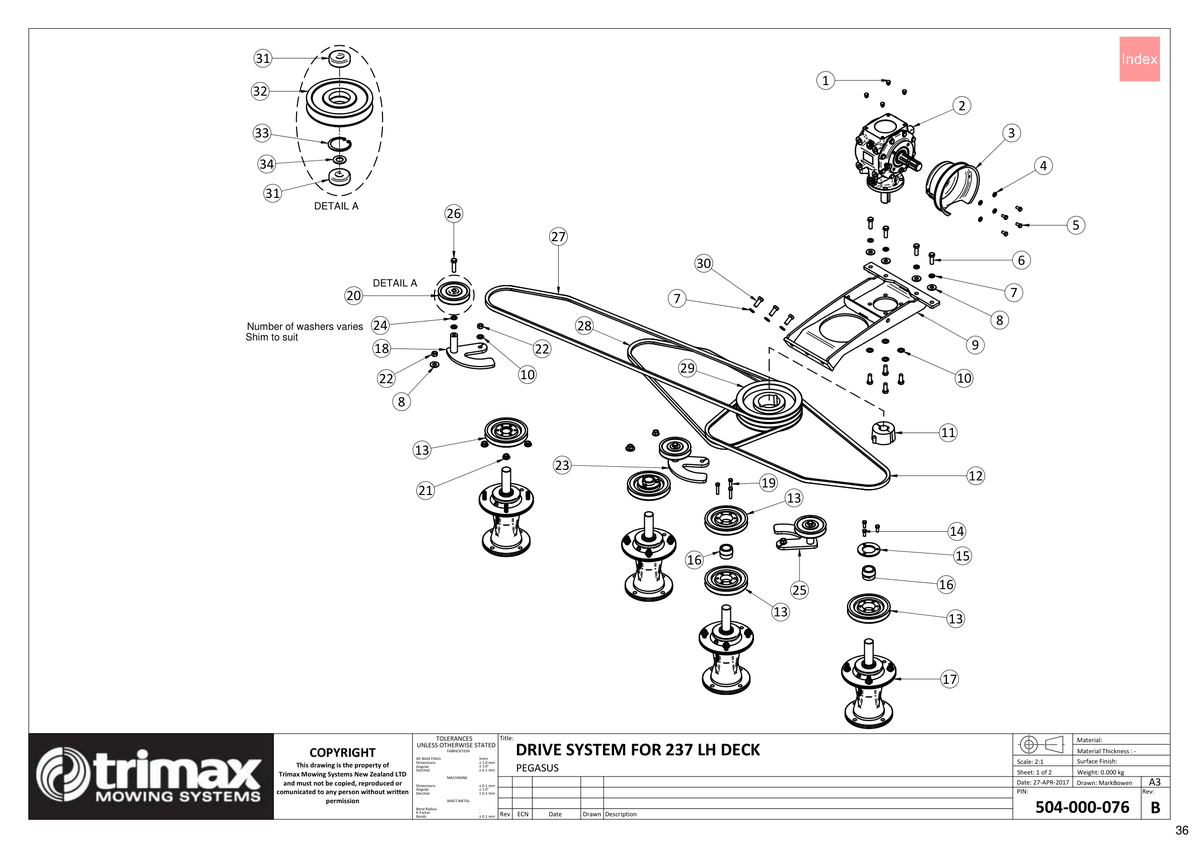

727 - Pegasus S3 - 237 LH DRIVE SYSTEM - 504-000-076

Pegasus S3 493, Pegasus S3 610

Grouped product items
No.	Product Name	Price
1	Blanking Plug - M12 209-900-012 More Info >	Price on Request
2	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	$1,712.00
3	Cone - PTO Shield w/ Cut Out 410-440-401 More Info >	$44.94
4	Washer - Flat 308-080-016 More Info >	$0.12
5	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	$0.61
6	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	$2.71
7	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	$0.45
8	Washer - Heavy Flat 308-120-063 More Info >	$1.84
9	Gearbox Mount Weldment - Deck Assembly 417-841-500 More Info >	$349.16
10	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	$0.45
11	Bush - Taper Lock 402-060-820 More Info >	$39.57
13	Pulley 403-360-300 More Info >	$80.00
14	Set Screw 313-208-203 More Info >	Price on Request
15	Retainer Ring 402-060-450 More Info >	$17.30
16	Bush 402-060-320 More Info >	$30.58
17	Spindle Assembly - Type 5a Ext 50mm i See notes section for usage notes on this part 504-328-042 More Info >	Price on Request
18	Idler Tower Incl Base 403-330-442 More Info >	$88.29
19	Set Screw 313-208-403 More Info >	Price on Request
20	Pulley Assembly - Idler 403-360-111 More Info >	$112.00
21	Nut - Flange 450-000-078 More Info >	$3.85
22	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	$0.57
23	Idler Tower Incl Base 403-330-423 More Info >	$53.03
25	Idler Tower Incl Base 403-330-432 More Info >	$71.54
26	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	$3.04
27	Vee Belt - Trimax Specification 404-041-150 More Info >	$70.00
12	Vee Belt - Trimax Specification 404-040-750 More Info >	$48.00
29	Pulley 403-000-038 More Info >	$230.05
30	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	$2.36
31	Bearing - Trimax Specification - 401-021-900 More Info >	$18.60
32	Pulley - Idler 403-360-110 More Info >	$63.89
33	Circlip/Snap Ring - Internal 204-820-371 More Info >	$6.21
24	Washer - Flat 108-071-413 More Info >	$2.88
