NOTES:

Part # Number on image Usage Notes
504-000-133 38
  • The new spindle with keyway is backwards compatible with prior machines

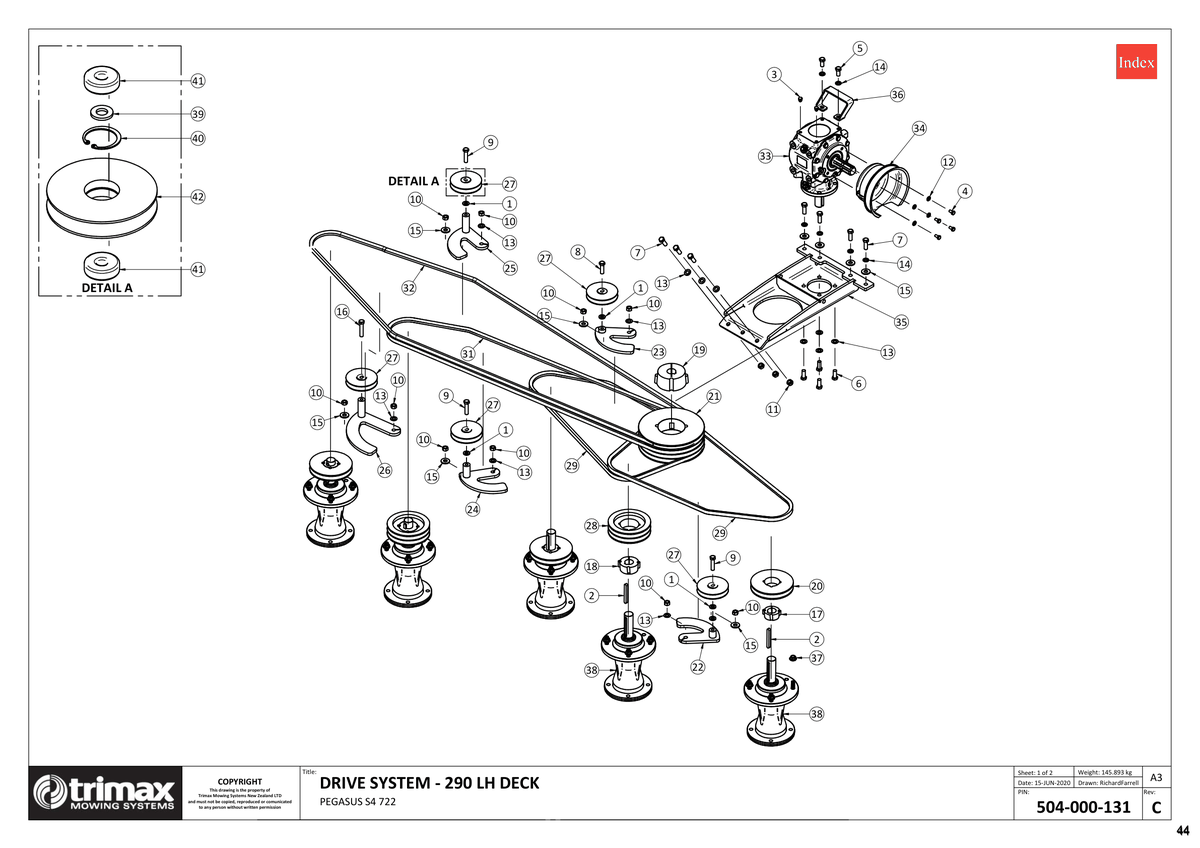

727-722 - Pegasus S4 - Drive System 290 LH - Taper Pulley

Pegasus S4 722

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Hardened [108-071-513] Washer - Hardened 108-071-513
$4.58
2 Key - 10 x 8 x 85 DIN6885 Form A [205-000-003] Key - 10 x 8 x 85 DIN6885 Form A 205-000-003
$6.85
3 Blanking Plug [209-900-012] Blanking Plug 209-900-012
$0.45
4 Bolt [301-208-163] Bolt 301-208-163
$0.61
5 Bolt [301-212-253] Bolt 301-212-253
$2.93
6 Bolt [301-212-303] Bolt 301-212-303
$2.36
7 Bolt [301-212-353] Bolt 301-212-353
$2.71
8 Bolt [301-212-403] Bolt 301-212-403
$2.93
9 Bolt [301-212-503] Bolt 301-212-503
$3.16
10 Nut - Plain [307-212-013] Nut - Plain 307-212-013
$0.57
11 Nut - Nyloc [307-212-053] Nut - Nyloc 307-212-053
$0.67
12 Washer - Flat [308-080-016] Washer - Flat 308-080-016
$0.12
13 Washer - Flat [308-120-013] Washer - Flat 308-120-013
$0.45
14 Washer - Spring [308-120-043] Washer - Spring 308-120-043
$0.45
15 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
$1.84
16 Set Screw [313-212-603] Set Screw 313-212-603
$1.82
17 Bush - Taper Lock [402-000-078] Bush - Taper Lock 402-000-078
$22.23
18 Bush - Taper Lock [402-000-090] Bush - Taper Lock 402-000-090
$31.92
19 Bush - Taper Lock [402-060-680] Bush - Taper Lock 402-060-680
$83.73
20 Pulley - Taper Lock [403-000-083] Pulley - Taper Lock 403-000-083
$75.45
21 Pulley - Taper Lock ��236 SPB x 4 [403-000-129] Pulley - Taper Lock ��236 SPB x 4 403-000-129
$201.92
22 Idler Tower Incl Base [403-330-423] Idler Tower Incl Base 403-330-423
$53.03
23 Idler Tower Incl Base [403-330-424] Idler Tower Incl Base 403-330-424
$89.27
24 Idler Tower Incl Base [403-330-432] Idler Tower Incl Base 403-330-432
$71.54
25 Idler Tower Incl Base [403-330-442] Idler Tower Incl Base 403-330-442
$88.29
27 Pulley Assembly - Idler [403-360-111] Pulley Assembly - Idler 403-360-111
$112.40
28 Pulley - Taper Lock [403-361-140] Pulley - Taper Lock 403-361-140
$62.66
29 Vee Belt [404-040-750] Vee Belt 404-040-750
$48.00
31 Vee Belt [404-041-150] Vee Belt 404-041-150
$70.00
32 Vee Belt [404-041-580] Vee Belt 404-041-580
$77.00
33 Gearbox [405-200-720] Gearbox 405-200-720
$1,712.00
34 Cone - PTO Shield w/ Cut Out [410-440-401] Cone - PTO Shield w/ Cut Out 410-440-401
$44.94
35 Gearbox Mount Weldment [417-001-197] Gearbox Mount Weldment 417-001-197
$385.21
36 Folding [418-000-633] Folding 418-000-633
$51.77
37 Nut - Flange [450-000-078] Nut - Flange 450-000-078
$3.85
38 Spindle Assembly - Steadfast - With Keyway [504-000-133] Spindle Assembly - Steadfast - With Keyway i See notes section for usage notes on this part 504-000-133
$1,114.73
40 Circlip/Snap Ring - Internal [204-820-371] Circlip/Snap Ring - Internal 204-820-371
$6.21
41 Bearing [401-021-900] Bearing 401-021-900
$18.65
42 Pulley - Idler [403-360-110] Pulley - Idler 403-360-110
$63.89
