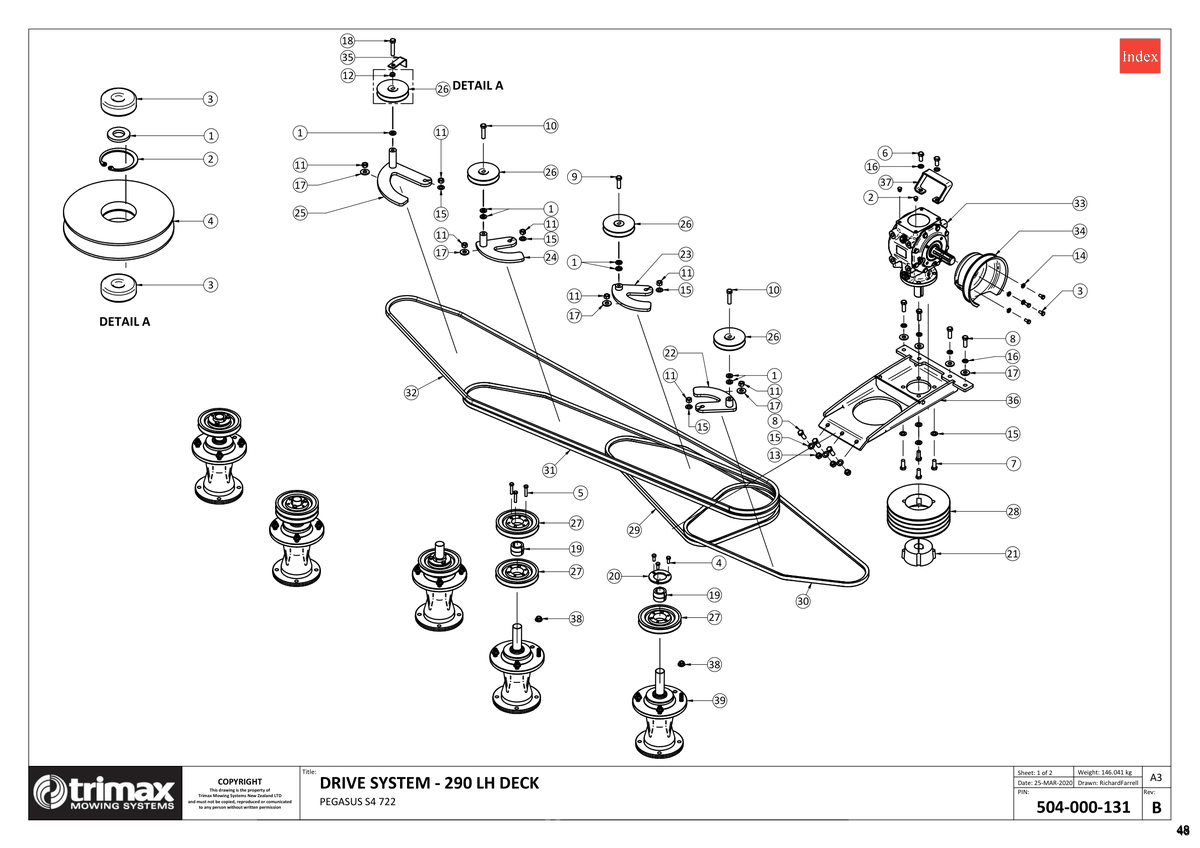

727-722 - Pegasus S4 - Drive System 290 LH - Biloc

Pegasus S4 722

Grouped product items
No.	Product Name	Price
1	Washer - Hardened 108-071-513 More Info >	$4.58
2	Blanking Plug 209-900-012 More Info >	$0.45
3	Bolt 301-208-163 More Info >	$0.61
4	Bolt 301-208-203 More Info >	$0.90
5	Bolt 301-208-403 More Info >	$1.28
6	Bolt 301-212-253 More Info >	$2.93
7	Bolt 301-212-303 More Info >	$2.36
8	Bolt 301-212-353 More Info >	$2.71
9	Bolt 301-212-403 More Info >	$2.93
10	Bolt 301-212-503 More Info >	$3.16
11	Nut - Plain 307-212-013 More Info >	$0.57
12	Nut - Half 307-212-023 More Info >	$1.13
13	Nut - Nyloc 307-212-053 More Info >	$0.67
14	Washer - Flat 308-080-016 More Info >	$0.12
15	Washer - Flat 308-120-013 More Info >	$0.45
16	Washer - Spring 308-120-043 More Info >	$0.45
17	Washer - Heavy Flat 308-120-063 More Info >	$1.84
18	Set Screw 313-212-603 More Info >	$1.82
19	Bush 402-060-320 More Info >	$30.58
20	Retainer Ring 402-060-450 More Info >	$17.30
21	Bush - Taper Lock 402-060-680 More Info >	$83.73
22	Idler Tower Incl Base 403-330-423 More Info >	$53.03
23	Idler Tower Incl Base 403-330-424 More Info >	$89.27
24	Idler Tower Incl Base 403-330-432 More Info >	$71.54
26	Pulley Assembly - Idler 403-360-111 More Info >	$112.40
27	Pulley 403-360-300 More Info >	$80.25
28	Pulley - Taper Lock 403-361-290 More Info >	$267.41
29	Vee Belt 404-040-750 More Info >	$48.00
31	Vee Belt 404-041-150 More Info >	$70.00
32	Vee Belt 404-041-580 More Info >	$77.00
33	Gearbox 405-200-720 More Info >	$1,712.00
34	Cone - PTO Shield w/ Cut Out 410-440-401 More Info >	$44.94
35	Folding 417-001-178 More Info >	$0.54
36	Gearbox Mount Weldment 417-001-197 More Info >	$385.21
37	Folding 418-000-633 More Info >	$51.77
38	Nut - Flange 450-000-078 More Info >	$3.85
39	Spindle Assembly - Steadfast 504-000-106 More Info >	$1,114.73
2	Circlip/Snap Ring - Internal 204-820-371 More Info >	$6.21
3	Bearing 401-021-900 More Info >	$18.65
4	Pulley - Idler 403-360-110 More Info >	$63.89
