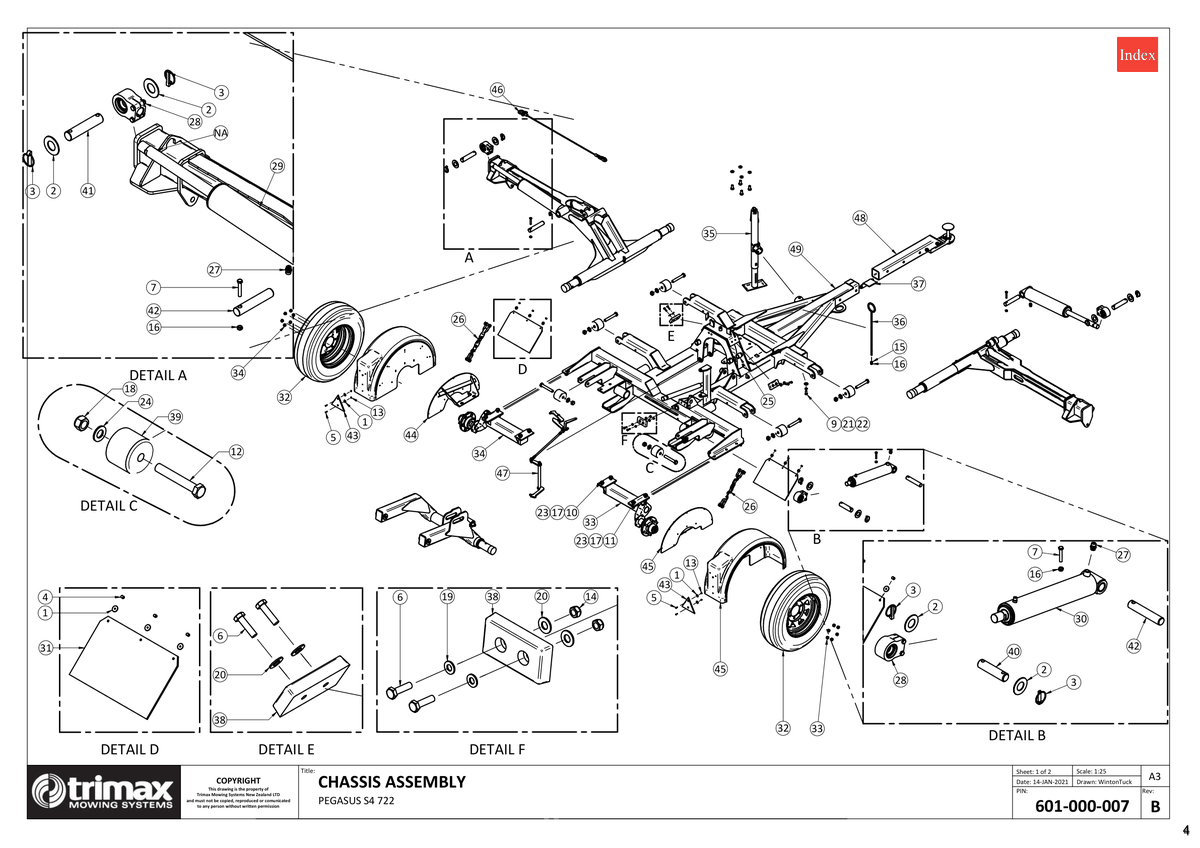

727 - Pegasus S4 - 722 - Chassis Assembly

Pegasus S4 722

Grouped product items
No.	Product Name	Price
1	Washer - Fender 108-031-413 More Info >	$1.10
2	Washer - Flat 108-224-014 More Info >	$9.21
3	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	$2.76
4	Blind Rivet 213-000-004 More Info >	$1.02
5	Bolt - Hex Head - M4 x 16 - Trimax Specification 301-204-163 More Info >	$0.27
6	Bolt - Hex Head - M8 x 30 - Trimax Specification 301-208-303 More Info >	$0.62
7	Bolt - Hex Head - M10 x 60 - Trimax Specification 301-210-603 More Info >	$0.81
9	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	$2.36
10	Bolt - Hex Head - M16 x 40 - Trimax Specification 301-216-403 More Info >	$3.85
11	Bolt - Hex Head - M16 x 60 - Trimax Specification 301-216-603 More Info >	$3.85
12	Bolt - Hex Head - M20 x 130 - Trimax Specification 301-620-133 More Info >	$16.02
13	Nut - Nyloc 307-204-053 More Info >	$0.53
14	Nut - Nyloc 307-208-056 More Info >	$0.90
15	Nut - Plain M10 - Trimax Specification - 307-210-013 More Info >	$0.48
16	Nut - Nyloc 307-210-053 More Info >	$0.57
17	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	$1.02
18	Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053 More Info >	$1.57
19	Washer - Flat 308-080-013 More Info >	$0.05
20	Washer - Flat 308-100-013 More Info >	$0.54
21	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	$0.45
22	Washer - Heavy Flat 308-120-063 More Info >	$1.84
23	Washer - Heavy Flat 308-160-063 More Info >	$1.65
24	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	$1.02
25	Bush 402-845-060 More Info >	$60.13
27	Breather - Capped 3/8" BSP 408-000-083 More Info >	$20.33
28	Rod End Assy - Spherical Bearing 409-000-014 More Info >	$680.52
31	Mud Flap - Axle 410-842-440 More Info >	Price on Request
32	Wheel Assembly - Road 416-842-620 More Info >	$726.75
33	Axle Assembly - Braked/Splined - RH 416-842-740 More Info >	$1,895.00
34	Axle Assembly - Braked/Splined - LH 416-842-750 More Info >	$2,369.00
35	Parking Jack Assembly 418-000-217 More Info >	$354.00
36	Guide 418-000-466 More Info >	$50.05
37	PTO Hanger - Pegasus Vulcan Snake 418-000-782 More Info >	Price on Request
38	Buffer Pad 418-840-300 More Info >	$44.82
39	Guide Roller 418-844-364 More Info >	$98.01
40	Pin - Hydraulic Cylinder 419-845-550 More Info >	$82.44
41	Pin - Hydraulic Cylinder 419-845-560 More Info >	Price on Request
42	Pin - Hydraulic Cylinder 419-845-561 More Info >	Price on Request
43	Reflector - Safety Triangle 421-847-050 More Info >	$34.67
44	Mudguard Assembly - Pegasus S4 LH 506-000-013 More Info >	Price on Request
45	Mudguard Assembly - Pegasus S4 RH 506-000-014 More Info >	Price on Request
46	Safety Rope Assembly - Transport 506-000-025 More Info >	$116.01
47	Lock Release System 510-000-038 More Info >	Price on Request
48	Drawbar Assembly 510-000-046 More Info >	Price on Request
49	Chassis Weldment - Pegasus S4 510-000-060 More Info >	Price on Request
