NOTES:

Part #	Number on image	Usage Notes
401-020-802	10	Available as kit P/N 401-020-801 contains (Bearing assembled in Housing with Gasket)
308-120-013	29	There are 2 flat washers positioned between each spindle and the mower body (1 on each of the front capscrews) it is important to fit these washers whenever mounting the spindles
418-840-860	53	This item is fitted to the Left and Right mower decks only
412-171-700	54	This item is fitted to the Left and Right mower decks only
417-153-140	55	This item is fitted to the Left and Right mower decks only
410-440-400	58	When ordering a replacement Safety Cone you will notice that the cones on the Left and Right hand mower decks have a cut-out for ease of cover fitment. Order these as P/N 410-440-401

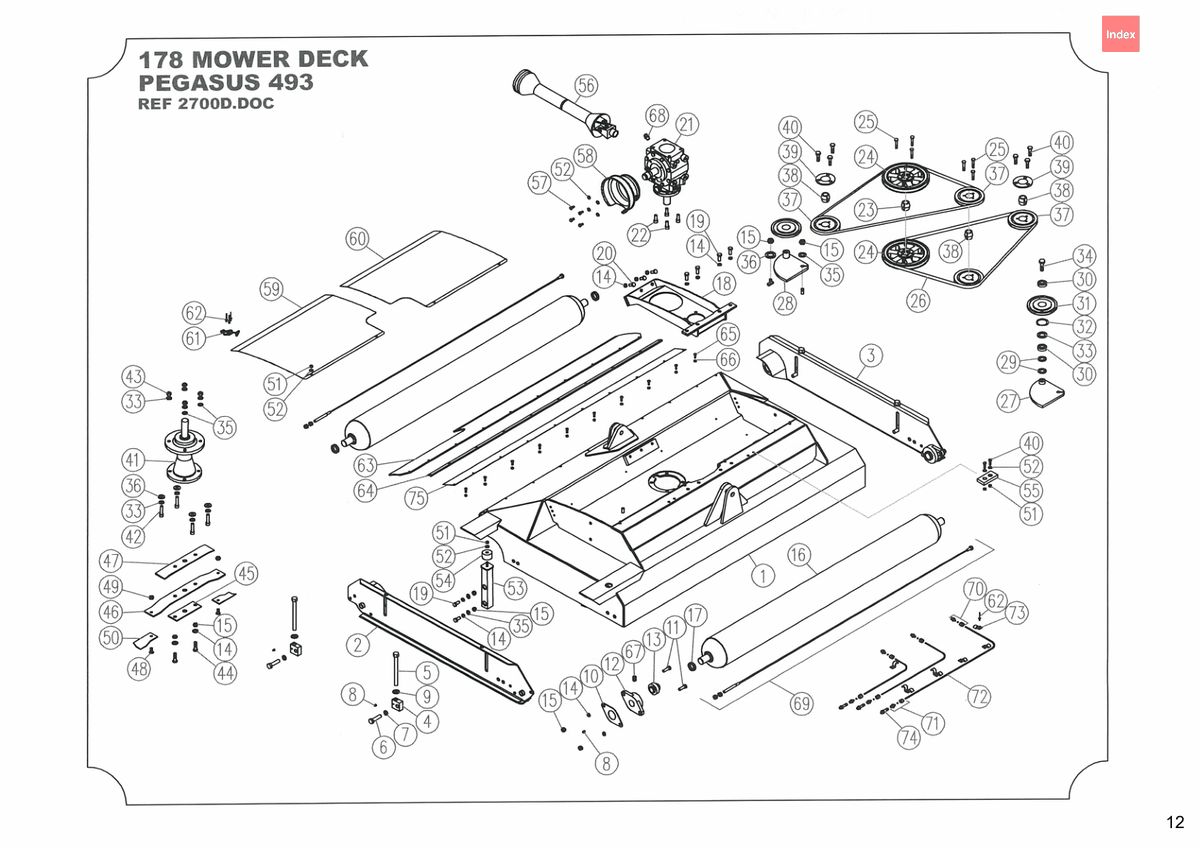

726 - Pegasus S1 - DECK ASSEMBLY

Pegasus S1 493

Grouped product items
No.	Product Name	Price
2	Side Channel Weldment - DR RH Ext "S" 178 412-841-000 More Info >	$664.52
3	Side Channel Weldment - DR LH Ext "S" 412-841-010 More Info >	$664.52
4	Height Adjuster Block 412-330-273 More Info >	$86.67
5	Height Adj. Screw 412-850-251 More Info >	$55.64
6	Bolt 301-116-553	Price on Request
7	Washer - Spring 308-160-043 More Info >	$0.67
8	Grease Nipple 208-442-600 More Info >	$3.61
9	Washer - Heavy Flat 308-160-063 More Info >	$1.65
10	Gasket - Paper i See notes section for usage notes on this part 401-020-802 More Info >	$6.12
11	Bolt 301-212-353 More Info >	$2.71
14	Washer - Spring 308-120-043 More Info >	$0.45
15	Nut - Plain 307-212-013 More Info >	$0.57
16	Roller Weldment 178 414-320-011 More Info >	$703.94
18	Gearbox Mount Weldment - Deck Assembly 417-841-500 More Info >	$349.16
19	Bolt 301-212-303 More Info >	$2.36
20	Bolt 301-212-253 More Info >	$2.93
21	Gearbox 405-200-720 More Info >	$1,712.00
22	Cap Screw 303-212-305 More Info >	$3.61
23	Bush 402-060-330 More Info >	$27.32
24	Pulley 403-360-650 More Info >	$120.63
25	Bolt 301-208-403 More Info >	$1.28
26	Vee Belt 404-040-750 More Info >	$48.00
27	Idler Tower Incl Base 403-330-423 More Info >	$53.03
28	Idler Tower Incl Base 403-330-432 More Info >	$71.54
30	Bearing 401-021-900 More Info >	$18.65
31	Pulley - Idler 403-360-110 More Info >	$63.89
32	Circlip/Snap Ring - Internal 204-820-371 More Info >	$6.21
33	Washer - Flat 108-071-413 More Info >	$2.88
34	Bolt 301-212-503 More Info >	$3.16
29	Washer - Flat i See notes section for usage notes on this part 308-120-013 More Info >	$0.45
36	Washer - Heavy Flat 308-120-063 More Info >	$1.84
37	Pulley 403-360-300 More Info >	$80.25
38	Bush 402-060-320 More Info >	$30.58
39	Retainer Ring 402-060-450 More Info >	$17.30
40	Bolt 301-208-203 More Info >	$0.90
42	Cap Screw 303-212-505 More Info >	$4.85
43	Nut - Binx 307-212-063 More Info >	$12.87
44	Bolt 301-212-453 More Info >	$3.04
45	Clamp Plate - Blade Beam 411-322-800 More Info >	$10.09
46	Beam - Std - Blade Mounting 411-322-750 More Info >	$66.34
47	Backing Plate - Blade Beam 411-322-700 More Info >	$32.10
48	Blade Bolt - D-Bolt - With Nyloc Nut - Blade Mounting 411-322-100 More Info >	$8.65
49	Nut - Nyloc 307-210-053 More Info >	$0.57
50	Blade - Spindle - Uplift 411-160-702 More Info >	$7.50
51	Nut - Nyloc 307-208-053 More Info >	$0.17
52	Washer - Flat 308-080-013 More Info >	$0.05
53	Buffer Tower Weldment i See notes section for usage notes on this part 418-840-860 More Info >	$44.87
54	Buffer - Round i See notes section for usage notes on this part 412-171-700 More Info >	$28.56
55	Pad i See notes section for usage notes on this part 417-153-140 More Info >	$38.34
57	Bolt 301-208-163 More Info >	$0.61
58	Cone i See notes section for usage notes on this part 410-440-400 More Info >	$30.44
61	Adjustable Catch - Covers 423-080-220 More Info >	$30.00
62	Blind Rivet 213-443-250 More Info >	$0.57
63	Flap 410-841-100 More Info >	$161.48
63	Safety Flap - Deck - Rear 178 410-841-120 More Info >	$161.48
64	Clamp Strip - Safety Flap 178 410-841-200 More Info >	$70.56
65	Bolt 301-206-203 More Info >	$0.12
66	Nut - Nyloc 307-206-053 More Info >	$0.54
67	Grub Screw 144-104-025 More Info >	$0.95
68	Breather - Gearbox 405-207-207 More Info >	$34.36
69	Scraper - Roller 178 404-320-122 More Info >	$80.25
70	Nipple 450-900-035 More Info >	$13.45
71	Adaptor - Brass Fitting 450-900-037 More Info >	$22.87
72	Tube - Grease Line No. 11 ��3/16"OD 903-007-031 More Info >	$9.42
73	Clip - Grease Line ��4.5 450-000-031 More Info >	$2.26
74	Grease Nipple 208-442-610 More Info >	$5.38
76	Serial Plate - Three-point Linkage Mowers Small NZ 426-442-800 More Info >	$10.19
79	Decal - Instruction - Wash Warning Large 424-101-100 More Info >	$3.61
80	Decal - Instruction - Grease Points - Spindles 424-101-120 More Info >	$2.93
84	Decal - Safety - Safety Service 424-101-390 More Info >	$13.87
