NOTES:

Part #	Number on image	Usage Notes
406-340-890	50	For internal parts and service information refer to your local dealer
418-845-000	57	For internal parts and service information refer to your local dealer
416-842-000	63	For internal parts and service information refer to your local dealer
416-842-010	64	For internal parts and service information refer to your local dealer
416-842-300	67	Tyre part number 416-842-320. For optional wide wheels refer to your local dealer
410-842-430	71	Tyre part number 416-842-320. For optional wide wheels refer to your local dealer
424-100-900	111	Refer to operators manual for decal positions
418-840-350	117	This item is welded on early models
460-000-234	124	Item 124 Includes items 97,98,99,100 & 123 as Kit.

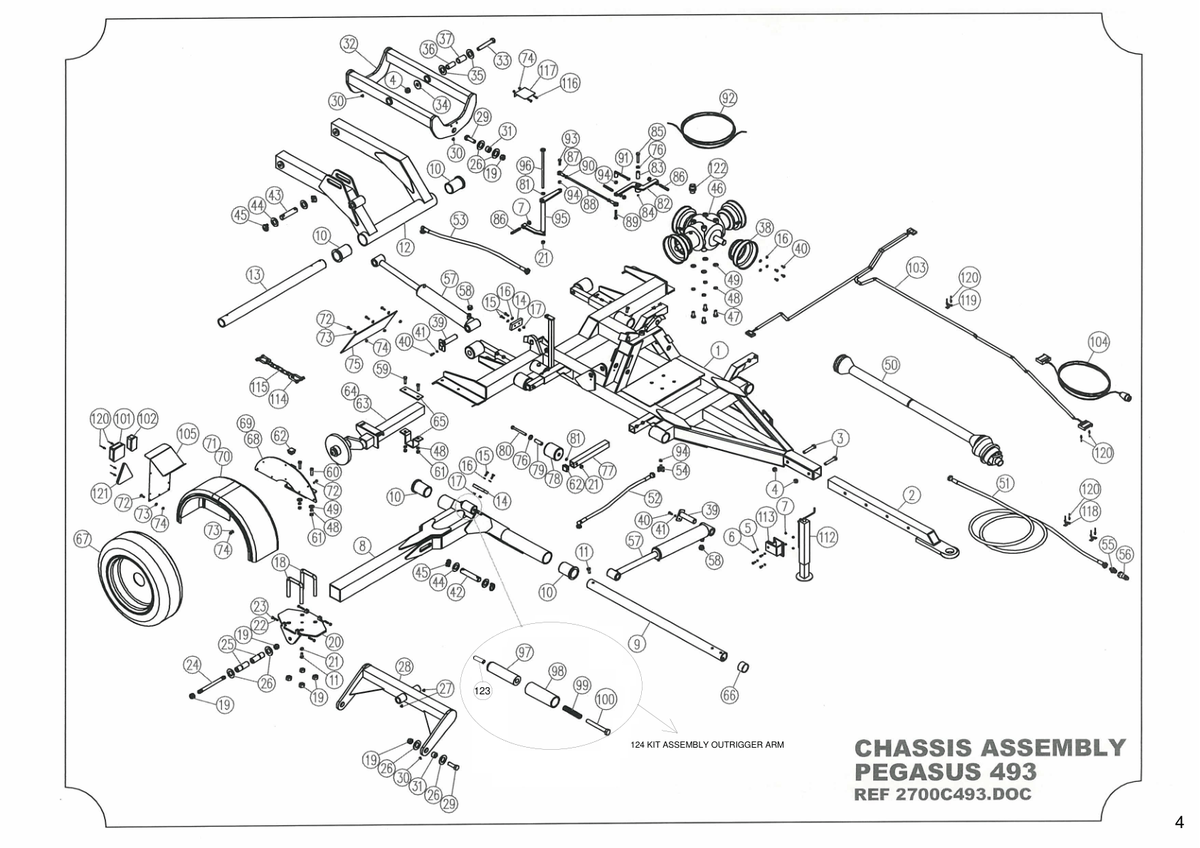

726 - Pegasus S1 - CHASSIS ASSEMBLY

Pegasus S1 493

Grouped product items
No.	Product Name	Price
2	Drawbar Weldment - Adjustable 418-840-020 More Info >	$394.21
3	Bolt 301-616-113 More Info >	$7.66
4	Nut - Nyloc 307-216-053 More Info >	$1.02
5	Washer - Spring 308-120-043 More Info >	$0.45
6	Bolt 301-212-353 More Info >	$2.71
7	Nut - Plain 307-212-013 More Info >	$0.57
9	Pin - Outrigger Hinge - Side 419-840-210 More Info >	$550.39
10	Bush 402-840-260 More Info >	$247.32
11	Bolt 301-212-253 More Info >	$2.93
13	Pin - Outrigger Hinge - Rear 419-840-200 More Info >	$386.14
14	Buffer Pad 418-840-300 More Info >	$44.82
15	Bolt 301-208-253 More Info >	$0.54
16	Washer - Flat 308-080-013 More Info >	$0.05
17	Nut - Nyloc 307-208-053 More Info >	$0.17
18	U-Bolt 215-840-400 More Info >	$111.28
19	Nut - Nyloc 307-220-053 More Info >	$1.57
20	Pitch Bracket Weldment - Side Outrigger Assembly 418-840-060 More Info >	$523.73
21	Nut - Nyloc 307-212-053 More Info >	$0.67
22	Grub Screw 312-208-305	Price on Request
23	Nut - Plain 307-208-013 More Info >	$0.17
24	Pin - Pitch Pivot 419-840-450 More Info >	$95.90
25	Sleeve - Pitch Tube 402-000-010 More Info >	$215.67
26	Thrust Washer 402-840-520 More Info >	$48.15
27	Grease Nipple 208-442-620 More Info >	$4.47
28	Side Float Beam Weldment 418-840-070 More Info >	$1,328.24
29	Bolt 301-220-753 More Info >	$4.82
30	Grease Nipple 208-442-650 More Info >	$5.89
31	Hardened Bush 402-840-550 More Info >	$69.09
33	Bolt 301-616-203 More Info >	$14.12
34	Heavy Washer 402-840-560 More Info >	$42.06
35	Washer - Pitch Pivot Rear 402-840-570 More Info >	$45.61
36	Sleeve 402-840-580 More Info >	$48.75
37	Bush - Pitch Pivot Rear 402-840-590 More Info >	$56.22
38	Cone 410-440-400 More Info >	$30.44
39	Pin Weldment - Hydraulic Cylinder 419-845-500 More Info >	$51.81
40	Bolt 301-208-163 More Info >	$0.61
41	Washer - Spring 308-080-043 More Info >	$0.12
42	Pin - Side Deck Lift Upper - Hydraulic Cylinder 419-845-510 More Info >	$78.84
44	Heavy Washer - Lift Ram Pin - Sliding 402-845-530	Price on Request
45	Linch Pin 203-300-700 More Info >	$2.76
47	Bolt 301-216-353 More Info >	$3.64
48	Washer - Spring 308-160-043 More Info >	$0.67
49	Washer - Heavy Flat 308-160-063 More Info >	$1.65
50	PTO Shaft Wide Angle i See notes section for usage notes on this part 406-340-890 More Info >	$1,926.00
52	Hose Assembly 409-448-420 More Info >	$64.80
53	Hose Assembly 409-448-430 More Info >	$42.41
54	Junction Assembly - Hydraulic 408-448-500 More Info >	$274.01
55	Nipple 408-448-280 More Info >	$9.33
56	Coupling 408-447-580 More Info >	$43.96
57	Hydraulic Cylinder i See notes section for usage notes on this part 418-845-000	Price on Request
58	Breather 408-448-480 More Info >	$57.78
59	Bolt 301-216-453 More Info >	$7.66
60	Bolt 301-216-503 More Info >	$5.63
61	Nut - Plain 307-216-013 More Info >	$1.61
62	Cap - Tube Insert Square 209-480-661 More Info >	$19.90
63	Assembly - Duratorque Right i See notes section for usage notes on this part 416-842-000	Price on Request
64	Assembly - Duratorque Left i See notes section for usage notes on this part 416-842-010	Price on Request
65	Bracket c/w Clamp Plate - Duratorque 416-842-250	Price on Request
66	Cap - Round 209-840-320 More Info >	$8.45
67	Wheel Assembly - Road i See notes section for usage notes on this part 416-842-300	Price on Request
71	Mudguard - Trailer Wheel - Narrow LH i See notes section for usage notes on this part 410-842-430	Price on Request
72	Bolt 301-206-203 More Info >	$0.12
73	Washer - Fender 108-041-613 More Info >	$0.20
74	Nut - Nyloc 307-206-053 More Info >	$0.54
76	Washer - Heavy Flat 308-120-063 More Info >	$1.84
78	Guide Roller 418-840-150 More Info >	$94.61
79	Bush - Guide Roller 402-840-160 More Info >	Price on Request
80	Bolt 301-612-123 More Info >	$2.20
81	Washer - Flat 308-120-013 More Info >	$0.45
83	Bush 402-840-650 More Info >	$38.63
84	Grease Nipple 208-442-600 More Info >	$3.61
85	Bolt 301-212-653 More Info >	$1.88
86	Release Lever Pin Assembly 419-000-013 More Info >	$64.94
87	Bearing 401-840-800 More Info >	$22.26
89	Bolt 301-210-503 More Info >	$1.22
90	Nut - Plain 307-210-013 More Info >	$0.48
91	Release Rope Mount Weldment 418-840-680 More Info >	$108.25
92	Release Cord - Transport Lock 404-840-690	Price on Request
93	Bolt 305-210-403 More Info >	$2.50
94	Nut - Nyloc 307-210-053 More Info >	$0.57
97	Pin - Transport Lock 419-840-700 More Info >	$197.95
98	Bush 402-840-710 More Info >	$116.01
99	Spring - Compression 207-840-720 More Info >	$28.71
100	Bolt 301-208-906 More Info >	$4.83
104	Wiring Loom Adaptor - Electrical Trailer 421-847-210 More Info >	$227.74
111	Decal - Instruction - PTO Speed 540RPM i See notes section for usage notes on this part 424-100-900 More Info >	$7.89
114	D-Shackle 214-446-280 More Info >	$9.13
115	Steel Chain 901-070-001 More Info >	$48.15
116	Bolt 301-206-303 More Info >	$0.62
117	Folding i See notes section for usage notes on this part 418-840-350 More Info >	$40.72
120	Blind Rivet 213-443-250 More Info >	$0.57
121	Reflector - Safety Triangle 421-847-050 More Info >	$34.67
122	Breather - Gearbox 405-207-207 More Info >	$34.36
123	Grub Screw 312-208-255 More Info >	$2.75
124	Kit Assembly - Outrigger Arm - Pegasus i See notes section for usage notes on this part 460-000-234 More Info >	Price on Request
