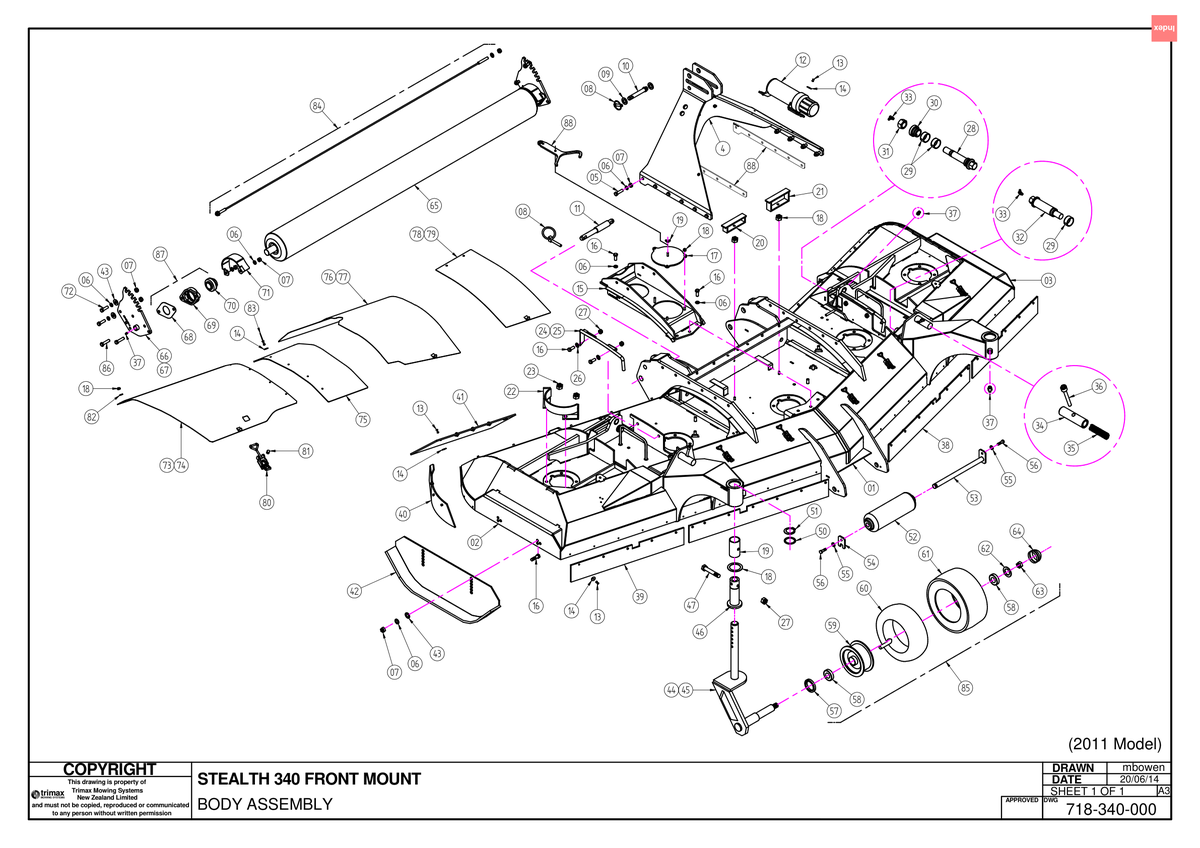

718 - Stealth Original FM 340 - Body Assembly

Stealth Original FM 340

Grouped product items
No.	Product Name	Price
4	Headstock Weldment 413-000-060 More Info >	Price on Request
5	Bolt - Hex Head - M12 x 50 - Trimax Specification 301-212-503 More Info >	$3.16
6	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	$0.45
7	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	$0.57
8	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	$2.76
9	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	$1.02
10	Pin - Linkage - Top Link 419-301-150 More Info >	$14.76
11	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	$29.29
12	Operators Manual Tube W/ Molded Bracket 450-000-073 More Info >	$45.45
13	Blind Rivet 213-000-004 More Info >	$1.02
14	Washer - Fender 108-031-413 More Info >	$1.10
15	Gearbox Mount Weldment - Stealth FM/Original 417-000-708 More Info >	$1,402.27
17	Pulley Cover Weldment 417-000-893 More Info >	Price on Request
18	Nut - Nyloc 307-208-053 More Info >	$0.17
19	Nut - Wing 307-208-263 More Info >	Price on Request
20	Drive Belt Guide Low 417-330-480 More Info >	$9.49
21	Drive Belt Guide High 417-330-470 More Info >	$9.67
22	Belt Retainer Guide 417-330-460 More Info >	$36.42
23	Nut - Half 307-212-023 More Info >	$1.13
24	Cover/Belt Support Weldment RH 417-000-718 More Info >	Price on Request
25	Cover/Belt Support Weldment LH 417-000-719 More Info >	Price on Request
26	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	$0.45
27	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	$0.67
29	Hinge Bush 402-000-016 More Info >	$26.56
30	Top Hat Bush - Wing Hinge 419-000-018 More Info >	$110.38
31	Nut - Plain 307-220-013 More Info >	$1.39
33	Grease Nipple - Trimax Specification 208-442-650 More Info >	$5.89
35	Spring - Compression 207-000-007 More Info >	Price on Request
36	Cap Screw 303-210-653 More Info >	Price on Request
37	Grease Nipple - Trimax Specification 208-442-600 More Info >	$3.61
38	Flap 410-332-013 More Info >	$33.75
42	Wing Skid Weldment - Stealth FM 412-320-113 More Info >	$366.06
43	Washer - Heavy Flat 308-120-063 More Info >	$1.84
44	Front Castor Weldment - LH 412-320-051 More Info >	$802.50
45	Front Castor Weldment - RH 412-320-052 More Info >	$802.50
46	Boss - Pivot - Ø52xØ90x177 402-320-070 More Info >	$437.59
47	Bolt - Hex Head - M12 x 65 - Trimax Specification 301-212-653 More Info >	$1.88
48	Washer - Thrust Ø52.2xØ90x5 402-320-080 More Info >	$30.56
49	Bush - Pivot 402-320-060 More Info >	$189.69
50	Washer - Retaining Ø65xØ52.2x2 412-320-090 More Info >	$122.92
51	Circlip/Snap Ring - External 204-820-522 More Info >	$6.51
52	Roller - Front Anti-scalp 414-320-030 More Info >	$523.73
53	Axle - Anti-scalp Roller 419-320-040 More Info >	$333.08
54	Axle Retainer 419-170-060 More Info >	$11.04
55	Washer - Spring 308-080-043 More Info >	$0.12
56	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	$0.61
58	Bearing - Tapered Roller 401-021-870 More Info >	$50.29
59	Wheel Rim 416-449-013 More Info >	$184.21
60	Tube 416-449-012 More Info >	Price on Request
61	Tyre 416-449-011 More Info >	Price on Request
62	Washer - Heavy Flat 308-160-063 More Info >	$1.65
63	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	$1.02
64	Grease Cap - Wheel 416-449-015 More Info >	$24.66
65	Roller Weldment - Centre Body 414-000-046 More Info >	$867.27
66	Quadrant Weldment - RH Front - Stealth FM/Original 412-000-170 More Info >	$64.20
67	Quadrant Weldment - LH Front - Stealth FM/Original 412-000-171 More Info >	$64.20
68	Gasket - Paper - Roller Bearing Housing 401-020-802 More Info >	$6.12
69	Roller Bearing Kit with Gasket and Grub Screw - Trimax Specification 401-020-801 More Info >	$92.00
70	Roller Bearing Assembly - Trimax Specification 401-020-701 More Info >	$104.00
71	Bearing Protector 410-000-201 More Info >	$133.17
72	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	$2.93
75	Filler Rubber 410-330-375 More Info >	$43.59
80	Adjustable Catch - Covers 423-080-220 More Info >	$30.00
81	Blind Rivet 213-443-250 More Info >	$0.57
82	Washer - Flat 308-080-016 More Info >	$0.12
83	Blind Rivet 213-443-210 More Info >	$0.38
84	Roller Scraper 404-320-127 More Info >	$69.55
85	Wheel Assembly 416-449-010 More Info >	$284.40
88	Headstock Spacer 417-001-035 More Info >	Price on Request
