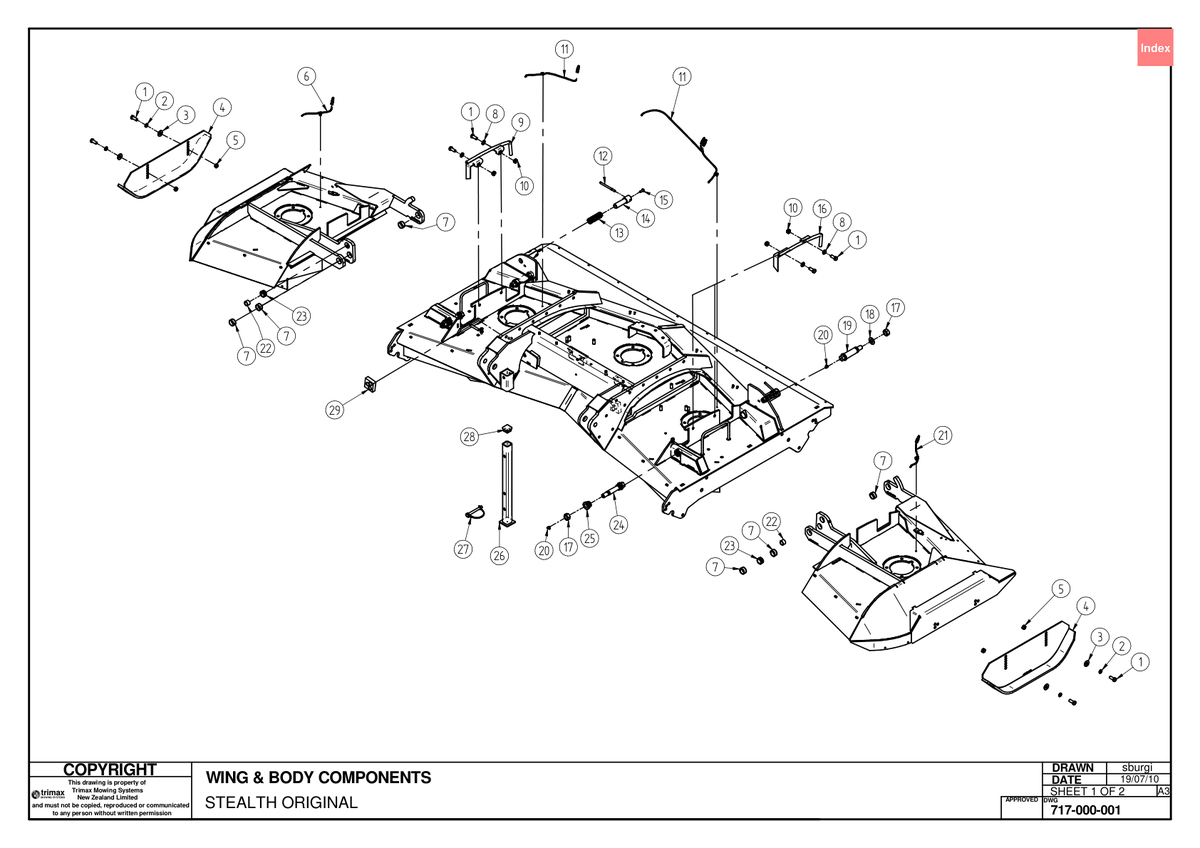

717 - Stealth Original 340 - Mower Body and Wing Components

Stealth Original 340

Grouped product items
No.	Product Name	Price
1	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	$2.36
2	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	$0.45
3	Washer - Heavy Flat 308-120-063 More Info >	$1.84
4	Skid Weldment - Rear Mount ��6" Rollers ST 412-320-112 More Info >	$214.00
5	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	$0.57
6	Grease Line - 240mm 903-007-031 More Info >	$9.42
7	Hinge Bush 402-000-016 More Info >	$26.56
8	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	$0.45
9	Cover/Belt Support Weldment RH 417-000-718 More Info >	Price on Request
10	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	$0.67
12	Unlocking Lever 419-000-027 More Info >	Price on Request
13	Spring - Compression 207-000-005 More Info >	Price on Request
14	Unlocking Pin 419-000-028 More Info >	Price on Request
15	Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203 More Info >	$0.90
16	Cover/Belt Support Weldment LH 417-000-719 More Info >	Price on Request
17	Nut - Plain 307-220-013 More Info >	$1.39
18	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	$1.02
20	Grease Nipple - Trimax Specification 208-442-650 More Info >	$5.89
22	Bush - Inner Ring 401-021-860 More Info >	$42.80
23	Bush 402-061-050 More Info >	$40.13
25	Top Hat Bush - Wing Hinge 419-000-018 More Info >	$110.38
26	Support Leg Assembly 413-480-661 More Info >	Price on Request
27	Pin 406-346-410 More Info >	$6.33
28	Cap - Tube Insert Square 209-480-661 More Info >	$19.90
29	Damper 408-448-010 More Info >	$19.05
