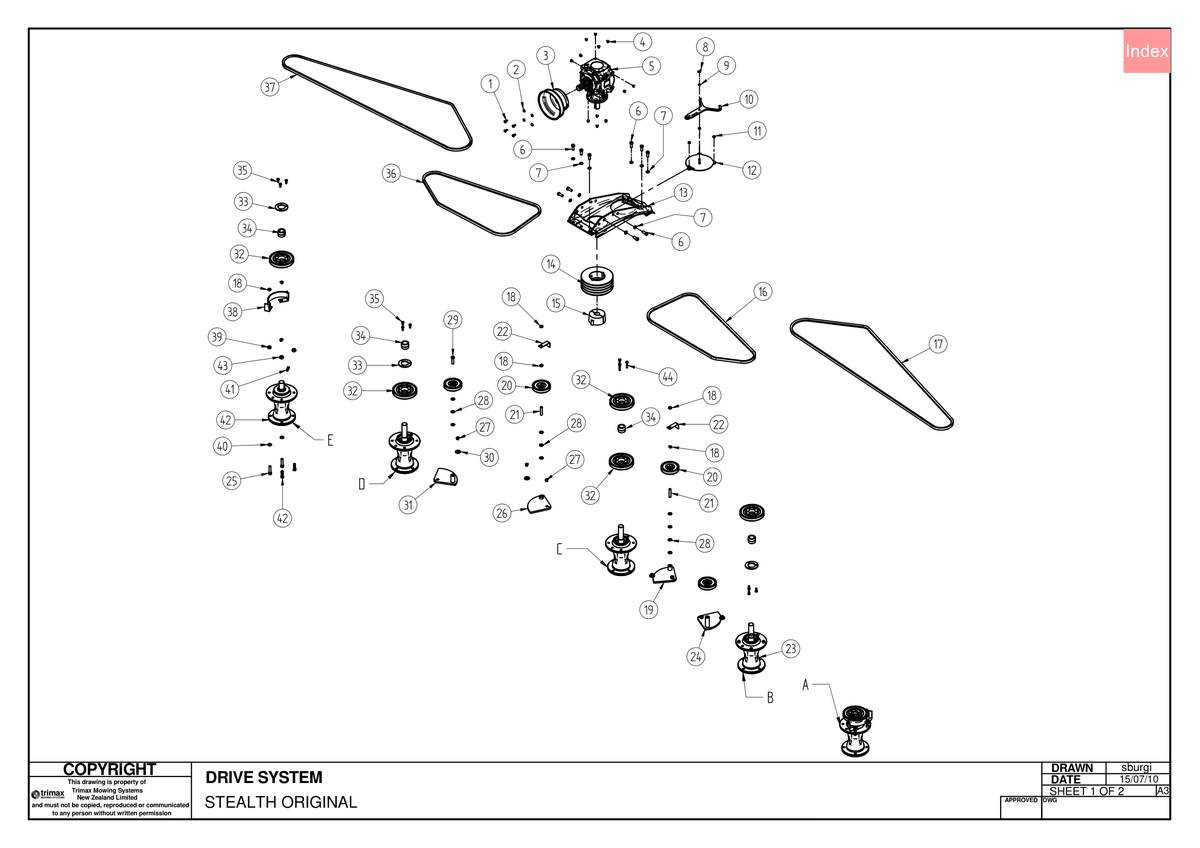

717 - Stealth Original 340 - Drive System

Stealth Original 340

Grouped product items
No.	Product Name	Price
1	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	$0.61
2	Washer - Flat 308-080-016 More Info >	$0.12
3	Cone - PTO Holes Punched 410-440-402 More Info >	$44.94
4	Blanking Plug - M12 209-900-012 More Info >	$0.45
5	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	$1,712.00
6	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	$2.36
7	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	$0.45
8	Nut - Wing 307-208-263 More Info >	Price on Request
9	Washer - Spring 308-080-043 More Info >	$0.12
10	Height Adjuster Tool - Roller 450-000-058 More Info >	Price on Request
11	Nut - Nyloc 307-208-056 More Info >	$0.90
12	Pulley Cover Weldment 417-000-893 More Info >	Price on Request
13	Gearbox Mount Weldment - Stealth FM/Original 417-000-708 More Info >	$1,402.27
14	Pulley - Taper Lock 403-361-270 More Info >	$224.52
15	Bush - Taper Lock 402-060-680 More Info >	$83.73
16	Vee Belt - Trimax Specification 404-040-830 More Info >	$50.00
17	Vee Belt - Trimax Specification 404-041-300 More Info >	$78.11
18	Nut - Half 307-212-023 More Info >	$1.13
19	Idler Tower Incl Base 403-330-423 More Info >	$53.03
20	Pulley Assembly - Idler 403-360-111 More Info >	$112.40
21	Stud 403-330-443 More Info >	$0.90
22	Belt Retainer Guide 417-330-450 More Info >	$11.82
23	Spindle Assembly - Type 5a Ext 50mm 504-328-042 More Info >	$985.52
24	Idler Tower Incl Base 403-330-442 More Info >	$88.29
25	Cap Screw - Socket Head - M12 x 50 - Trimax Specification 303-212-505 More Info >	$4.85
26	Idler Tower Incl Base 403-330-424 More Info >	$89.27
27	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	$0.57
28	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	$0.45
29	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	$3.04
30	Washer - Heavy Flat 308-120-063 More Info >	$1.84
31	Idler Tower Incl Base 403-330-432 More Info >	$71.54
32	Pulley 403-360-300 More Info >	$80.25
33	Retainer Ring 402-060-450 More Info >	$17.30
34	Bush 402-060-320 More Info >	$30.58
35	Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203 More Info >	$0.90
38	Belt Retainer Guide 417-330-460 More Info >	$36.42
39	Nut - Plain 307-212-010 More Info >	$1.61
40	Washer - Hardened 108-071-513 More Info >	$4.58
41	Nipple 450-900-035 More Info >	$13.45
42	Spindle Assembly - Type 5b Short Ext 50mm 504-328-043 More Info >	$985.52
43	Nut - Flange 450-000-078 More Info >	$3.85
44	Bolt - Hex Head - M8 x 40 - Trimax Specification 301-208-403 More Info >	$1.28
