NOTES:

Part #	Number on image	Usage Notes
301-616-103	7	An oversize O.D. bush is available on request, use P/N 402-061-100
416-449-011	41	Front wheel can be ordered as an assembly, use P/N 416-449-010
416-449-012	42	Front wheel can be ordered as an assembly, use P/N 416-449-010
416-449-013	43	Front wheel can be ordered as an assembly, use P/N 416-449-010
401-021-870	45	Front wheel can be ordered as an assembly, use P/N 416-449-010
416-449-015	48	Front wheel can be ordered as an assembly, use P/N 416-449-010
306-206-303	68	Not fitted in all markets
424-101-170	88	Not fitted in all markets
404-320-127	89	Not fitted in all markets

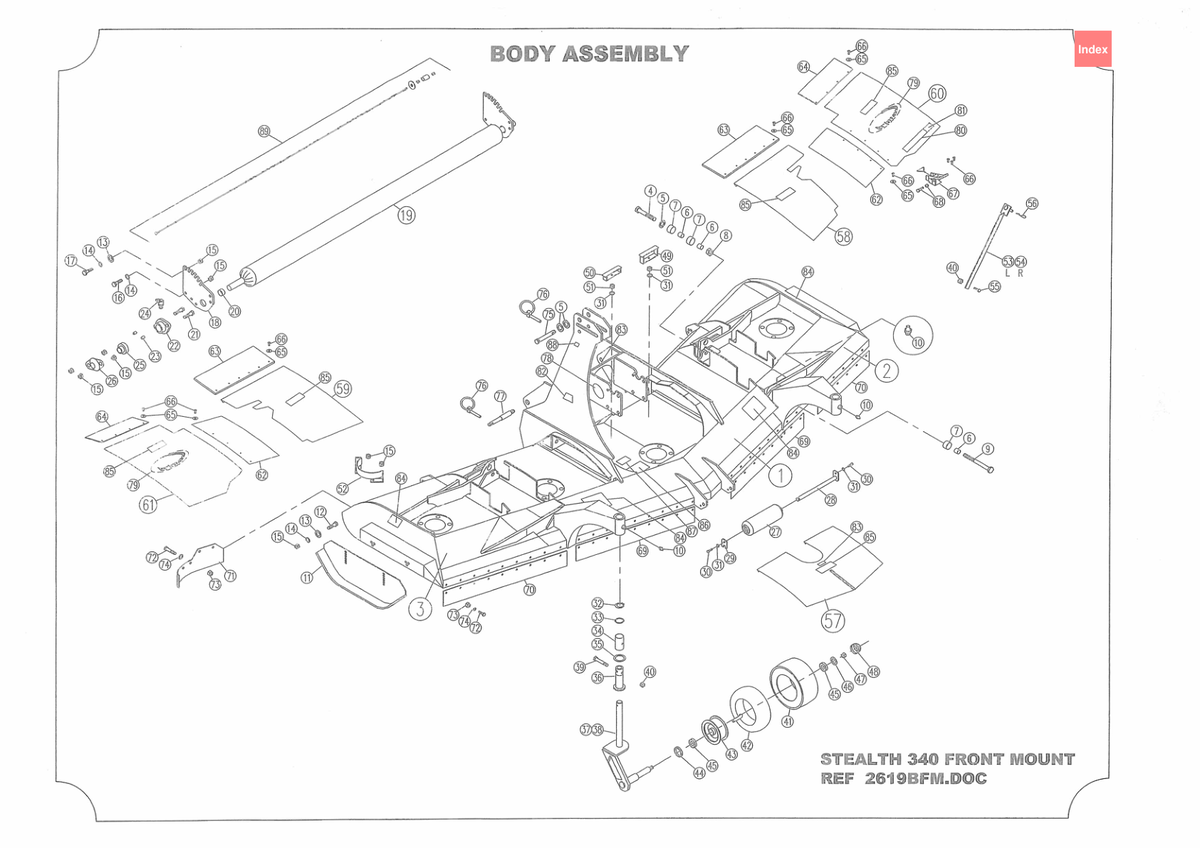

715 - 340 Stealth S1 FM - Body Assembly

Stealth S1 FM 340

Grouped product items
No.	Product Name	Price
4	Bolt 305-620-153 More Info >	$33.67
5	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	$1.02
6	Bush - Inner Ring 401-021-860 More Info >	$42.80
7	Bolt i See notes section for usage notes on this part 301-616-103 More Info >	$5.93
8	Nut - Plain 307-220-013 More Info >	$1.39
9	Bolt 301-620-203 More Info >	$38.52
10	Grease Nipple - 1/4" Short 208-442-600 More Info >	$3.61
11	Wing Skid Weldment - Stealth FM 412-320-113 More Info >	$366.06
12	Bolt 301-212-353 More Info >	$2.71
13	Washer - Heavy Flat 308-120-063 More Info >	$1.84
14	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	$0.45
15	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	$0.57
17	Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403 More Info >	$2.93
18	Quadrant - Roller Mounting ��6" Rollers ST 412-320-101 More Info >	$90.10
19	Roller Weldment - FrST/RrSTFM 414-320-015 More Info >	$889.79
20	Sleeve 402-464-062 More Info >	$17.73
21	Bolt - Hex Head M12 x 50 - Trimax Specification - 301-212-503 More Info >	$3.16
22	Roller Bearing Assembly - 1-3/8" x UCFL207 - 401-020-701 More Info >	$86.00
23	Sleeve 402-480-740 More Info >	$5.02
24	Grease Nipple 208-442-620 More Info >	$4.47
26	Cap 410-464-072 More Info >	$36.38
27	Roller - Front Anti-scalp 414-320-030 More Info >	$523.73
28	Axle - Anti-scalp Roller 419-320-040 More Info >	$333.08
29	Axle Retainer 419-170-060 More Info >	$11.04
30	Bolt 301-208-203 More Info >	$0.90
31	Washer - Spring 308-080-043 More Info >	$0.12
32	Circlip/Snap Ring - External 204-820-522 More Info >	$6.51
33	Washer - Retaining Ø65xØ52.2x2 412-320-090 More Info >	$122.92
34	Bush - Pivot 402-320-060 More Info >	$189.69
35	Washer - Thrust Ø52.2xØ90x5 402-320-080 More Info >	$30.56
36	Boss - Pivot - Ø52xØ90x177 402-320-070 More Info >	$437.59
37	Front Castor Weldment - LH 412-320-051 More Info >	$802.50
38	Front Castor Weldment - RH 412-320-052 More Info >	$802.50
39	Bolt 301-212-653 More Info >	$1.88
40	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	$0.67
41	Tyre i See notes section for usage notes on this part 416-449-011 More Info >	Price on Request
42	Tube i See notes section for usage notes on this part 416-449-012 More Info >	Price on Request
43	Wheel Rim i See notes section for usage notes on this part 416-449-013 More Info >	$184.21
45	Bearing - Tapered Roller i See notes section for usage notes on this part 401-021-870 More Info >	$50.29
46	Washer - Heavy Flat 308-160-063 More Info >	$1.65
47	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	$1.02
48	Grease Cap - Wheel i See notes section for usage notes on this part 416-449-015 More Info >	$24.66
49	Drive Belt Guide High 417-330-470 More Info >	$9.67
50	Drive Belt Guide Low 417-330-480 More Info >	$9.49
51	Nut - Nyloc 307-208-053 More Info >	$0.17
52	Belt Retainer Guide 417-330-460 More Info >	$36.42
53	Stay 417-332-064 More Info >	Price on Request
54	Stay 417-332-065 More Info >	Price on Request
55	Bolt 301-212-453 More Info >	$3.04
56	R-Clip 206-443-400 More Info >	$1.12
57	Cover 410-330-382 More Info >	$296.71
58	Cover 410-330-374 More Info >	$343.52
59	Cover 410-330-373 More Info >	$343.52
60	Cover 410-330-384 More Info >	$275.94
61	Cover 410-330-383 More Info >	$275.94
62	Filler Rubber 410-330-375 More Info >	$43.59
63	Safety Flap - Cntr Body LH/RH 410-332-012 More Info >	$64.20
65	Washer - Fender 108-031-413 More Info >	$1.10
66	Blind Rivet 213-443-250 More Info >	$0.57
67	Adjustable Catch - Covers 423-080-220 More Info >	$30.00
68	Bolt - c/w Nyloc Nut i See notes section for usage notes on this part 306-206-303 More Info >	Price on Request
69	Flap 410-332-013 More Info >	$33.75
72	Bolt 301-206-203 More Info >	$0.12
73	Nut - Nyloc 307-206-053 More Info >	$0.54
74	Washer - Fender 108-041-613 More Info >	$0.20
75	Pin - Linkage - Top Link 419-301-150 More Info >	$14.76
76	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	$2.76
77	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	$29.29
78	Serial Plate - Three-point Linkage Mowers Small NZ 426-442-800 More Info >	$10.19
80	Decal - Branding Stealth 424-100-410 More Info >	Price on Request
81	Decal - Branding - Width Only 340 424-113-400 More Info >	$9.07
82	Decal - Branding CLAWS 424-100-860 More Info >	$28.49
83	Decal - Instruction - PTO Speed 540RPM 424-100-900 More Info >	$7.89
84	Decal - Safety - Blade Warning / Thrown Objects 424-100-950 More Info >	$5.63
85	Decal - Safety - Service/Read OpMan/Belt Warning/No Step 424-101-080 More Info >	$11.04
86	Decal - Instruction - Wash Warning Large 424-101-100 More Info >	$3.61
87	Decal - Instruction - Grease Points - Spindles 424-101-120 More Info >	$2.93
88	Decal - Branding - CE i See notes section for usage notes on this part 424-101-170 More Info >	$5.56
89	Roller Scraper i See notes section for usage notes on this part 404-320-127 More Info >	$69.55
