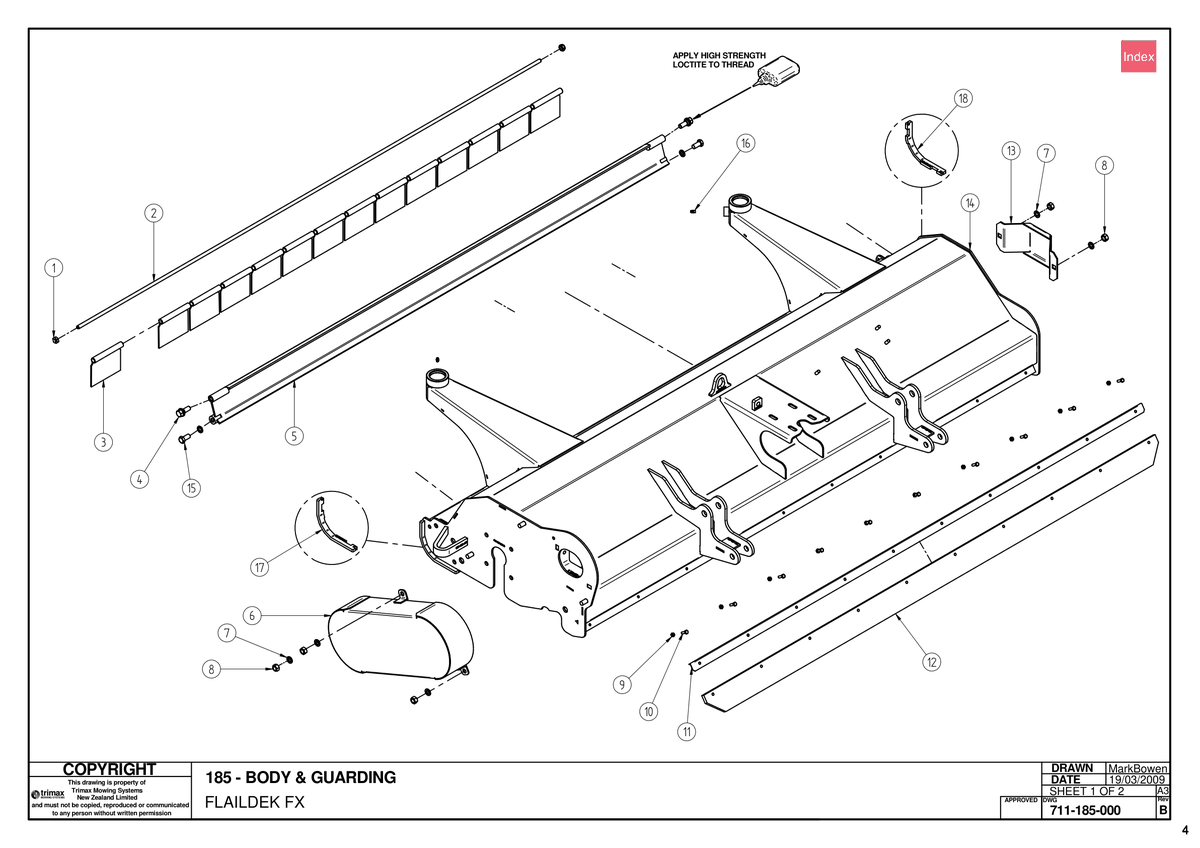

711 - Flaildek FX 185 - Body & Guarding

FlailDek FX 185

Grouped product items
No. Image Product Name Price Quantity
1 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
$0.57
2 Flap Rod 185 [417-000-603] Flap Rod 185 417-000-603
$83.95
3 Flap - Front Flap Weldment [417-000-600] Flap - Front Flap Weldment 417-000-600
$51.36
4 Shoulder Bolt - Converter Flap [450-000-056] Shoulder Bolt - Converter Flap 450-000-056
$60.13
5 Convertor Flap Weldment 185 [417-000-642] Convertor Flap Weldment 185 417-000-642
$409.81
6 Guard [410-152-710] Guard 410-152-710
$515.29
7 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
$0.45
8 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
$0.57
9 Nut - Nyloc [307-206-053] Nut - Nyloc 307-206-053
$0.54
10 Bolt - Hex Head - M6 x 20 - Trimax Specification [301-206-203] Bolt - Hex Head - M6 x 20 - Trimax Specification 301-206-203
$0.12
11 Clamp Strip [410-152-390] Clamp Strip 410-152-390
$71.87
13 Protector [410-152-480] Protector 410-152-480
$85.88
15 Bolt - Hex Head - M12 x 25 - Trimax Specification [301-212-253] Bolt - Hex Head - M12 x 25 - Trimax Specification 301-212-253
$2.93
16 Grease Nipple - Trimax Specification [208-442-600] Grease Nipple - Trimax Specification 208-442-600
$3.61
17 Skid Plate [417-001-187] Skid Plate 417-001-187
$77.63
18 Skid Plate [417-001-188] Skid Plate 417-001-188
$77.63
