NOTES:

Part #	Number on image	Usage Notes
404-040-430	32	Prior to serial number EM72318094, check the technical register as a large variety of vee belts were used.
403-142-000	40	The coupling bush (item 39) is included in this coupling and is not sold separately.
405-200-500	52	Very early models used the Durst A18 (old P/N 20030) or Durst A115 (old P/N 20020) gearbox. Some internal parts are still available.

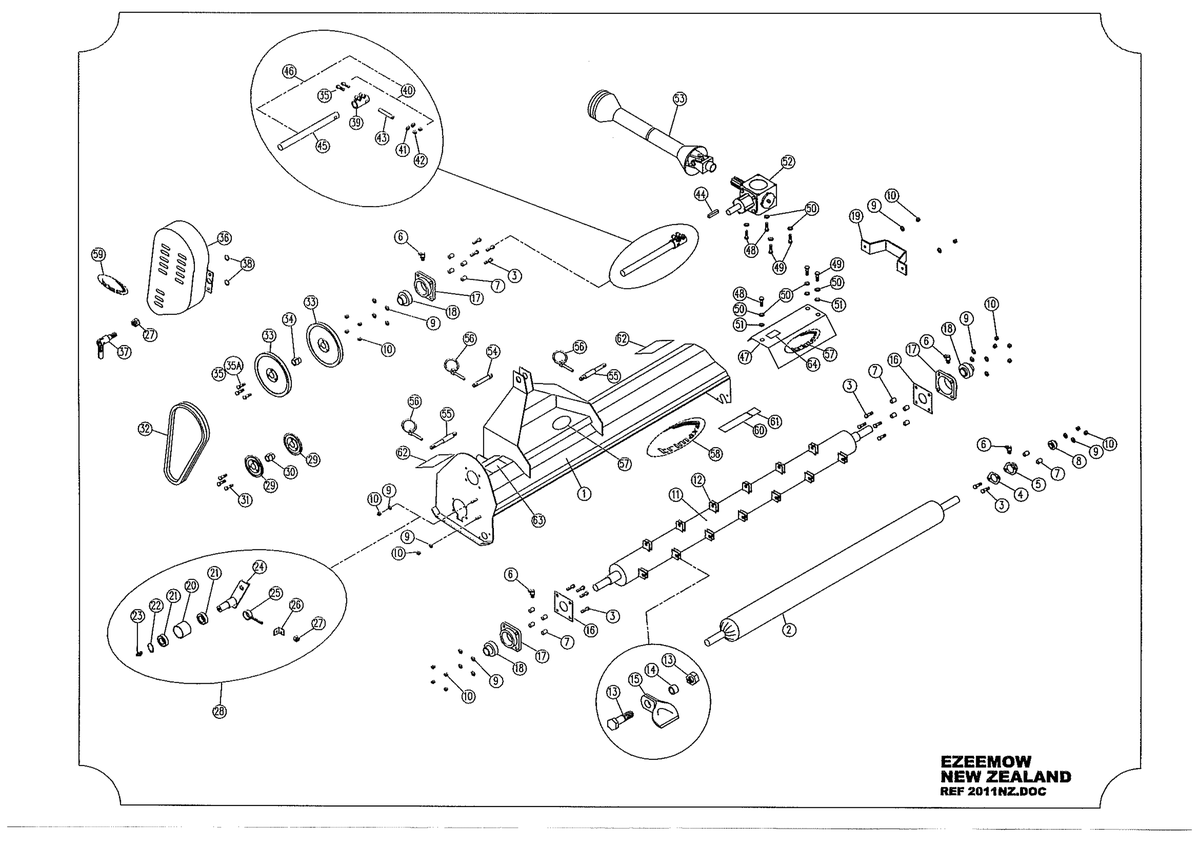

705 - Ezeemow S1 135 - Complete Assembly

Ezeemow S1 135

Grouped product items
No.	Product Name	Price
3	Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403 More Info >	$2.93
4	Shield 410-464-051 More Info >	$24.28
6	Grease Nipple 208-442-620 More Info >	$4.47
7	Sleeve 402-480-740 More Info >	$5.02
8	Bearing 401-020-000 More Info >	$16.69
9	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	$0.45
10	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	$0.57
12	Flail Lug 411-140-000 More Info >	$9.10
13	Bolt - Hex Head M10 x 40 - Trimax Specification - 305-210-403 More Info >	$2.50
14	Flail Mounting Bush - 10mm - Trimax Specification - 402-060-750 More Info >	$5.40
15	Flail 411-160-000 More Info >	$25.00
17	Bearing Housing 401-020-600 More Info >	$48.96
18	Bearing 401-020-400 More Info >	$90.95
21	Bearing 401-021-300 More Info >	$56.00
22	Circlip/Snap Ring - External 204-820-302 More Info >	$5.75
23	Grease Nipple - 1/4" Short 208-442-600 More Info >	$3.61
27	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	$0.67
31	Bolt 301-206-403 More Info >	$0.60
32	Vee Belt i See notes section for usage notes on this part 404-040-430 More Info >	$30.00
33	Pulley 403-360-700 More Info >	$110.00
34	Bush 402-060-210 More Info >	$31.79
35	Bolt 301-208-403 More Info >	$1.28
37	Drop Latch - Anti-loose 423-080-400 More Info >	$24.60
38	Button - Anti Rattle 209-446-360 More Info >	$7.70
40	Coupling Assembly i See notes section for usage notes on this part 403-142-000 More Info >	$428.00
41	Washer - Spring 308-080-043 More Info >	$0.12
42	Nut - Plain 307-208-013 More Info >	$0.17
50	Washer - Spring 308-100-043 More Info >	$0.18
51	Washer - Flat 308-100-013 More Info >	$0.54
52	Gearbox i See notes section for usage notes on this part 405-200-500 More Info >	$1,524.10
54	Pin - Linkage - Top Link 419-301-150 More Info >	$14.76
55	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	$29.29
56	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	$2.76
57	Serial Plate - Three-point Linkage Mowers Small NZ 426-442-800 More Info >	$10.19
58	Decal 424-100-350 More Info >	Price on Request
62	Decal - Safety - Blade Warning / Thrown Objects 424-100-950 More Info >	$5.63
63	Decal - Instruction - Wash Warning Large 424-101-100 More Info >	$3.61
64	Decal - Instruction - PTO Speed 540RPM 424-100-900 More Info >	$7.89
