NOTES:

Part #	Number on image	Usage Notes
405-200-720	10	The part number listed is for the current gearbox only. Serial numbers TT001 to TT030 had a T4A gearbox, and serial numbers TT031 to TTD175 had a T304 gearbox. Parts are still available on request.
402-060-680	14	Prior to serial number TT032, Bi-Loc pulleys and bushes were used on all machines. Supply serial number when ordering spare parts.
403-361-270	15	Prior to serial number TT032, Bi-Loc pulleys and bushes were used on all machines. Supply serial number when ordering spare parts.
404-041-030	23	Optional alternative: SPBX2650. Not all optional belts are available off the shelf.
404-040-480	24	Optional alternatives: SPBX1260, 5VX500. Not all optional belts are available off the shelf.
404-040-530	25	Optional alternative: SPBX1400. Not all optional belts are available off the shelf.
404-041-010	26	Not all optional belts are available off the shelf.
308-120-013	28	Quantity as required.
403-360-110	29	Old single bearing idler parts are still available on request.
403-330-423	33	Old single bearing idler parts are still available on request.
403-330-424	34	Old single bearing idler parts are still available on request.
403-330-432	35	Old single bearing idler parts are still available on request.
403-330-442	36	Old single bearing idler parts are still available on request.
101-212-323	45	From serial number TTD669 onwards, use [101-212-323] Bolt and [107-212-173] Nyloc Nut. Supply serial number when ordering.
504-328-011	53	Early spindles were shorter with a bolt-on extension. Supply serial number when ordering.

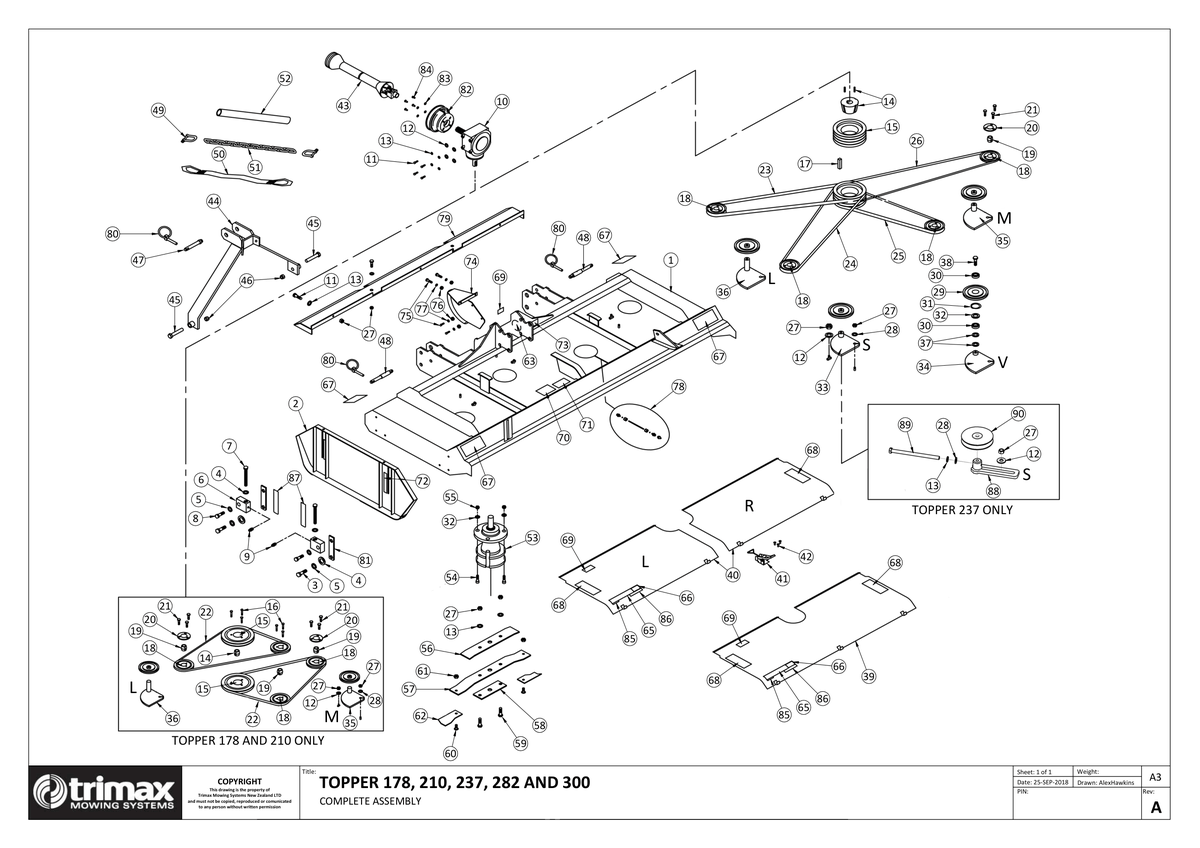

703 - Topper S1 282 - Complete Assembly

Topper S1 282

Grouped product items
No.	Product Name	Price
2	Side Channel Weldment - Topper 282 (210, 300) Painted 412-330-224 More Info >	$738.30
3	Bolt - Hex Head - M16 x 35 - Trimax Specification 301-216-353 More Info >	$3.64
4	Washer - Heavy Flat 308-160-063 More Info >	$1.65
5	Washer - Spring 308-160-043 More Info >	$0.67
6	Block - Height Adjuster 412-000-154 More Info >	$97.65
7	Height Adj. Screw 412-850-221 More Info >	$66.34
8	Bolt - Hex Head - M16 x 55 - Trimax Specification 301-216-553 More Info >	$6.42
9	Grease Nipple - Trimax Specification 208-442-600 More Info >	$3.61
10	Gearbox - Standard Rotation - 540rpm i See notes section for usage notes on this part 405-200-720 More Info >	$1,712.00
11	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	$2.36
12	Washer - Heavy Flat 308-120-063 More Info >	$1.84
13	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	$0.45
14	Bush - Taper Lock i See notes section for usage notes on this part 402-060-680 More Info >	$83.73
15	Pulley - Taper Lock i See notes section for usage notes on this part 403-361-270 More Info >	$224.52
17	Key 405-425-940 More Info >	$3.52
18	Pulley 403-360-300 More Info >	$80.25
19	Bush 402-060-320 More Info >	$30.58
20	Retainer Ring 402-060-450 More Info >	$17.30
21	Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203 More Info >	$0.90
23	Vee Belt - Trimax Specification i See notes section for usage notes on this part 404-041-030 More Info >	$65.00
24	Vee Belt - Trimax Specification i See notes section for usage notes on this part 404-040-480 More Info >	$31.30
25	Vee Belt - Trimax Specification i See notes section for usage notes on this part 404-040-530 More Info >	$34.00
26	Vee Belt - Trimax Specification i See notes section for usage notes on this part 404-041-010 More Info >	$65.00
27	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	$0.57
28	Washer - Flat M12 - Trimax Specification - i See notes section for usage notes on this part 308-120-013 More Info >	$0.45
29	Pulley - Idler i See notes section for usage notes on this part 403-360-110 More Info >	$63.89
30	Bearing - Trimax Specification - 401-021-900 More Info >	$18.65
31	Circlip/Snap Ring - Internal 204-820-371 More Info >	$6.21
32	Washer - Flat 108-071-413 More Info >	$2.88
33	Idler Tower Incl Base i See notes section for usage notes on this part 403-330-423 More Info >	$53.03
34	Idler Tower Incl Base i See notes section for usage notes on this part 403-330-424 More Info >	$89.27
35	Idler Tower Incl Base i See notes section for usage notes on this part 403-330-432 More Info >	$71.54
36	Idler Tower Incl Base i See notes section for usage notes on this part 403-330-442 More Info >	$88.29
40	Cover 410-330-345 More Info >	$403.24
40	Cover 410-330-346 More Info >	$403.24
41	Adjustable Catch - Covers 423-080-220 More Info >	$30.00
42	Blind Rivet 213-443-250 More Info >	$0.57
43	PTO Complete Driveshaft - 540/1000rpm - Trimax Specification 406-340-840 More Info >	$555.65
44	Headstock Weldment 413-331-010 More Info >	$700.85
45	Bolt i See notes section for usage notes on this part 101-212-323 More Info >	$17.98
46	Nut - Plain 107-212-013 More Info >	Price on Request
47	Pin - Linkage - Top Link 419-301-150 More Info >	$14.76
48	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	$29.29
49	Bow-Shackle 214-446-281 More Info >	$38.70
51	Steel Chain 901-070-001 More Info >	$48.15
52	Sheath - Headstock Chains 412-440-440 More Info >	$34.12
53	Spindle Assembly - Topper S1 i See notes section for usage notes on this part 504-328-011 More Info >	$1,148.84
54	Cap Screw - Socket Head - M12 x 50 - Trimax Specification 303-212-505 More Info >	$4.85
55	Nut - Plain 307-212-010 More Info >	$1.61
56	Backing Plate - Blade Beam 411-322-710 More Info >	$32.10
57	Blade Beam - LazerBladez 411-322-762 More Info >	$101.65
58	Clamp Plate - LazerBladez 411-322-820 More Info >	$37.45
59	Bolt - Hex Head - M12 x 50 - Trimax Specification 301-212-503 More Info >	$3.16
60	Blade Bolt - With M12 Nyloc Nut - LazerBlade and NexaBlade Mounting 411-322-050 More Info >	$6.50
61	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	$0.67
62	Blade - LazerBlade Flat - Flat Profile Rotary Cutting Blade 411-160-840 More Info >	$9.70
62	Blade - LazerBlade Uplift - Uplift Profile Rotary Cutting Blade 411-160-842 More Info >	$10.70
63	Serial Plate - Three-point Linkage Mowers Small NZ 426-442-800 More Info >	$10.19
65	Decal - Safety - Safety Service 424-101-390 More Info >	$13.87
67	Decal - Safety - Blade Warning / Thrown Objects 424-100-950 More Info >	$5.63
68	Decal - Safety - Service/Read OpMan/Belt Warning/No Step 424-101-080 More Info >	$11.04
69	Decal - Instruction - PTO Speed 540RPM 424-100-900 More Info >	$7.89
70	Decal - Instruction - Wash Warning Large 424-101-100 More Info >	$3.61
71	Decal - Instruction - Grease Points - Spindles 424-101-120 More Info >	$2.93
74	Centre Skid Weldment 282/300 412-330-204 More Info >	$304.10
75	Bolt - Hex Head - M10 x 25 - Trimax Specification 301-210-253 More Info >	$0.57
76	Nut - Plain M10 - Trimax Specification - 307-210-013 More Info >	$0.48
77	Washer - Spring 308-100-043 More Info >	$0.18
80	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	$2.76
81	Tag - Height Adjuster Block 412-000-155 More Info >	$48.15
82	Cone - PTO Holes Punched 410-440-402 More Info >	$44.94
83	Washer - Flat 308-080-016 More Info >	$0.12
84	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	$0.61
87	Decal - Instruction - Height Adjustment Small 424-100-960 More Info >	$3.61
90	Pulley Assembly - Idler 403-360-111 More Info >	$112.40
