NOTES:

Part #	Number on image	Usage Notes
301-212-303	3	All gearbox mounting hardware changed from M16 to M12 with the gearbox change. Supply serial number when ordering.
417-480-331	23	Rotor mounting bolts are now M16, replacing M12 bolts and sleeves. M12 bolts and rotor half rings are still available on request.
301-216-453	24	Rotor mounting bolts are now M16, replacing M12 bolts and sleeves. M12 bolts and rotor half rings are still available on request.
404-040-512	35	For serial numbers WLD276 onwards, use [404-040-512] Vee Belt. For serial numbers WLD275 and earlier, use [404-040-561] Vee Belt.
402-060-710	40	Used on all 4 belt machines (235, 265 and 295).
403-361-270	42	For serial numbers WLD276 onwards, use [403-361-270] G/Box Pulley - 200mm 4 Belt. For serial numbers WLD275 and earlier, use [403-361-280] G/Box Pulley - 250mm 4 Belt.
405-200-720	44	For serial numbers WLD276 onwards, use [405-200-720] Gearbox - TV 311 H. For serial numbers WLD275 and earlier, use [405-201-781] Gearbox - TL 278 E (145 and 175 sizes) or [405-201-901] Gearbox - TL 278 E (205 to 295 sizes). All gearbox mounting hardware changed from M16 to M12 with the gearbox change - supply serial number when ordering.
405-201-780	45	Always supply serial number, as gearbox extension lengths can vary. Fitted from serial number WLD275 onwards.
405-201-900	45	Always supply serial number, as gearbox extension lengths can vary. Fitted from serial number WLD275 onwards.
405-201-920	45	Always supply serial number, as gearbox extension lengths can vary. Fitted from serial number WLD275 onwards.
404-480-483	68	Optional part.
410-480-443	36	For left hand offset machines only.
405-200-721	44	For left hand offset machines only.

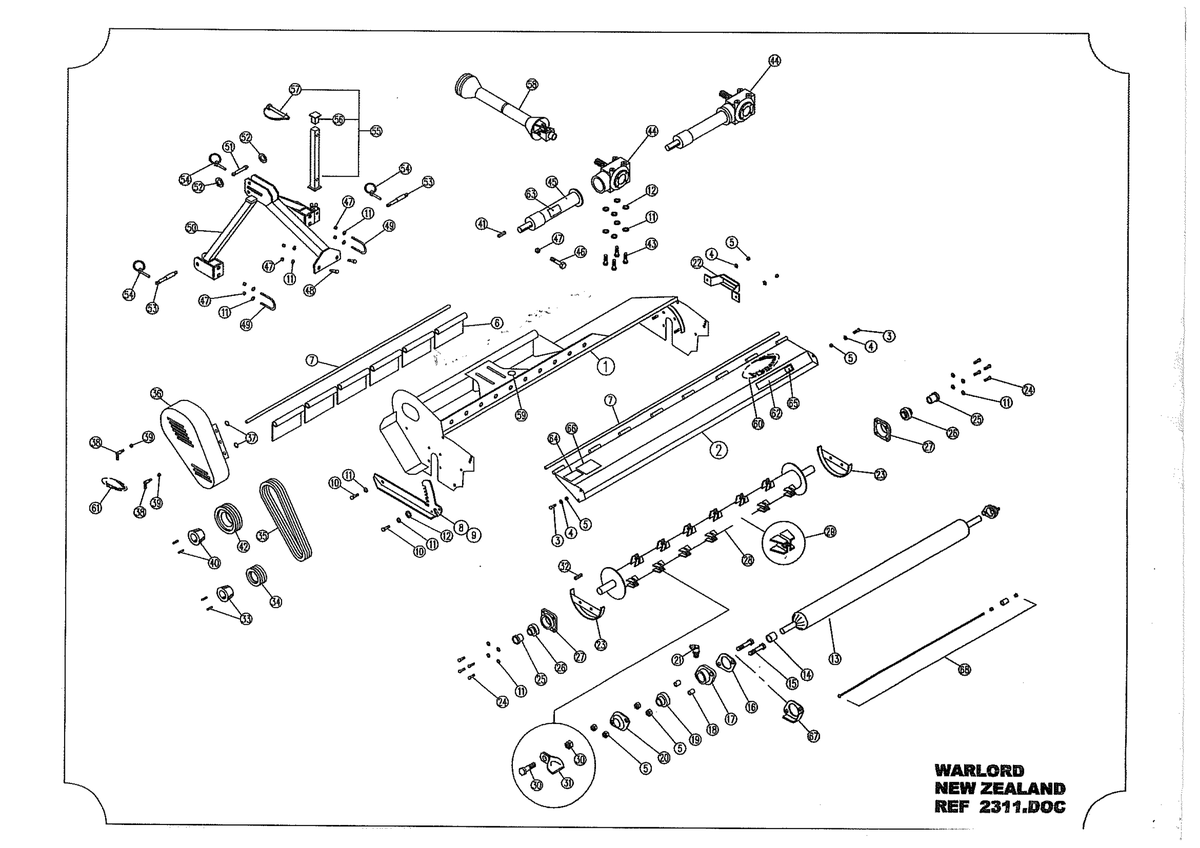

WL - Warlord S1 235 - Complete Assembly

Warlord S1 235

Grouped product items
No.	Product Name	Price
3	Bolt i See notes section for usage notes on this part 301-212-303 More Info >	$2.36
4	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	$0.45
5	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	$0.57
6	Front Flap Weldment 417-480-320 More Info >	$56.76
8	Trailing Arm Weldment - SR LH WL 412-480-351 More Info >	$293.73
9	Trailing Arm Weldment - SR RH WL 412-480-352 More Info >	$293.73
10	Bolt 301-216-403 More Info >	$3.85
11	Washer - Spring 308-160-043 More Info >	$0.67
12	Washer - Heavy Flat 308-160-063 More Info >	$1.65
13	Roller Weldment 235 414-480-480 More Info >	$1,064.65
14	Sleeve 402-464-062 More Info >	$17.73
15	Bolt - Hex Head M12 x 50 - Trimax Specification - 301-212-503 More Info >	$3.16
16	Shield 410-464-052 More Info >	$19.26
17	Bearing Housing 401-020-800 More Info >	$17.12
18	Sleeve 402-480-740 More Info >	$5.02
19	Bearing 401-020-700 More Info >	$56.92
20	Cap 410-464-072 More Info >	$36.38
21	Grease Nipple 208-442-620 More Info >	$4.47
22	Bearing Guard 410-460-302 More Info >	$148.00
23	Half Ring Lower Weldment - Rotor (M16 Captive Nuts) i See notes section for usage notes on this part 417-480-331 More Info >	$108.69
24	Bolt i See notes section for usage notes on this part 301-216-453 More Info >	$7.66
25	Sleeve - Taper 401-021-230 More Info >	$38.52
26	Bearing 401-021-210 More Info >	$86.67
27	Bearing Housing 401-021-220 More Info >	$64.20
28	Rotor 415-480-580 More Info >	Price on Request
29	Flail Lug 411-480-610 More Info >	$40.66
30	Bolt - c/w Nyloc Nut 306-216-805 More Info >	$13.38
31	Flail - Spring Steel Flail - Warlord - Trimax Specification - 411-160-200 More Info >	$42.80
32	Key - 14x9mm (Trimax Specification) 205-425-920 More Info >	$15.17
33	Bush - Taper Lock - 45mm (Trimax Specification) 402-060-730 More Info >	$52.38
34	Pulley - Taper Lock 403-361-180 More Info >	$127.85
35	Vee Belt i See notes section for usage notes on this part 404-040-512 More Info >	$78.11
36	Belt Guard Weldment - RH Offset 410-480-440 More Info >	$715.21
37	Button - Anti Rattle 209-446-360 More Info >	$7.70
38	Drop Latch - Anti-loose 423-080-400 More Info >	$24.60
39	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	$0.67
40	Bush - Taper Lock - 40mm (Trimax Specification) i See notes section for usage notes on this part 402-060-710 More Info >	$70.96
41	Key - 12x8mm (Trimax Specification) 405-425-910 More Info >	$12.72
42	Pulley - Taper Lock i See notes section for usage notes on this part 403-361-270 More Info >	$224.52
44	Gearbox - Standard Rotation - 540rpm i See notes section for usage notes on this part 405-200-720 More Info >	$1,712.00
45	Extension Shaft Assembly - Gearbox i See notes section for usage notes on this part 405-201-780 More Info >	$898.80
45	Extension Assembly i See notes section for usage notes on this part 405-201-900 More Info >	$496.48
45	Extension Assembly i See notes section for usage notes on this part 405-201-920 More Info >	$517.43
47	Nut - Plain 307-216-013 More Info >	$1.61
48	Bolt 301-216-353 More Info >	$3.64
49	U-Bolt 215-446-320 More Info >	$37.45
51	Pin - Linkage - Top Link 419-301-150 More Info >	$14.76
52	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	$1.02
53	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	$29.29
54	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	$2.76
55	Front Stand Weldment 413-480-660 More Info >	$88.98
56	Cap - Tube Insert Square 209-480-661 More Info >	$19.90
57	Pin 406-346-410 More Info >	$6.33
58	PTO Complete Driveshaft - 900mm - 540/1000rpm (Trimax Specification) 406-340-840 More Info >	$555.65
59	Serial Plate - Three-point Linkage Mowers Small NZ 426-442-800 More Info >	$10.19
60	Decal 424-100-350 More Info >	Price on Request
63	Decal - Instruction - PTO Speed 540RPM 424-100-900 More Info >	$7.89
64	Decal - Instruction - Wash Warning Large 424-101-100 More Info >	$3.61
66	Decal - Safety - Blade Warning / Thrown Objects 424-100-950 More Info >	$5.63
68	Roller Scraper i See notes section for usage notes on this part 404-480-483 More Info >	$75.00
36	Belt Guard Weldment - wDecal/AntiRatl Bungs i See notes section for usage notes on this part 410-480-443 More Info >	Price on Request
44	Gearbox - Counter Rotation - 540rpm i See notes section for usage notes on this part 405-200-721 More Info >	$1,883.20
