NOTES:

Part #	Number on image	Usage Notes
401-021-860	6	Refer to (item 6) of the Body Assembly parts listing.
408-448-094	37	This seal kit will suit both size ram spears (1.00" or 1.25"). A seal kit is still available for old style Trimax rams P/N 408-448-094.

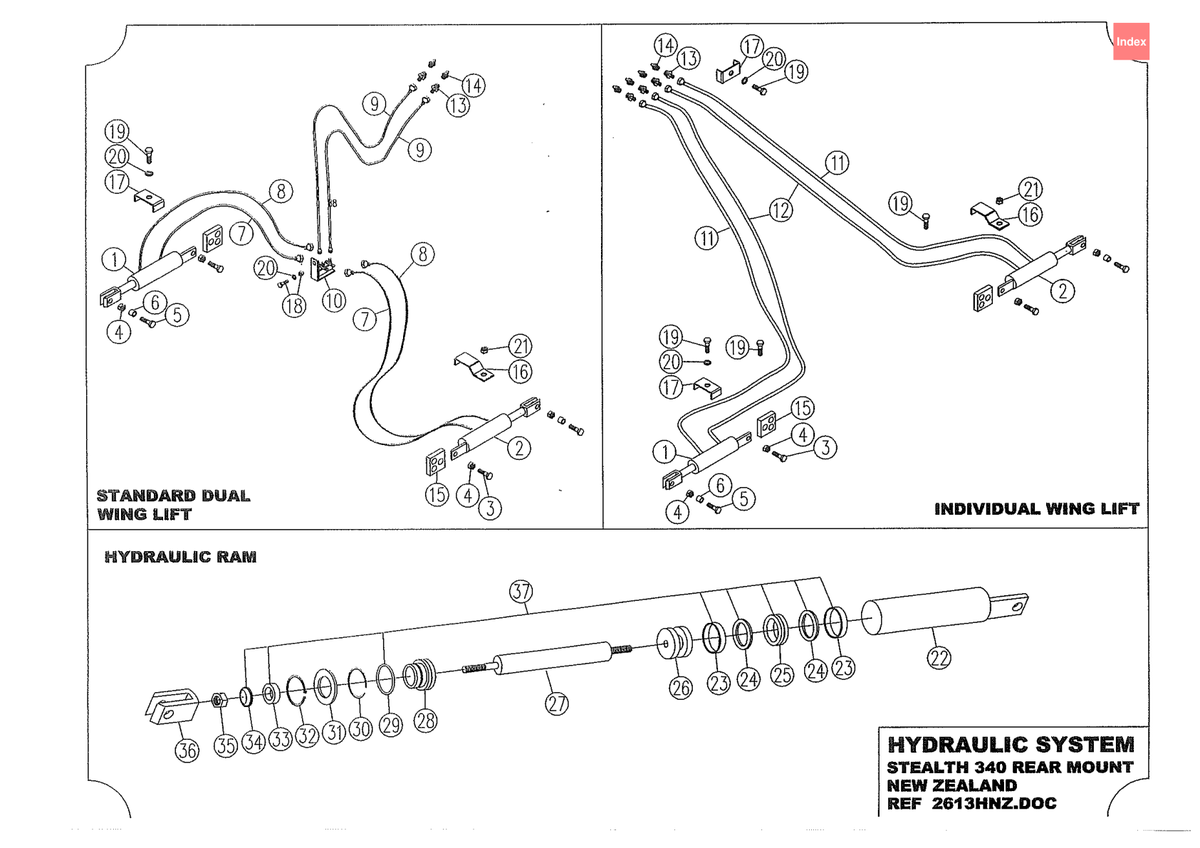

Stealth S1 - Individual Lift Hydraulic System

Stealth S1 340

Grouped product items
No.	Product Name	Price
3	Bolt 301-220-803 More Info >	$14.19
4	Nut - Plain 307-220-013 More Info >	$1.39
5	Bolt 305-220-803 More Info >	$10.24
6	Bush - Inner Ring i See notes section for usage notes on this part 401-021-860 More Info >	$42.80
13	Nipple 408-448-280 More Info >	$9.33
14	Coupling 408-447-580 More Info >	$43.96
15	Damper 408-448-010 More Info >	$19.05
19	Bolt 301-208-403 More Info >	$1.28
20	Washer - Spring 308-080-043 More Info >	$0.12
21	Nut - Plain 307-212-013 More Info >	$0.57
37	Seal Kit i See notes section for usage notes on this part 408-448-094 More Info >	$168.94
