NOTES:

Part #	Number on image	Usage Notes
409-000-086	9	Use part number 408-000-075 - Seal kit for Rear Hydraulic Cylinder Assembly
409-000-113	10	Ram Specific to Pegasus S5 722 Model only Use P/N 408-000-098 - Seal kit for side (LH & RH) Hydraulic Cylinder Assembly for Pegasus S5 722 model only
409-000-114	10	Ram Specific to Pegasus S5 722 Model only Use P/N 408-000-098 - Seal kit for side (LH & RH) Hydraulic Cylinder Assembly for Pegasus S5 722 model only
409-000-091	11	Use part number 409-000-103 - Complete Hydraulic Hose Kit for Pegasus S5
409-000-102	12	Use part number 409-000-103 - Complete Hydraulic Hose Kit for Pegasus S5

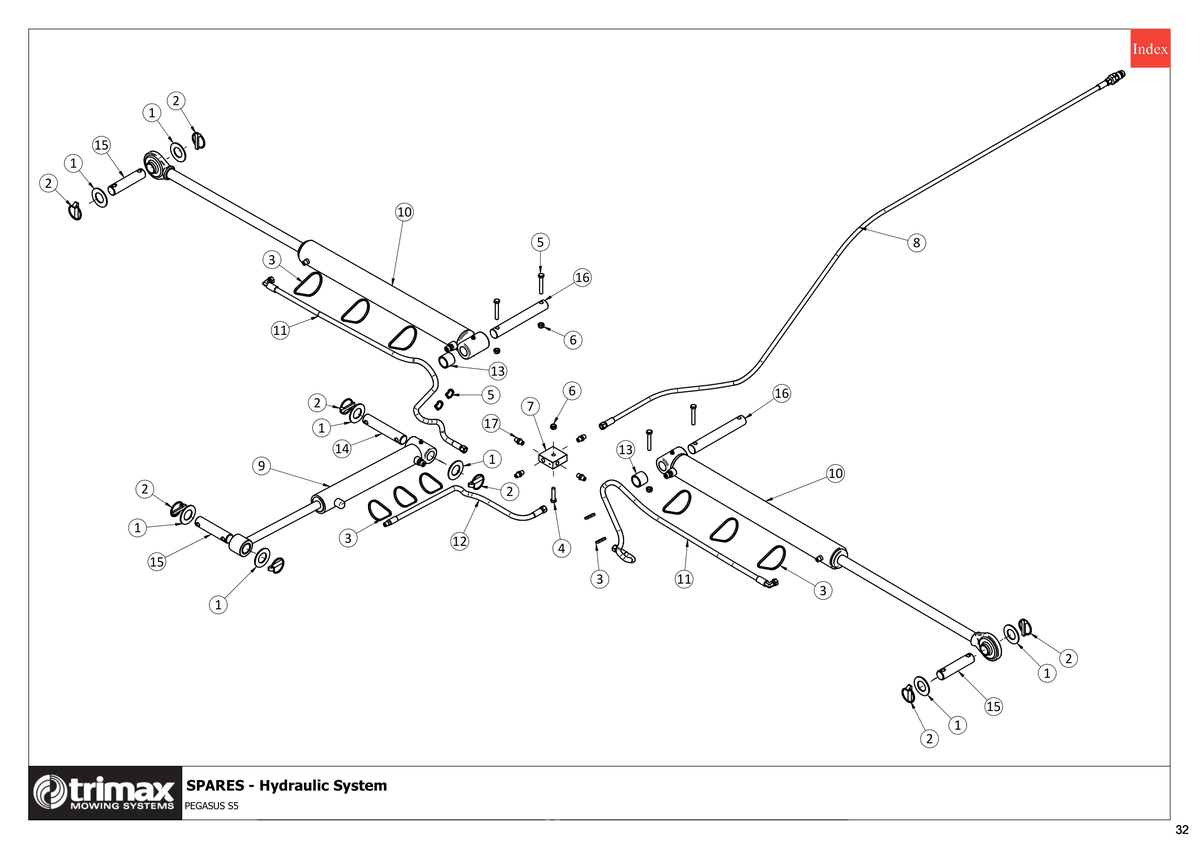

781 - Pegasus S5 SR 722 - Hydraulic System

Pegasus S5 SR 722

Grouped product items
No.	Product Name	Price
1	Washer - Flat 108-203-613 More Info >	$3.00
2	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	$2.76
3	Cable Tie - Black 210-900-011 More Info >	Price on Request
4	Bolt - Hex Head - M10 x 45 - Trimax Specification 301-210-453 More Info >	Price on Request
5	Bolt - Hex Head - M10 x 60 - Trimax Specification 301-210-603 More Info >	$0.81
6	Nut - Nyloc 307-210-053 More Info >	$0.57
7	Junction Assembly - Hydraulic 408-448-500 More Info >	$274.01
9	Hydraulic Cylinder - Ø2" x 335 Stroke - Snake i See notes section for usage notes on this part 409-000-086 More Info >	$1,070.00
10	Cylinder i See notes section for usage notes on this part 409-000-113	Price on Request
10	Cylinder i See notes section for usage notes on this part 409-000-114	Price on Request
11	Hose Assembly - Hydraulic Cylinder (LEFT, RIGHT, & REAR) i See notes section for usage notes on this part 409-000-091 More Info >	Price on Request
12	Hose Assembly - Hydraulic - Rear i See notes section for usage notes on this part 409-000-102 More Info >	$69.20
13	Spacer Tube 418-000-510 More Info >	Price on Request
14	Pin - Hydraulic Cylinder 419-000-035 More Info >	$61.46
15	Pin - Hydraulic Cylinder 419-000-039 More Info >	$58.51
16	Pin - Lift Ram - Chassis 419-000-068 More Info >	Price on Request
17	Nipple 408-447-390 More Info >	$13.57
