NOTES:

Part #	Number on image	Usage Notes
412-000-668	35	Side channels built after 2025 may have the spacer welded to the side channel. If not, use Clamp Plate 414-000-161.
412-000-669	36	Side channels built after 2025 may have the spacer welded to the side channel. If not, use Clamp Plate 414-000-161.
414-000-161	42	Side channels built after 2025 may have the spacer welded to the side channel. If not, use Clamp Plate 414-000-161.

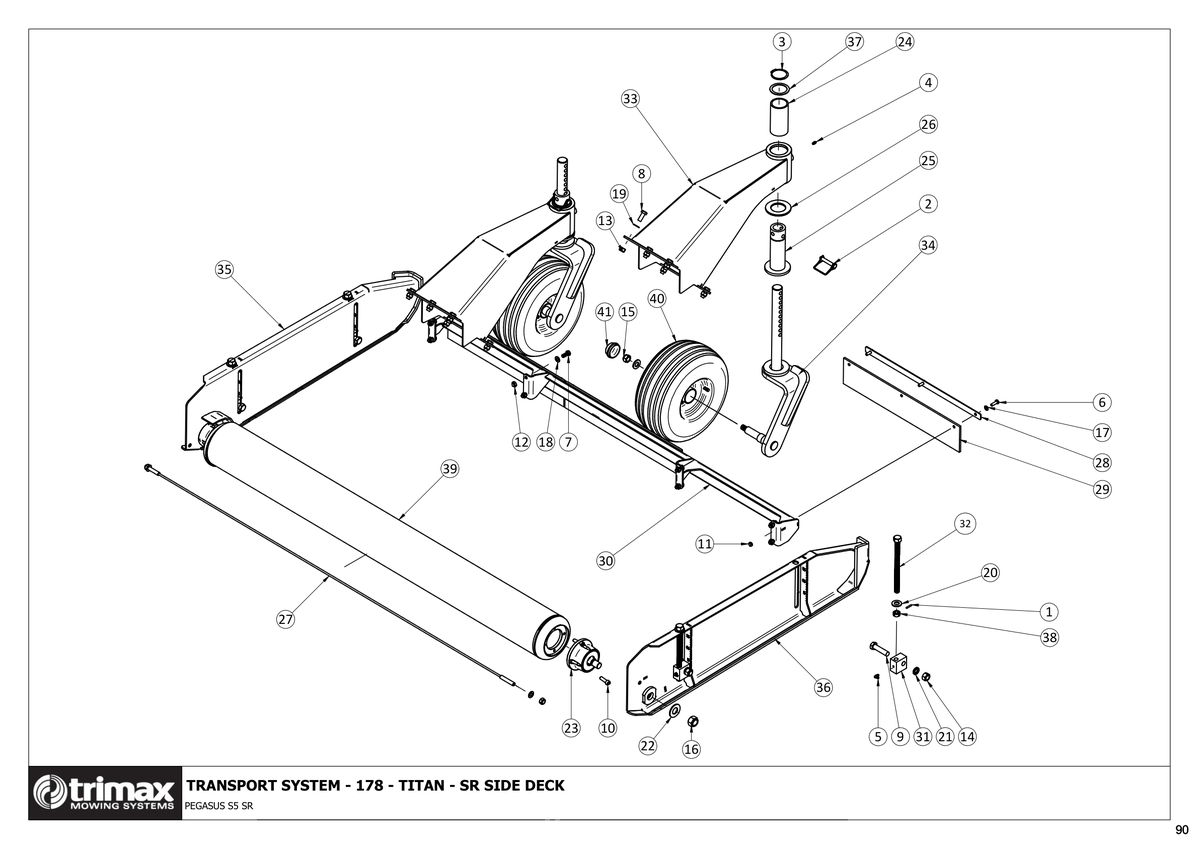

781 - Pegasus S5 SR 610 - Transport System 178 - Side Deck

Pegasus S5 SR 610

Grouped product items
No.	Product Name	Price
1	Roll Pin 202-447-980 More Info >	$5.14
2	Shaft Locking Pin - 11mm X 54mm 203-000-001 More Info >	$3.10
3	Circlip/Snap Ring - External 204-820-522 More Info >	$6.51
4	Grease Nipple - Trimax Specification 208-442-600 More Info >	$3.61
5	Grease Nipple - Trimax Specification 208-442-650 More Info >	$5.89
6	Bolt - Hex Head - M8 x 25 - Trimax Specification 301-208-253 More Info >	$0.54
7	Bolt - Hex Head - M10 x 25 - Trimax Specification 301-210-253 More Info >	Price on Request
8	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	$2.36
9	Bolt - Hex Head - M16 x 65 - Trimax Specification 301-216-653 More Info >	$6.76
10	Cap Screw - Socket Head - M10 x 35 - Trimax Specification 303-210-353 More Info >	$3.09
11	Nut - Nyloc 307-208-056 More Info >	$0.90
12	Nut - Nyloc 307-210-053 More Info >	$0.57
13	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	$0.67
14	Nut - Plain 307-216-013 More Info >	$1.61
15	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	$1.02
16	Nyloc Nut M22 307-222-053	Price on Request
17	Washer - Flat 308-080-016 More Info >	$0.12
18	Washer - Flat 308-100-013 More Info >	$0.54
19	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	$0.45
20	Washer - Heavy Flat 308-160-063 More Info >	$1.65
21	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	$5.63
22	Washer - Heavy Flat M24 - Trimax Specification 308-240-063 More Info >	$1.98
23	Roller Bearing Assembly - Titan 401-000-035 More Info >	$293.00
24	Bush - Pivot 402-320-060 More Info >	Price on Request
25	Boss - Pivot - Ø52xØ90x177 402-320-070 More Info >	Price on Request
26	Washer - Thrust Ø52.2xØ90x5 402-320-080 More Info >	$30.56
27	Scraper - Roller Scraper Kit - 178cm 404-320-122 More Info >	$80.00
28	Front Flap - Retaining Strip - Procut S5 410-000-472 More Info >	$20.65
29	Front Flap - PVK - Procut S5 410-000-474 More Info >	Price on Request
30	Bumper Weldment - 178 - Procut S5 410-000-476 More Info >	Price on Request
31	Height Adjuster Block 412-000-255 More Info >	$86.67
32	Screw Height Adj. 220mm 10.9 Grade 412-000-653	Price on Request
33	Castor Arm - Rotating - Weldment - Side Deck - Pegasus S5 SR 412-000-655 More Info >	Price on Request
34	Castor Fork - Rotating -Weldment - Side Deck - Pegasus S5 SR 412-000-658	Price on Request
35	SR Side Channel - Weldment - LH - Pegasus S5 SR i See notes section for usage notes on this part 412-000-668 More Info >	Price on Request
36	SR Side Channel - Weldment - RH - Pegasus S5 SR i See notes section for usage notes on this part 412-000-669 More Info >	Price on Request
37	Washer - Retaining - Pegasus S5 SR 412-000-671	Price on Request
38	Collar - Height Adjuster 412-850-260 More Info >	$36.93
39	Roller Weldment 414-000-157 More Info >	$930.00
40	Wheel Assembly 416-449-010 More Info >	Price on Request
41	Grease Cap - Wheel 416-449-015 More Info >	$24.66
42	Clamp Plate - Titan Bearing Pegasus S4 i See notes section for usage notes on this part 414-000-161 More Info >	$28.00
