NOTES:

Part #	Number on image	Usage Notes
416-000-121	9	For braked Axle assembly exploded view look up page 116 for individual parts
416-000-122	10	For braked Axle assembly exploded view look up page 116 for individual parts

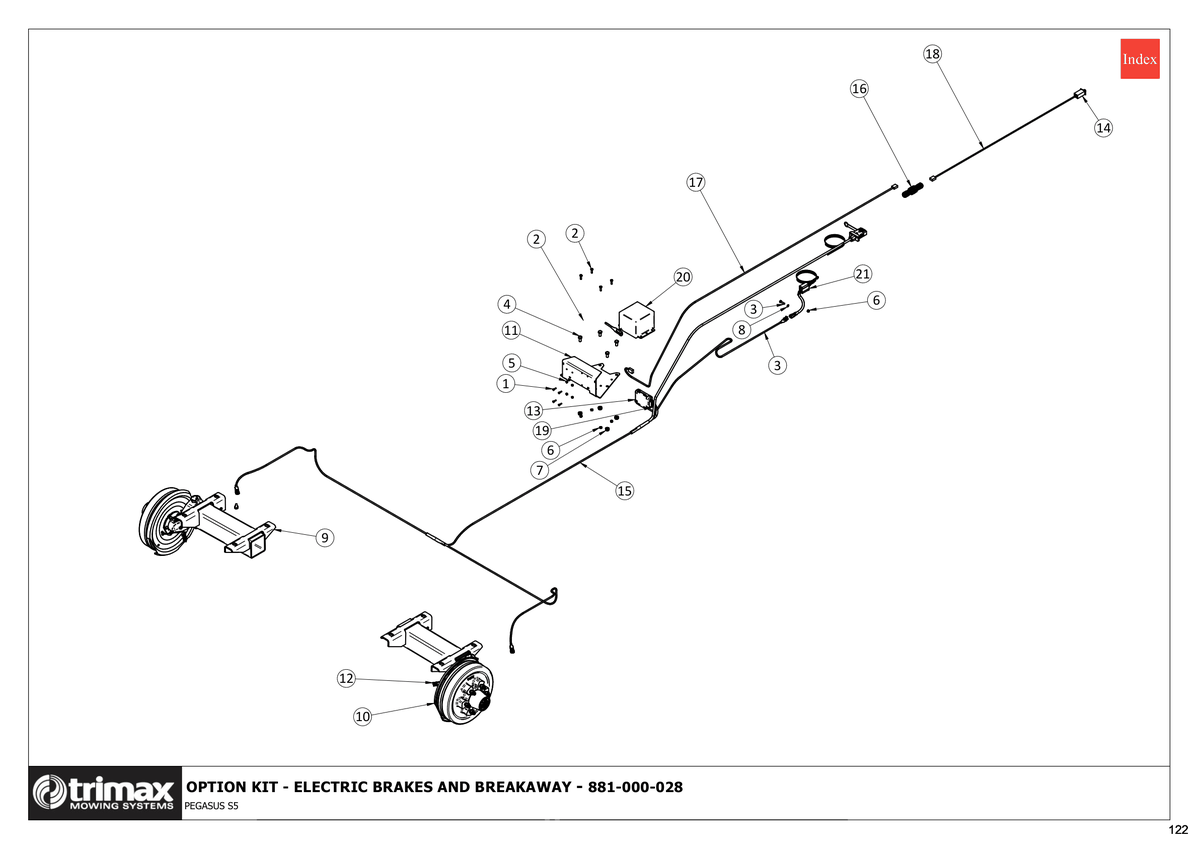

781 - Pegasus S5 SR 610 - Electric Brake Kit and Breakaway - Option

Pegasus S5 SR 610

Grouped product items
No.	Product Name	Price
1	Bolt - Hex Head - M4 x 16 - Trimax Specification 301-204-163 More Info >	$0.27
2	Bolt - Hex Head - M6 x 20 - Trimax Specification 301-206-203 More Info >	$0.12
3	Bolt - Hex Head - M6 x 25 - Trimax Specification 301-206-253 More Info >	$0.59
4	Bolt - Hex Head - M10 x 20 - Trimax Specification 301-210-203 More Info >	$1.61
5	Nut - Nyloc 307-204-053 More Info >	$0.53
6	Nut - Nyloc 307-206-053 More Info >	$0.54
7	Nut - Nyloc 307-210-053 More Info >	$0.57
8	Washer - Flat 308-060-013 More Info >	$0.04
9	Axle - Complete - 12" Electric Brake - LH i See notes section for usage notes on this part 416-000-121 More Info >	Price on Request
10	Axle - Complete - 12" Electric Brakes - RH i See notes section for usage notes on this part 416-000-122 More Info >	Price on Request
11	Brake Controller Bracket 417-001-667 More Info >	Price on Request
12	Connector Assembly 421-000-144 More Info >	Price on Request
13	Brake Controller 421-000-405 More Info >	Price on Request
14	Brake Sensitivity Controller 421-000-431 More Info >	$440.60
15	Brakes and Breakaway Wiring Loom Pegasus S5 421-000-432 More Info >	Price on Request
16	Ethernet Connector Plug 421-000-434 More Info >	Price on Request
17	Ethernet Cable - 5m (Blue) 421-000-437 More Info >	Price on Request
18	Wire - CAT6 - Brake Controller - (1000mm) 421-000-438 More Info >	Price on Request
19	Brake Sys - Terminal Block 421-000-462 More Info >	Price on Request
20	Brake Sys - Brake Away Battery Assembly 421-000-579 More Info >	Price on Request
21	Brake System - Break Away Switch Assembly 421-000-580 More Info >	Price on Request
