NOTES:

Part #	Number on image	Usage Notes
301-216-307	3	Can also use bolt P/N 301-216-303 and apply threadlocker of medium bond strength
406-340-590	8	Used on Pegasus S5 493 and Pegasus S5 610 standard Drive System only
406-000-084	9	PTO Shaft 406-000-084 include PTO Shaft 406-340-890 and PTO Decal.
406-340-592	13	Used on Pegasus S5 with MLS Drive System only

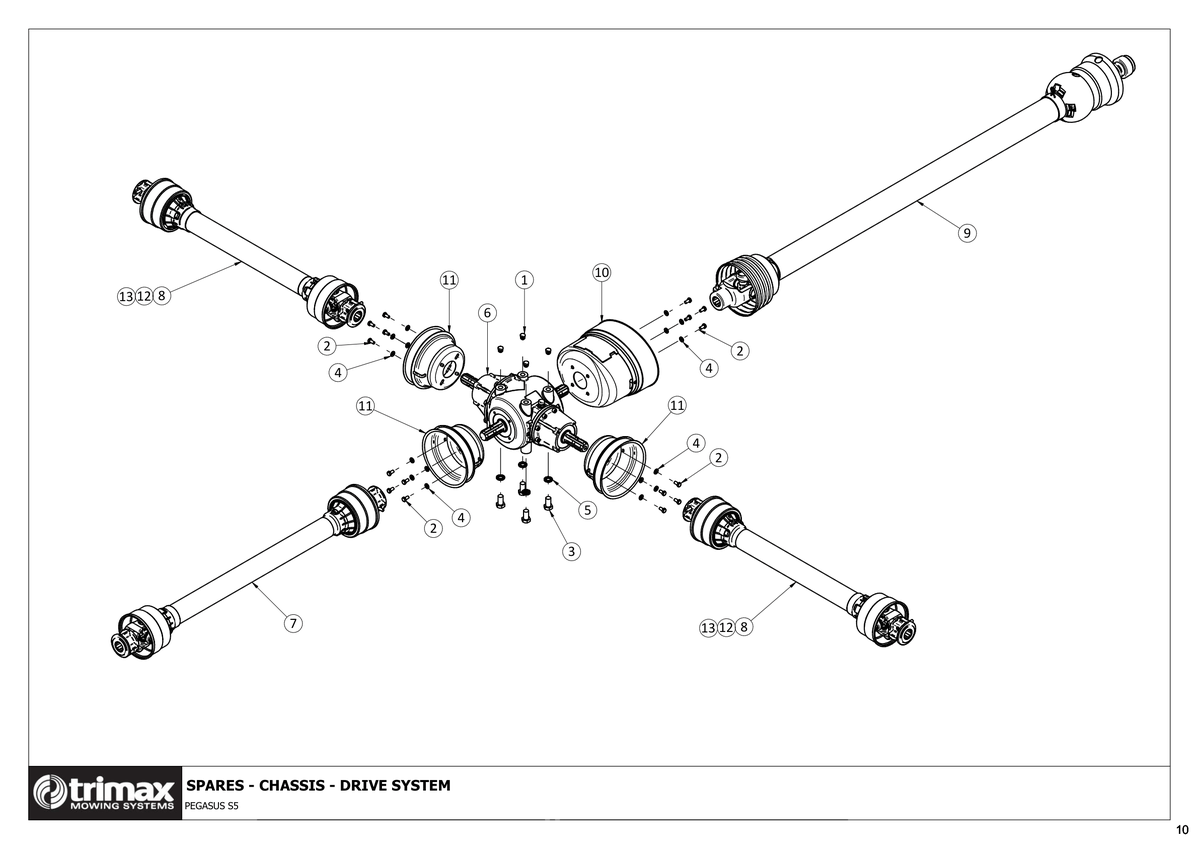

781 - Pegasus S5 SR 610 - Chassis Drive System

Pegasus S5 SR 610

Grouped product items
No.	Product Name	Price
1	Blanking Plug 209-900-013 More Info >	Price on Request
2	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	$0.61
3	Bolt - Hex Head M16 x 30 - Trimax Specification i See notes section for usage notes on this part 301-216-307 More Info >	Price on Request
4	Washer - Flat 308-080-013 More Info >	$0.05
5	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	$5.63
7	PTO Shaft 406-340-570 More Info >	$433.00
8	PTO Shaft i See notes section for usage notes on this part 406-340-590 More Info >	$434.00
9	PTO Shaft Wide Angle-T60 i See notes section for usage notes on this part 406-000-084	Price on Request
10	PTO Cone - Wide angle 410-000-257 More Info >	$110.86
11	Cone - PTO Holes Punched 410-440-402 More Info >	$44.94
13	PTO Shaft - 6 Bolt Flange i See notes section for usage notes on this part 406-340-592 More Info >	$529.00
