NOTES:

Part #	Number on image	Usage Notes
412-000-681	19	Side channels built after 2025 may have the spacer welded to the side channel. If not, use Clamp Plate 414-000-161.
412-000-682	20	Side channels built after 2025 may have the spacer welded to the side channel. If not, use Clamp Plate 414-000-161.
414-000-161	24	Side channels built after 2025 may have the spacer welded to the side channel. If not, use Clamp Plate 414-000-161.

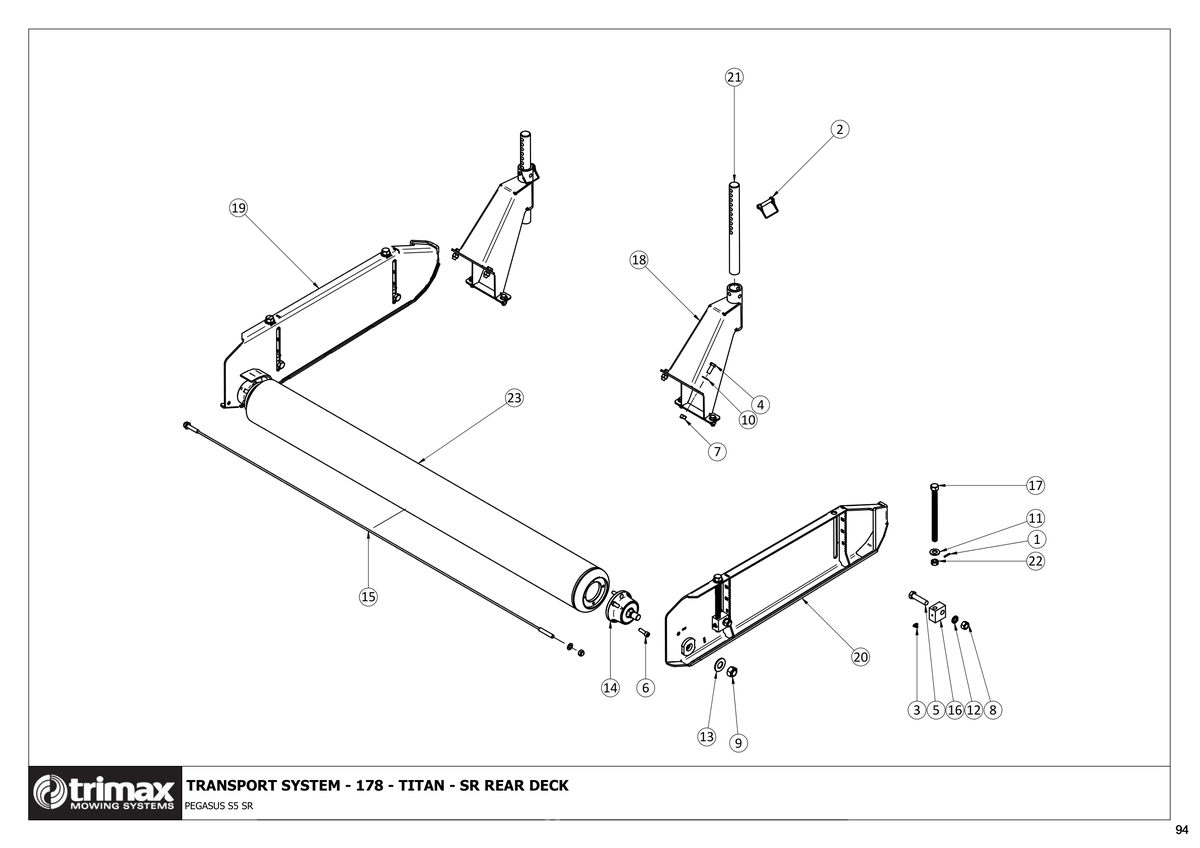

781 - Pegasus S5 SR 493 - Transport System 178 - Rear Deck

Pegasus S5 SR 493

Grouped product items
No.	Product Name	Price
1	Roll Pin 202-447-980 More Info >	$5.14
2	Shaft Locking Pin - 11mm X 54mm 203-000-001 More Info >	$3.10
3	Grease Nipple - Trimax Specification 208-442-650 More Info >	$5.89
4	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	$2.36
5	Bolt - Hex Head - M16 x 65 - Trimax Specification 301-216-653 More Info >	$6.76
6	Cap Screw - Socket Head - M10 x 35 - Trimax Specification 303-210-353 More Info >	$3.09
7	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	$0.67
8	Nut - Plain 307-216-013 More Info >	$1.61
9	Nyloc Nut M22 307-222-053	Price on Request
10	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	$0.45
11	Washer - Heavy Flat 308-160-063 More Info >	$1.65
12	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	$5.63
13	Washer - Heavy Flat M24 - Trimax Specification 308-240-063 More Info >	$1.98
14	Roller Bearing Assembly - Titan 401-000-035 More Info >	$293.00
15	Scraper - Roller Scraper Kit - 178cm 404-320-122 More Info >	$80.00
16	Height Adjuster Block 412-000-255 More Info >	$86.67
17	Screw Height Adj. 220mm 10.9 Grade 412-000-653	Price on Request
18	Dummy Stem Arm - Weldment - Rear Deck - Pegasus S5 SR 412-000-657 More Info >	Price on Request
19	SR Side Channel - Weldment - LH Rear - Pegasus S5 SR i See notes section for usage notes on this part 412-000-681 More Info >	Price on Request
20	SR Side Channel - Weldment - RH Rear - Pegasus S5 SR i See notes section for usage notes on this part 412-000-682 More Info >	Price on Request
21	Castor Stem - Pivot Shaft - Tall - Zinc - Pegasus S5 SR 412-000-726	Price on Request
22	Collar - Height Adjuster 412-850-260 More Info >	$36.93
23	Roller Weldment 414-000-157 More Info >	$930.00
24	Clamp Plate - Titan Bearing Pegasus S4 i See notes section for usage notes on this part 414-000-161 More Info >	$28.00
