NOTES:

Part #	Number on image	Usage Notes
421-000-392	28	LH and RH parts are identical.
421-000-393	30	LH and RH parts are identical.
421-000-396	34	LH and RH parts are identical.

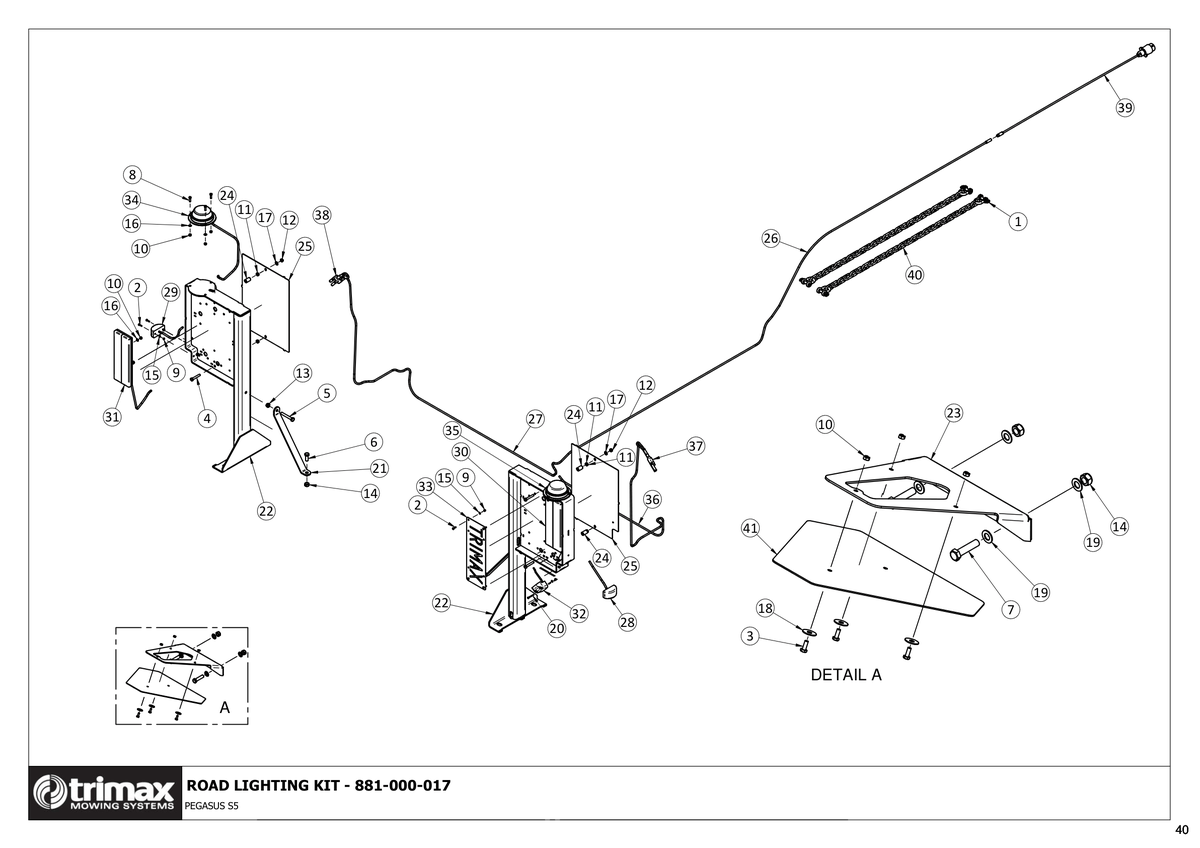

781 - Pegasus S5 SR 493 - Road Kit - Option

Pegasus S5 SR 493

Grouped product items
No.	Product Name	Price
1	D-Shackle NZS5467 214-000-002 More Info >	Price on Request
2	Bolt - Hex Head - M4 x 16 - Trimax Specification 301-204-163 More Info >	$0.27
3	Bolt - Hex Head - M6 x 16 - Trimax Specification 301-206-163 More Info >	Price on Request
4	Bolt - Hex Head - M8 x 50 - Trimax Specification 301-208-503 More Info >	Price on Request
5	Bolt - Hex Head - M10 x 70 - Trimax Specification 301-210-703 More Info >	Price on Request
6	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	$2.36
7	Bolt - Hex Head - M12 x 50 - Trimax Specification 301-212-503 More Info >	$3.16
9	Nut - Nyloc 307-204-053 More Info >	$0.53
10	Nut - Nyloc 307-206-053 More Info >	$0.54
11	Nut - Plain 307-208-013 More Info >	Price on Request
12	Nut - Nyloc 307-208-053 More Info >	$0.17
13	Nut - Nyloc 307-210-053 More Info >	$0.57
14	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	$0.67
15	Washer - Flat 308-040-013 More Info >	$0.57
16	Washer - Flat 308-060-013 More Info >	$0.04
17	Washer - Flat 308-080-013 More Info >	$0.05
18	Washer - Fender - M8 308-080-073 More Info >	Price on Request
19	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	$0.45
20	Screw 315-204-356 More Info >	Price on Request
21	Tie Support Rod- Mudguard 410-000-432 More Info >	Price on Request
22	Road Lighting - Weldment - L&R 418-000-911 More Info >	Price on Request
23	Mount Plate - Slow Moving Triangle 418-000-916 More Info >	Price on Request
24	Light Bracket - Cover Plate Spacer 418-000-931 More Info >	Price on Request
25	Light Bracket - Cover Plate 418-000-932 More Info >	Price on Request
26	Loom - Tail Light Cable 3.7m 5 Core Split End 421-000-067 More Info >	$75.50
27	Loom - Tail Light Cable 1.9m 421-000-069 More Info >	$43.44
28	Light - Side Marker i See notes section for usage notes on this part 421-000-392 More Info >	Price on Request
30	Led - Indicator & Stop Combination Pegasus S5 Custom with 500mm Wire & Plug i See notes section for usage notes on this part 421-000-393 More Info >	Price on Request
32	Light - Number Plate 421-000-394 More Info >	Price on Request
33	Road Lighting - Number Plate 421-000-395	Price on Request
34	Led Strobe Light - Safety Beacon i See notes section for usage notes on this part 421-000-396 More Info >	$297.78
36	Cable - 1.7m 4 Core Gooseneck End 421-000-400 More Info >	$47.68
37	2 Core Splitter Plug - 3 Way NAPA Part Number: 2P4WB 421-000-418 More Info >	Price on Request
38	2 Core Splitter Plug - 2 Way 421-000-450 More Info >	Price on Request
39	Trailer Plug inc. Cable 1m /w Metal Plug 421-000-586 More Info >	$313.23
40	Chain - Trailier Safety 450-000-109 More Info >	Price on Request
41	Sign - Safety Triangle 450-000-124 More Info >	Price on Request
