NOTES:

Part #	Number on image	Usage Notes
421-000-564	49	For MLS PCB use part numbers: 421-000-086 - Circuit Board - MLS - Assembly (v2) 421-000-565 - Circuit Board - MLS - Assembly (v3)

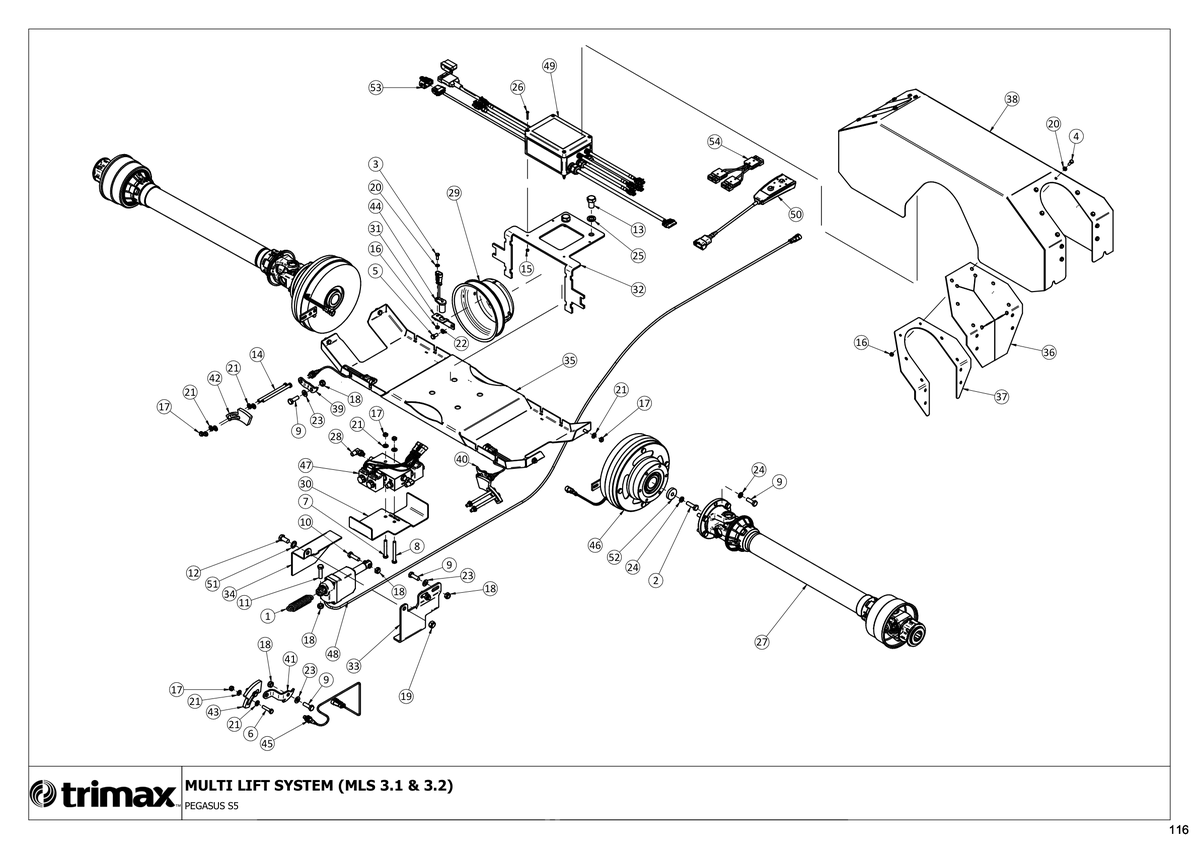

781 - Pegasus S5 SR 493 - Multi Lift System (MLS 3.1 and 3.2)

Pegasus S5 SR 493

Grouped product items
No.	Product Name	Price
1	Spring - Tension 207-000-008 More Info >	$84.06
2	Bolt 301-110-353 More Info >	Price on Request
3	Bolt - Hex Head - M6 x 16 - Trimax Specification 301-206-163 More Info >	Price on Request
4	Bolt - Hex Head - M6 x 20 - Trimax Specification 301-206-203 More Info >	$0.12
5	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	$0.61
6	Bolt - Hex Head - M8 x 35 - Trimax Specification 301-208-353 More Info >	$1.15
7	Bolt - Hex Head - M8 x 60 - Trimax Specification 301-208-603 More Info >	Price on Request
8	Bolt - Hex Head - M8 x 75 - Trimax Specification 301-208-753 More Info >	Price on Request
9	Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303 More Info >	$0.86
10	Bolt - Hex Head - M10 x 35 - Trimax Specification 301-210-353 More Info >	$1.67
11	Bolt - Hex Head - M10 x 40 - Trimax Specification 301-210-403 More Info >	Price on Request
12	Bolt - Hex Head - M12 x 25 - Trimax Specification 301-212-253 More Info >	$2.93
13	Bolt - Hex Head - M16 x 25 - Trimax Specification 301-216-253 More Info >	Price on Request
14	Bolt - Hex Head - M8 x 120 - Trimax Specification 301-608-123	Price on Request
15	Nut - Nyloc 307-204-053 More Info >	$0.53
16	Nut - Nyloc 307-206-053 More Info >	$0.54
17	Nut - Nyloc 307-208-053 More Info >	$0.17
18	Nut - Nyloc 307-210-053 More Info >	$0.57
19	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	$0.67
20	Washer - Flat 308-060-013 More Info >	$0.04
21	Washer - Flat 308-080-013 More Info >	$0.05
22	Washer - Spring 308-080-043 More Info >	Price on Request
23	Washer - Flat 308-100-013 More Info >	$0.54
24	Washer - Spring 308-100-043 More Info >	$0.18
25	Washer - Spring 308-160-043 More Info >	$0.67
26	Pan Head Machine Screw - Philips M4 x 25 SS 304 315-204-256 More Info >	Price on Request
27	PTO Shaft - 6 Bolt Flange 406-340-592 More Info >	$529.00
28	90 Deg Hyd Fitting 408-000-084 More Info >	Price on Request
29	PTO Cone - MLS - sensor/holes punched 410-440-404 More Info >	Price on Request
30	Mount Bracket Folding 418-000-398 More Info >	Price on Request
31	Folding 418-000-774 More Info >	Price on Request
32	Mount Plate - Mls Electrical Box 418-000-867 More Info >	Price on Request
33	Bracket - Remote Unlock 418-000-899 More Info >	Price on Request
34	Cover - Remote Unlock 418-000-901 More Info >	Price on Request
35	MLS Bottom Cover 418-000-942	Price on Request
36	MLS Cover Insert 418-000-943 More Info >	Price on Request
37	MLS Insert Retainer Plate 418-000-944 More Info >	Price on Request
38	MLS Top Cover 418-000-970 More Info >	Price on Request
39	Mount Tab - Prox LH - ZP 418-000-988	Price on Request
40	Mount Tab - Prox RH - ZP 418-000-989	Price on Request
41	Mount - Prox Rear - ZP 418-000-991	Price on Request
42	Sensor Outrigger Tab - Side - ZP 418-000-993	Price on Request
43	Sensor Outrigger Tab - Rear - ZP 418-000-995	Price on Request
44	Sensor & Cable Assembly - PTO Sensor - MLS 421-000-117 More Info >	$349.13
45	Sensor & Cable Assembly - Prox Sensor - MLS 421-000-118 More Info >	$331.70
46	Clutch & Plug Assembly - MLS 421-000-138 More Info >	$2,699.00
48	Actuator Assembly 421-000-397 More Info >	$1,071.00
49	Control box subassembly - MLS with Drive Protect - Firmware flashed, decal applied, unit tested i See notes section for usage notes on this part 421-000-564	Price on Request
50	Cab Controller Assembly - MLS with Drive Protect 421-000-612 More Info >	$1,137.00
51	Washer - Crinkle 450-000-116 More Info >	Price on Request
52	Retaining Washer - Electric Clutch 450-844-160 More Info >	Price on Request
53	Connector Cap 478-000-022 More Info >	Price on Request
54	Wiring Harness - Y-Connector - Trimax Specification 485-000-015 More Info >	Price on Request
