NOTES:

Part #	Number on image	Usage Notes
418-000-963	10	Use part number 510-000-079 for RH Outrigger including Hinge Bush Use part number 510-000-079 for RH Outrigger including Hinge Bush Use part number 510-000-079 for RH Outrigger including Hinge Bush Use part number 510-000-079 for RH Outrigger including Hinge Bush

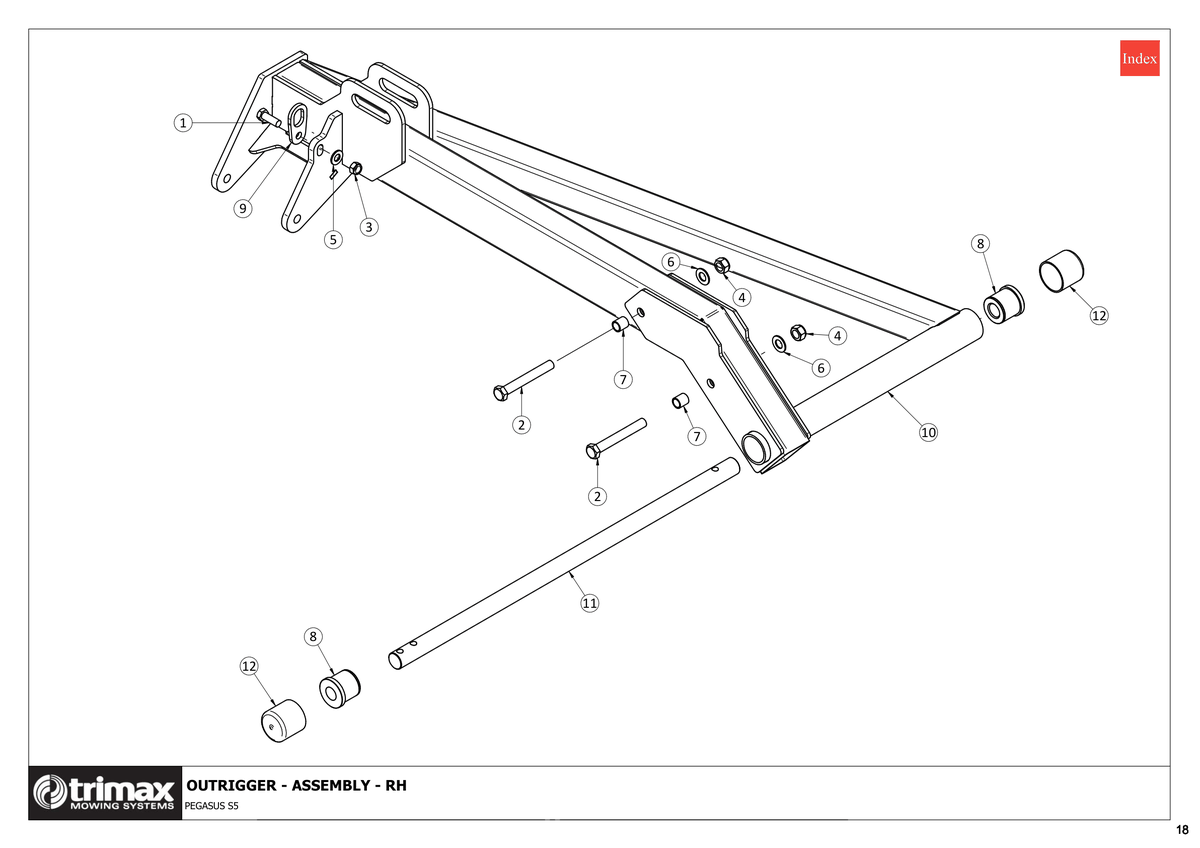

781 - Pegasus S5 - Outrigger Assembly RH

Pegasus S5 493, Pegasus S5 610, Pegasus S5 722

Grouped product items
No.	Product Name	Price
1	Bolt 301-216-453 More Info >	$7.66
2	Bolt 301-620-153 More Info >	$6.38
3	Nut - Nyloc 307-216-053 More Info >	$1.02
4	Nut - Nyloc 307-220-053 More Info >	$1.57
5	Washer - Heavy Flat 308-160-063 More Info >	$1.65
6	Washer - Flat 308-200-013 More Info >	$1.16
7	Inner Ring - Lock Bush 401-000-018 More Info >	$20.70
8	Hinge Bush - Outrigger 402-000-149 More Info >	$80.12
9	Safety Cable Attach Point - Outrigger 418-000-883 More Info >	Price on Request
10	Side Outrigger Weldment - RH i See notes section for usage notes on this part 418-000-963 More Info >	Price on Request
11	Hinge Pin - Outrigger 419-000-066 More Info >	$420.36
12	Cap - Hinge Pin Ø 1 ¼" 209-000-009 More Info >	$11.27
