NOTES:

Part #	Number on image	Usage Notes
418-000-964	10	Use part number 510-000-080 for Rear Outrigger including Hinge Bush Use part number 510-000-080 for Rear Outrigger including Hinge Bush Use part number 510-000-080 for Rear Outrigger including Hinge Bush Use part number 510-000-080 for Rear Outrigger including Hinge Bush

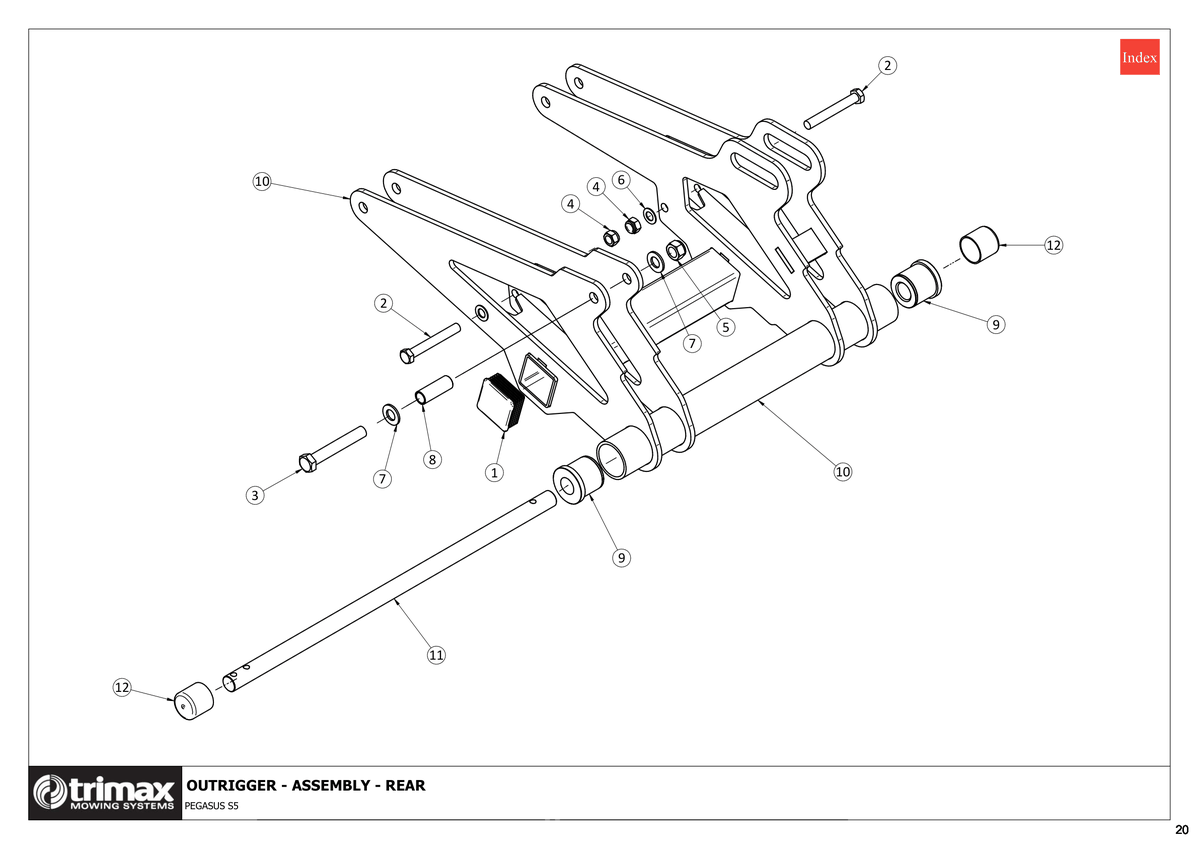

781 - Pegasus S5 - Outrigger Assembly Rear

Pegasus S5 493, Pegasus S5 610, Pegasus S5 722

Grouped product items
No.	Product Name	Price
1	Cap - 75 X75 209-000-008 More Info >	$21.14
2	Bolt 301-616-123 More Info >	$3.80
3	Bolt 301-620-133 More Info >	$16.02
4	Nut - Nyloc 307-216-053 More Info >	$1.02
5	Nut - Nyloc 307-220-053 More Info >	$1.57
6	Washer - Flat 308-160-013 More Info >	$0.79
7	Washer - Heavy Flat 308-200-064 More Info >	$1.02
9	Hinge Bush - Outrigger 402-000-149 More Info >	$80.12
10	Rear Outrigger Weldment i See notes section for usage notes on this part 418-000-964 More Info >	Price on Request
11	Hinge Pin - Outrigger 419-000-066 More Info >	$420.36
12	Cap - Hinge Pin Ø 1 ¼" 209-000-009 More Info >	$11.27
