NOTES:

Part #	Number on image	Usage Notes
418-001-251	9	Use part number 510-000-078 for LH Outrigger Arm including Hinge Bush Use part number 510-000-078 for LH Outrigger Arm including Hinge Bush Use part number 510-000-078 for LH Outrigger Arm including Hinge Bush Use part number 510-000-078 for LH Outrigger Arm including Hinge Bush

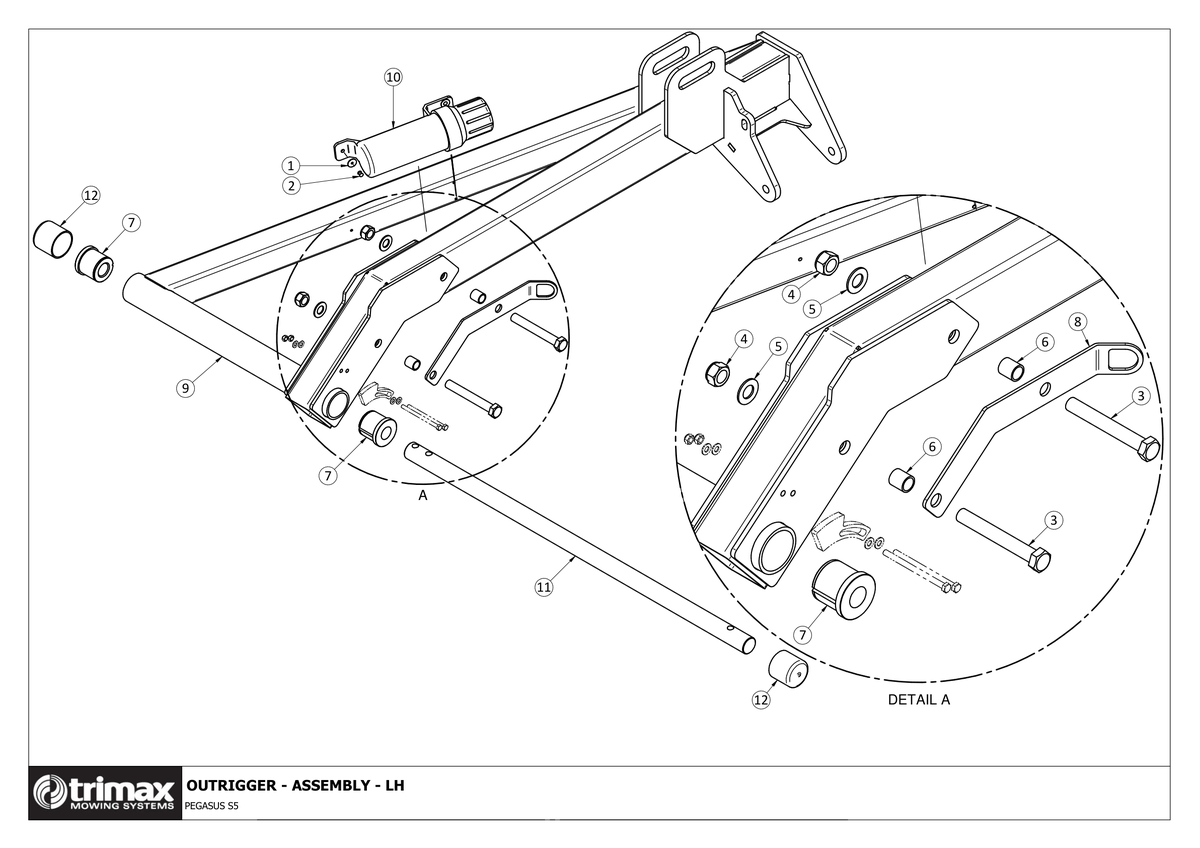

781 - Pegasus S5 - Outrigger Assembly LH

Pegasus S5 493, Pegasus S5 610, Pegasus S5 722

Grouped product items
No.	Product Name	Price
1	Washer - Fender 108-031-413 More Info >	$1.10
2	Blind Rivet 213-000-004 More Info >	$1.02
3	Bolt 301-620-153 More Info >	$6.38
4	Nut - Nyloc 307-220-053 More Info >	$1.57
5	Washer - Flat 308-200-013 More Info >	$1.16
6	Inner Ring - Lock Bush 401-000-018 More Info >	$20.70
7	Hinge Bush - Outrigger 402-000-149 More Info >	$80.12
8	Lock Boss Clevis Plate - Rh - Outrigger 418-000-879 More Info >	$58.76
9	Side Outrigger Weldment - LH i See notes section for usage notes on this part 418-001-251	Price on Request
10	Operator Manual Tube - Screw Cap 450-000-073 More Info >	$45.45
11	Hinge Pin - Outrigger 419-000-066 More Info >	$420.36
12	Cap - Hinge Pin Ø 1 ¼" 209-000-009 More Info >	$11.27
